Seat Back Recliner Replacement - Rear

SEAT BACK RECLINER REPLACEMENT - REAR

REMOVAL PROCEDURE




1. Remove the rear seat back cushion.

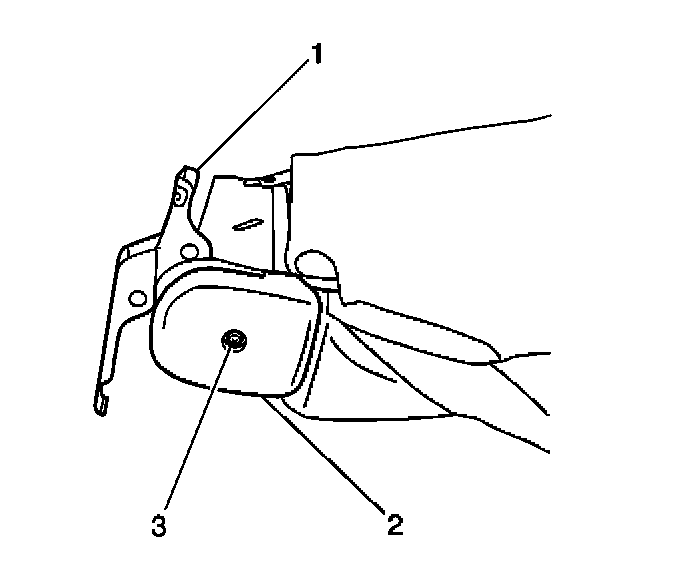

2. Remove the following components from the rear seat recliner (1):
2.1. The screw (3)
2.2. The rear seat recliner outside lower finish cover (2)

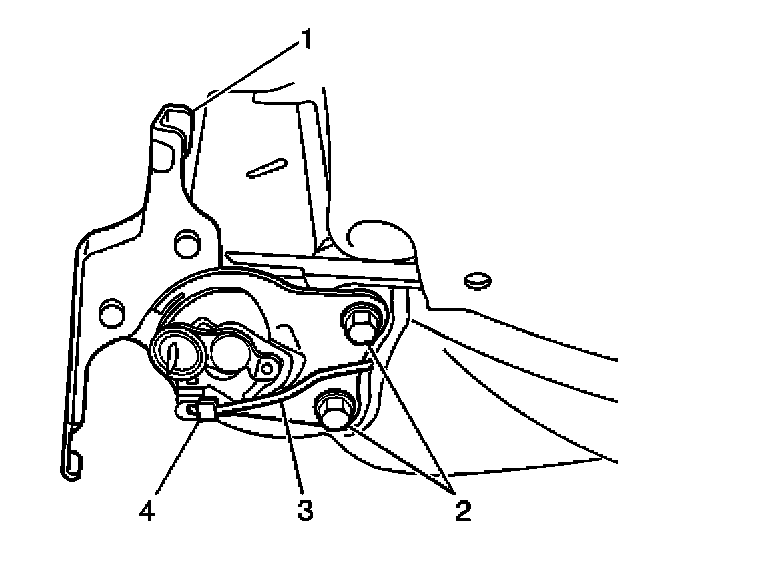

3. Open the rear seat hinge torque rod clamp (4). Remove the rear seat back hinge rod (3) from the seat recliner (1).
4. Remove the following components from the seat back cushion:
4.1. The 2 bolts (2)
4.2. The rear seat recliner (1)

INSTALLATION PROCEDURE

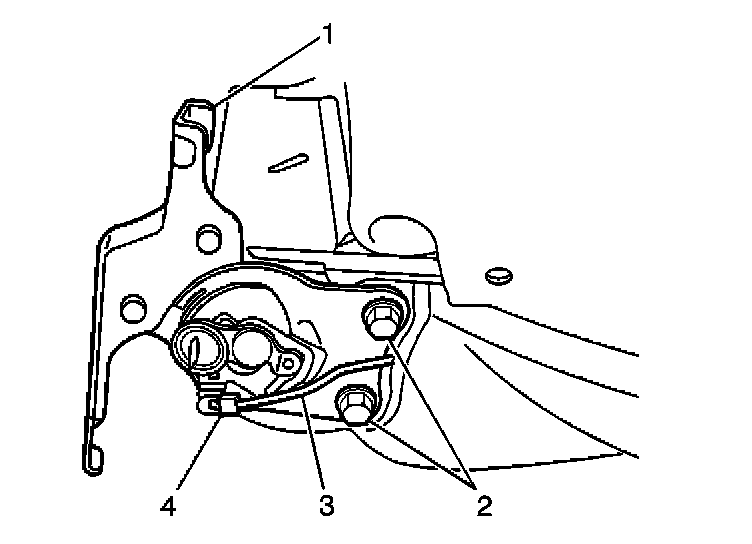

1. Install the rear seat recliner (1) to the seat back cushion. Secure the recliner with the 2 bolts (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the rear seat recliner bolts to 35 N.m (25 lb ft).

2. Install the rear seat back hinge rod (3) to the seat recliner (1). Close the rear seat hinge torque rod clamp (4).

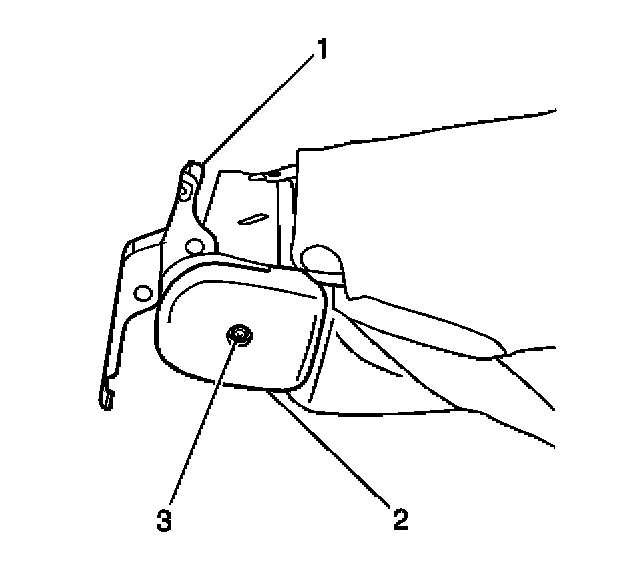

3. Install the rear seat recliner outside lower finish cover (2) to the rear seat recliner (1). Secure the cover with the screw (3).
4. Install the rear seat back cushion.
