Seat Back Cover Replacement - Front (Driver Side)

SEAT BACK COVER REPLACEMENT - FRONT (DRIVER SIDE)

REMOVAL PROCEDURE




1. Remove the front seat head restraint.
2. Remove the armrest.
3. Remove the lumbar support knob.

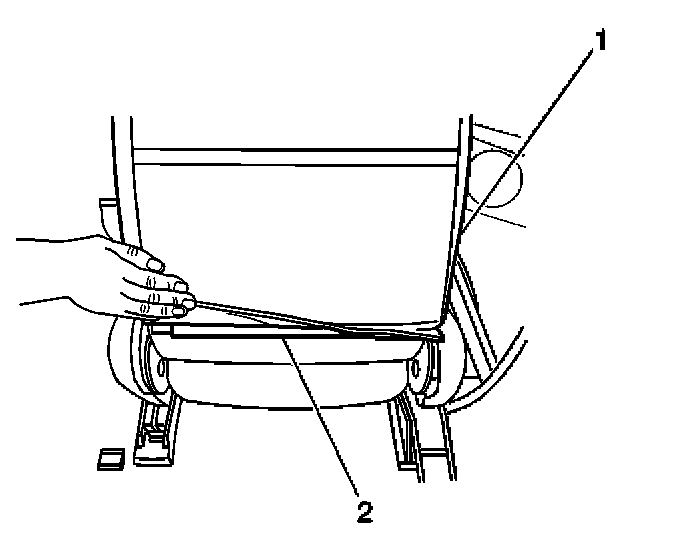

4. Release the J-retainer (2) on the bottom of the seat back cushion which secures the seat back cushion cover (1).

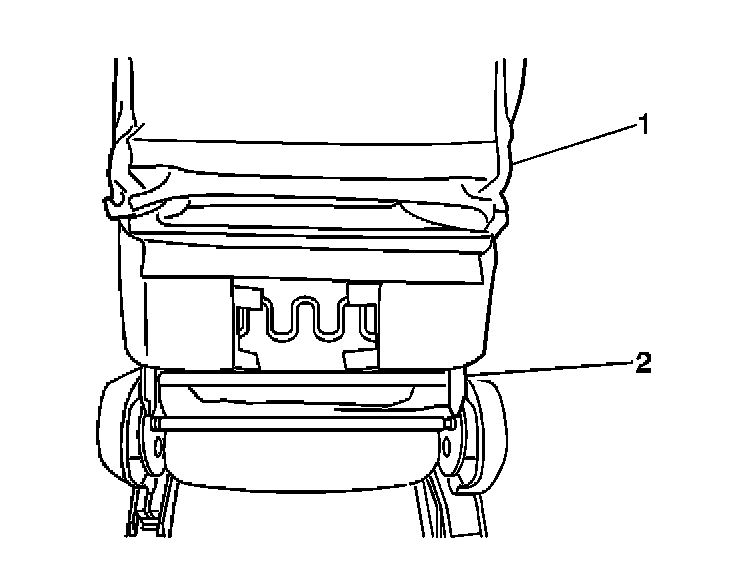

5. Roll up the seat back cushion cover (1).

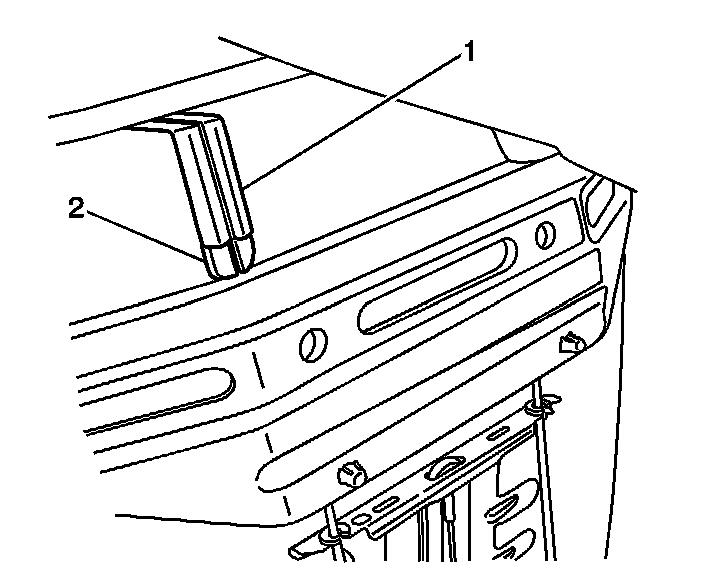

6. Squeeze the bottom of the head restraint guides (2) and pull up to remove from seat back frame (1).
7. Remove the seat back cushion cover from the seat back cushion.

INSTALLATION PROCEDURE

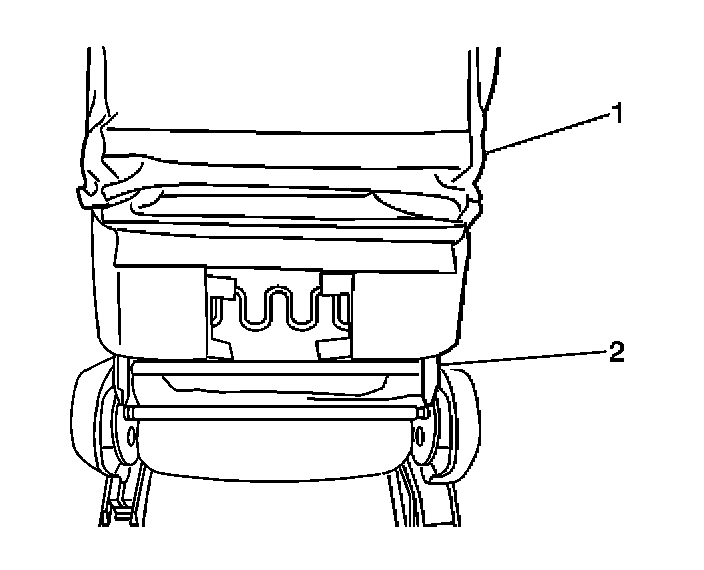

1. Roll the seat back cushion cover (1) onto the seat back cushion (2).

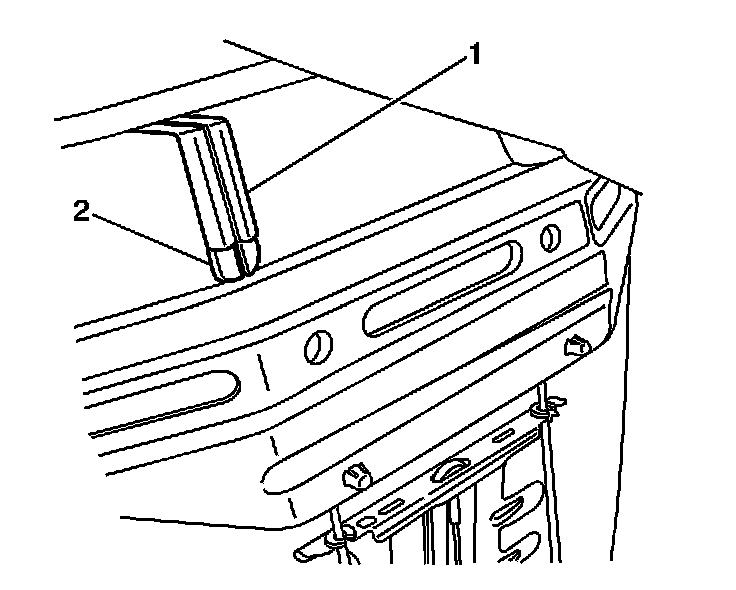

2. Install the head restraint guides (2) to the seat back frame (1), by pushing down until it clips in.

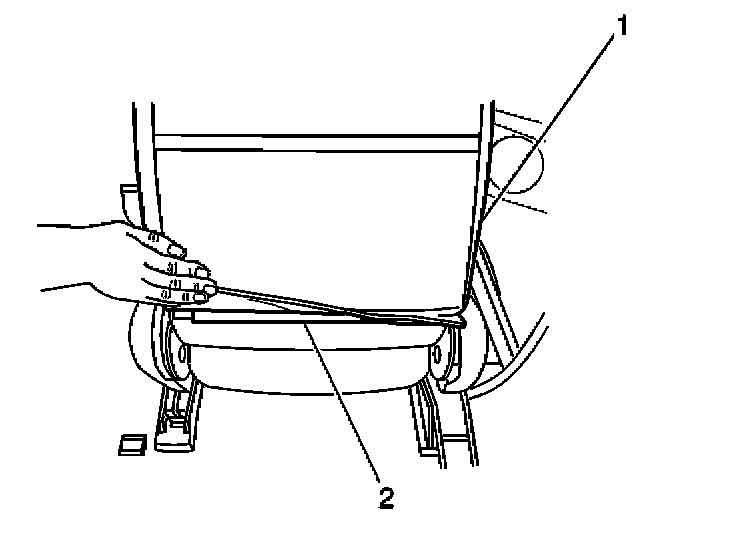

3. Secure the J-retainer (2) on the bottom of the seat back cushion which secures the seat back cushion cover (1).
4. Install the armrest.
5. Install the lumbar support knob.
6. Install the front seat head restraint.
