Driver Footrest Replacement

Driver Footrest Replacement

Removal Procedure

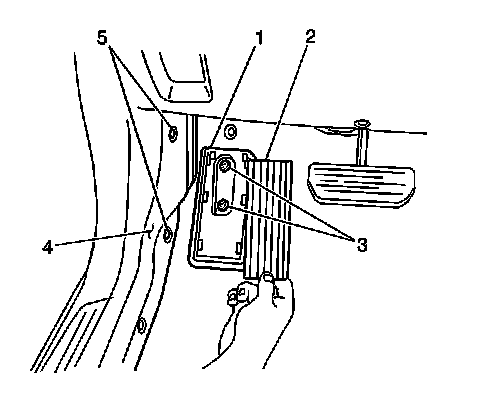

1. Remove the left front foot rest cover (2) in order to gain access to the front floor foot rest mounting bolts (3).
2. Remove the following components from the vehicle:

1. The 2 mounting bolts (3)
2. The front floor foot rest (1)

Installation Procedure





Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the front floor foot rest (1) to the vehicle. Secure the foot rest with the 2 mounting bolts (3).

Tighten the front floor foot rest mounting bolts to 10 Nm (7.5 lb ft).

2. Install the left front foot rest cover (2) to the front floor foot rest (1).
