Door Sill Plate Replacement - Front (4 Door)

DOOR SILL PLATE REPLACEMENT - FRONT (4 DOOR)

REMOVAL PROCEDURE

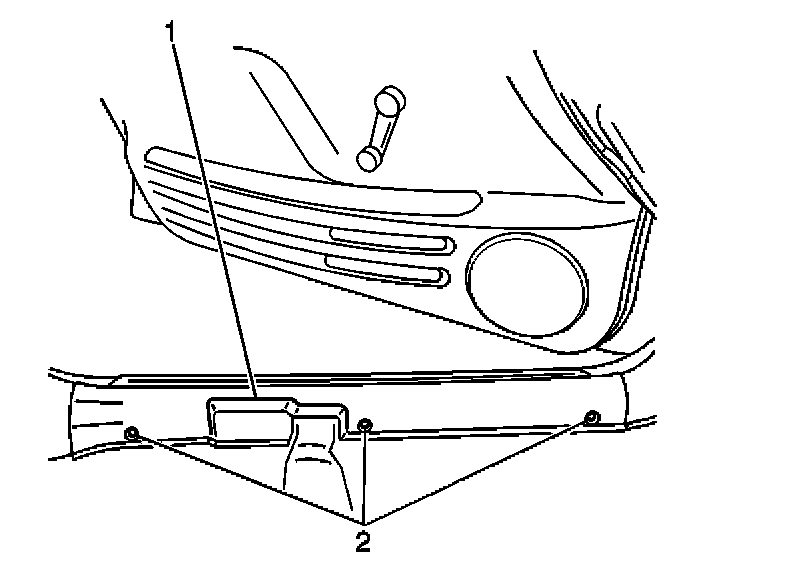

Remove the following components from the vehicle:
1. The 3 plastic retainers (2)
2. The front side door sill trim plate (1)

INSTALLATION PROCEDURE




Install the front side door sill trim plate (1) to the vehicle. Secure the trim plate with the 3 plastic retainers (2).
