Door Sill Plate Replacement - End Gate

DOOR SILL PLATE REPLACEMENT - END GATE

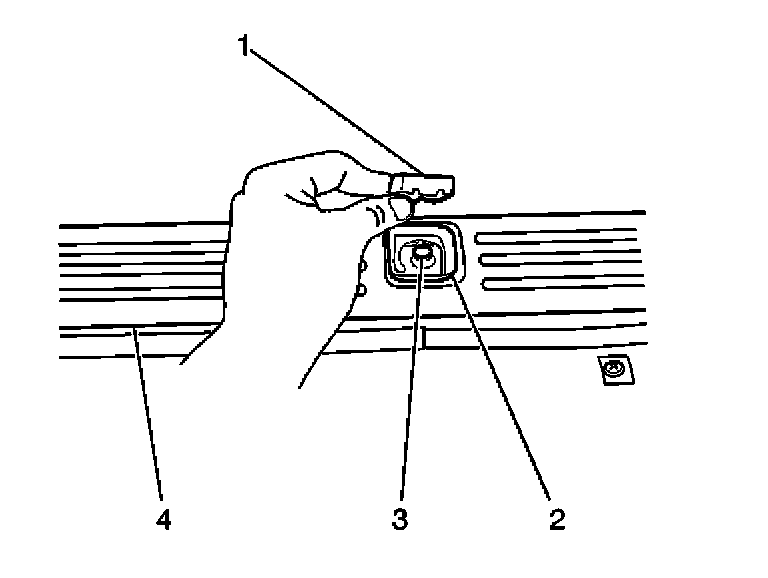

REMOVAL PROCEDURE




1. Remove the rear sill child seat anchor brackets.
2. Remove the rear floor rear trim plate (4) from the vehicle by gently disengaging the plastic retainers.

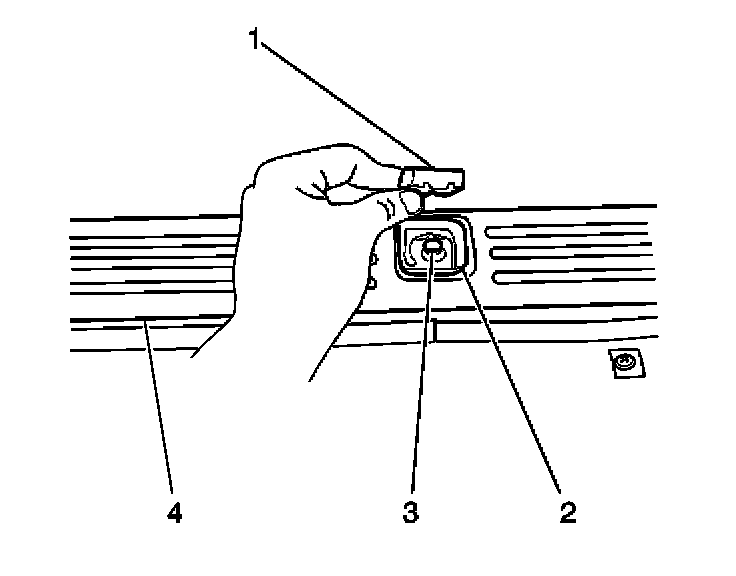

INSTALLATION PROCEDURE




1. Install the rear floor rear trim plate (2) to the vehicle. Ensure that the plastic retainers are completely engaged.
2. Install the rear sill child seat anchor brackets.
