Roof Rail Rear Assist Handle Replacement

Roof Rail Rear Assist Handle Replacement

Removal Procedure

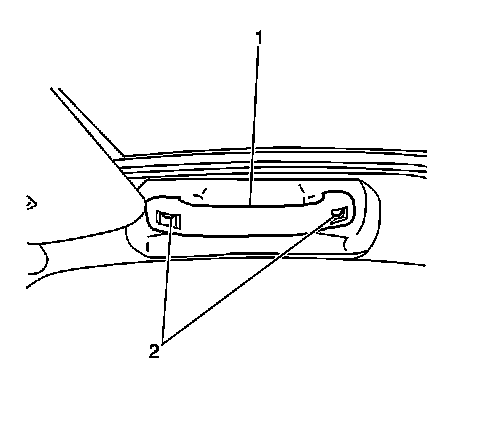

1. Remove the assist handle trim covers.
2. Remove the 2 screws (2) which secure the assist handle (1).
3. Remove the assist handle (1) from the vehicle.

Installation Procedure




1. Install the assist handle (1) to the vehicle. Secure the handle with the 2 screws (2).
2. Install the assist handle trim covers.
