Instrument Panel (IP) - Trim Panel Replacement - Center

Instrument Panel Center Trim Panel Replacement

Removal Procedure




1. Remove the ashtray from the guide by depressing the spring-loaded tab and pulling the ashtray rearward.

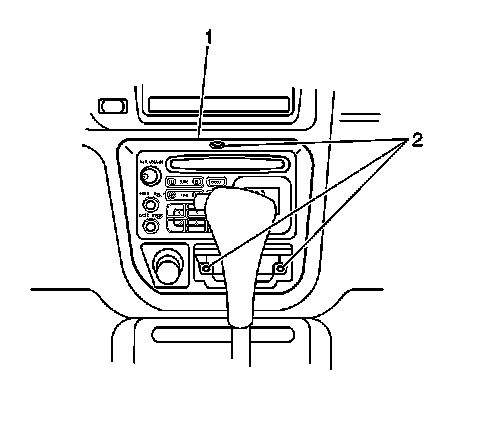

2. Remove the following components from the instrument panel:

1. The 3 screws (2)
2. The IP accessory center trim plate (1)

Installation Procedure




1. Install the IP accessory center trim plate (1) to the instrument panel. Secure the plate with 3 screws (2).
2. Slide the ashtray into the guide.
