Instrument Panel (IP) - Air Deflector/Louver - Left

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - LEFT

REMOVAL PROCEDURE

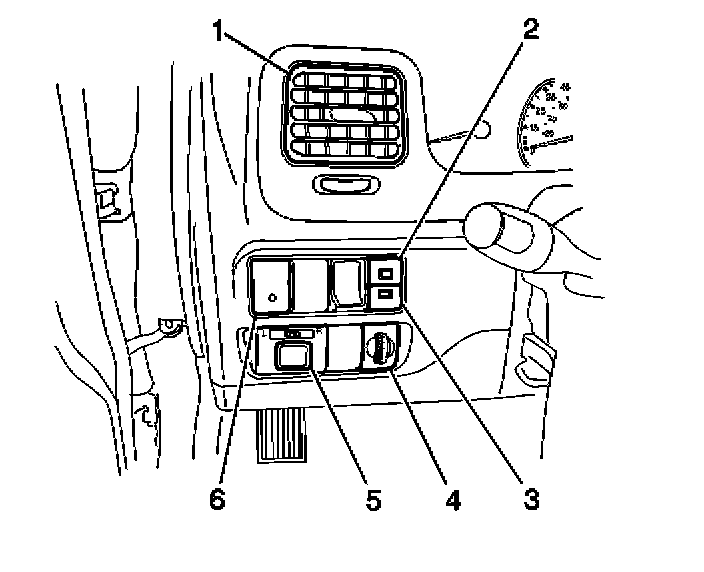

1. Using a taped flat bladed tool, gently pry and release the tab on each side of the left vent louver (1).
2. Remove the left vent louver (1) from the instrument cluster trim plate.

INSTALLATION PROCEDURE

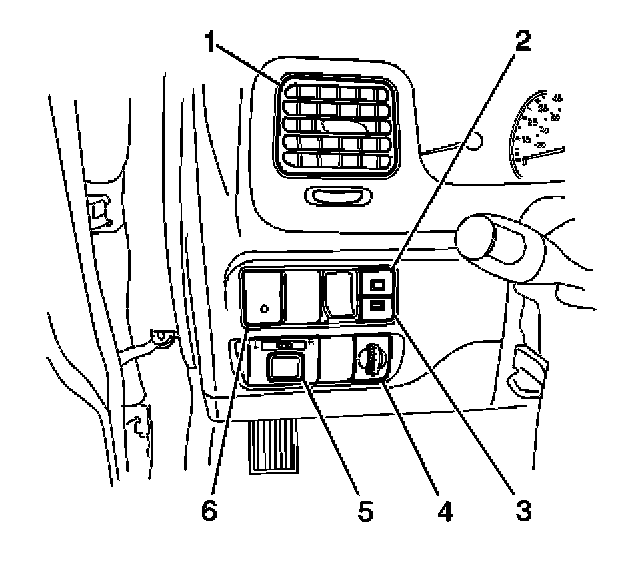

Install the left vent louver (1) to the instrument cluster trim plate, by inserting straight in, until the tabs engage.
