Zone 5

1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.

IMPORTANT: Perform this procedure in order to prevent deployment of the air bags from the reserve energy supply power.

2. Remove the key from the ignition switch.
3. Remove the AIR BAG fuse (3) from the inline fuse holder, which is located near the base of the steering column.

IMPORTANT: With the AIR BAG fuse removed and the ignition switch in the ON position, the AIR BAG warning indicator illuminates. This is a normal operation and does not indicate a SIR system malfunction.

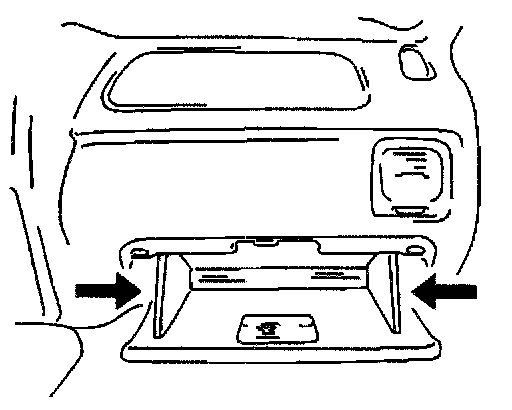

4. Pull out the I/P compartment while pushing in the RH and LH stoppers.

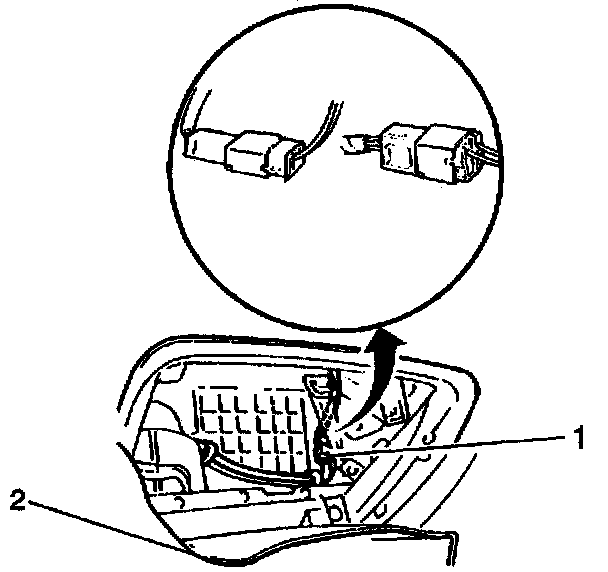

5. Remove the CPA and the yellow 2-way connector from the inflatable restraint I/P module pigtail (1).
Release then unlock the connector.
