Ash Tray: Service and Repair

Ashtray Replacement

Removal Procedure




1. Remove the IP center trim plate. Refer to Instrument Panel Center Trim Panel Replacement (Instrument Panel (IP) - Trim Panel Replacement - Center).

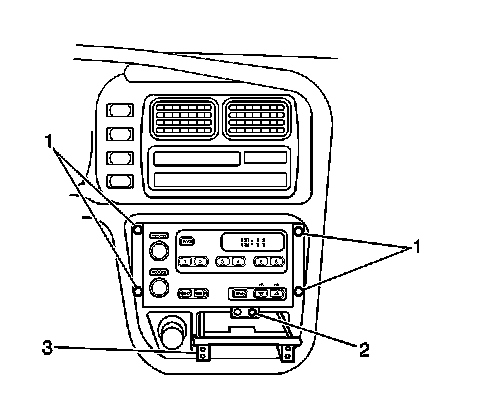

2. Remove the ashtray guide (3) from the instrument panel.

Installation Procedure




1. Install the ashtray guide (3) to the instrument panel.
2. Install the IP center trim plate. Refer to Instrument Panel Center Trim Panel Replacement (Instrument Panel (IP) - Trim Panel Replacement - Center).
