Lower Grille Molding Replacement

Lower Grille Molding Replacement

Removal Procedure




1. Remove the radiator grille. Refer to Grille Replacement (Grille Replacement).

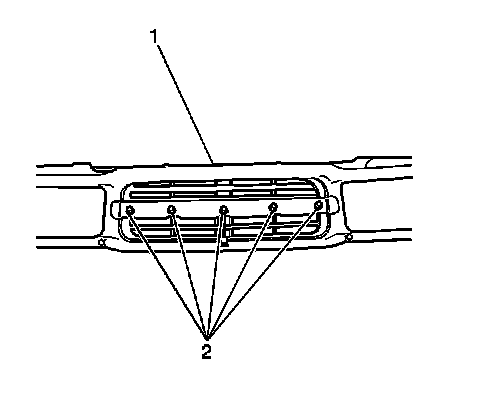

2. Remove the following components from the radiator grille (1):

1. The 5 screws (2)
2. The radiator grille molding

Installation Procedure




1. Install the radiator grille molding to the radiator grille (1). Secure the molding with the 5 screws (2).
2. Install the radiator grille. Refer to Grille Replacement (Grille Replacement).
