Front Suspension Support Brace Replacement

Front Suspension Support Brace Replacement

Removal Procedure





1. Partially raise and support the vehicle. Refer to Vehicle Lifting. Allow the suspension to hang free.

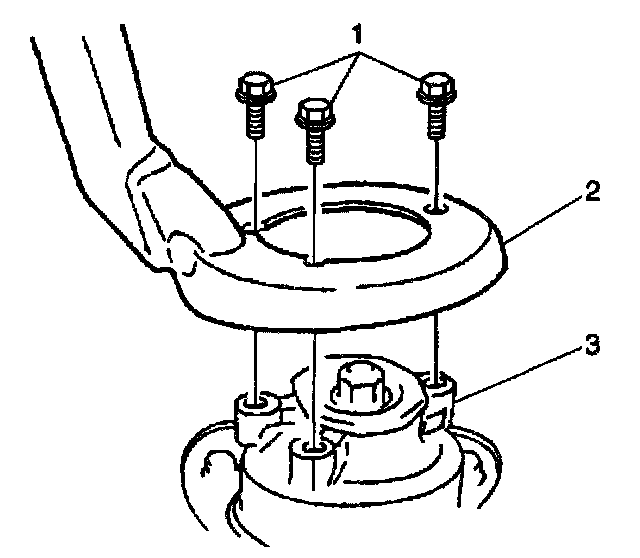

2. Remove the 3 bolts (1) and the front suspension support brace (2).

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the front suspension support brace (2). Secure with 3 bolts (1).
- Tighten the bolts to 50 Nm (36.5 ft. lbs.).
2. Lower the vehicle.
