Removal and Replacement

Wheelhouse Panel Replacement

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
2. Remove the following components from the vehicle:

* The 10 plastic retainers

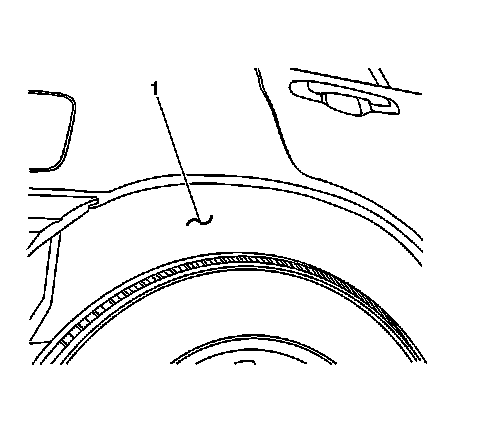

* The rear wheelhouse panel liner (1)

Installation Procedure




1. Install the rear wheelhouse panel liner (1) to the vehicle. Secure the liner with the 10 plastic retainers.
2. Lower the vehicle.
