Body Side Lower Front Molding Bracket Replacement (LT Models)

Body Side Lower Front Molding Bracket Replacement (LT Models)

Removal Procedure




1. Remove the rear body side lower molding. Refer to Molding Replacement - Rear Body Side Lower (LT Models) (Molding Replacement - Rear Body Side Lower (LT Models)).

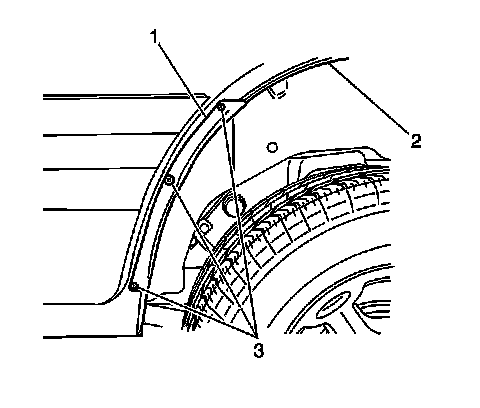

2. Drill out and remove the 3 rivets (3) that retain the body side lower molding bracket (1).
3. Remove the body side lower molding bracket (1) from the quarter panel (2).

Installation Procedure




1. Install the body side lower molding bracket (1) to the quarter panel (2). Secure the bracket with 3 rivets (3).
2. Install the rear body side lower molding. Refer to Molding Replacement - Rear Body Side Lower (LT Models) (Molding Replacement - Rear Body Side Lower (LT Models)).
