Hood Insulator / Pad: Service and Repair

Hood Insulator Replacement

Removal Procedure

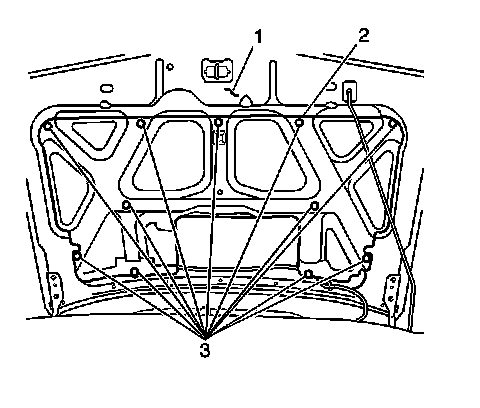

1. Raise and suitably support the hood (1).
2. Remove the following components from the hood (1):

* The 11 plastic retainers (3)
* The hood insulator (2)

Installation Procedure




1. Install the hood insulator (2) to the hood (1). Secure the insulator with the 11 plastic retainers (3).
2. Lower the hood (1).
