Removal and Replacement

Fuel Tank Filler Door Replacement

Removal Procedure

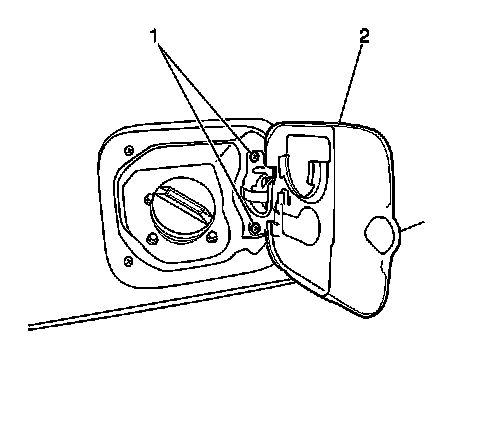

1. Remove the 2 screws (1) which secure the fuel tank filler door (2).
2. Remove the fuel tank filler door (2) from the vehicle.

Installation Procedure





Install the fuel tank filler door (2) to the vehicle. Secure the fuel filler door with 2 screws (1).
