Cover Replacement - Radio Opening

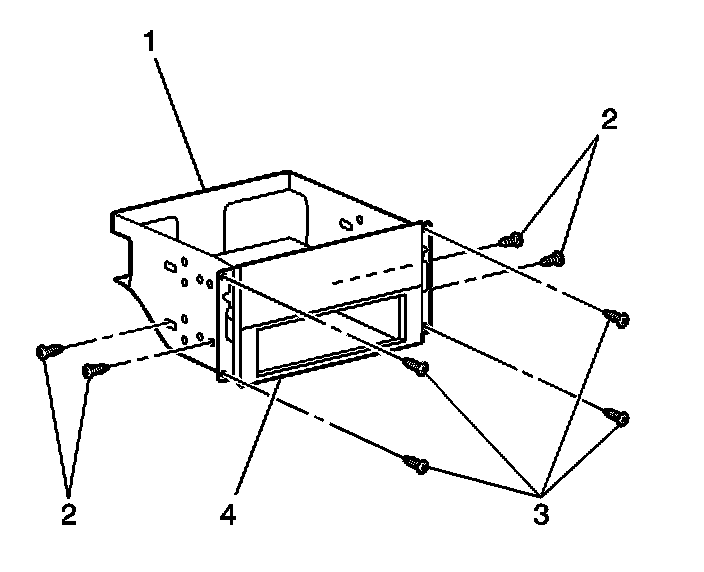

COVER REPLACEMENT - RADIO OPENINGREMOVAL PROCEDURE
1. Remove the IP center trim plate.
2. Remove the 4 screws (3) which secure the radio opening cover (1) to the instrument panel.
3. Remove the radio opening cover (1) from the vehicle.
4. Remove the 4 screws (2) which secure the radio opening cover faceplate (4) to the radio opening cover (1), if necessary.
5. Remove the radio opening cover faceplate (4) from the radio opening cover (1), if necessary.

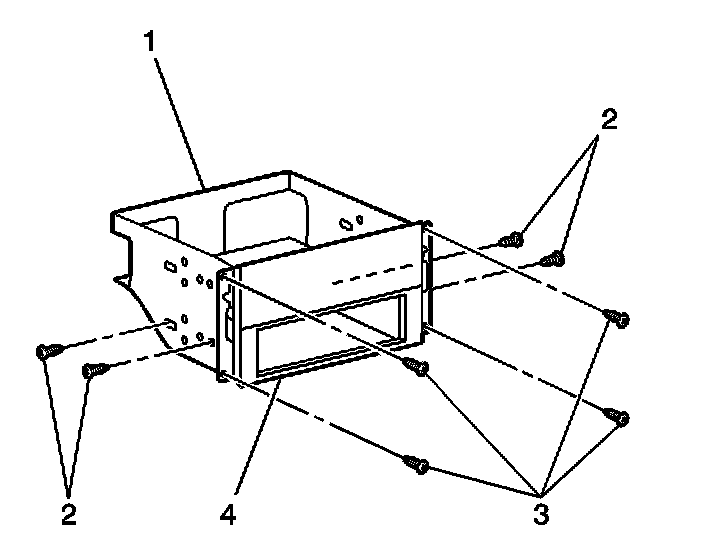

INSTALLATION PROCEDURE
1. Install the radio opening cover faceplate (4) to the radio opening cover (1), if removed. Secure the faceplate (4) with the 4 screws (2).
2. Install the radio opening cover (1) to the instrument panel. Secure the radio opening cover (1) with the 4 screws (3).
3. Install the IP center trim plate.
