Home >> Chevy Truck >> 2004 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Diagrams

Keyless Entry: Diagrams

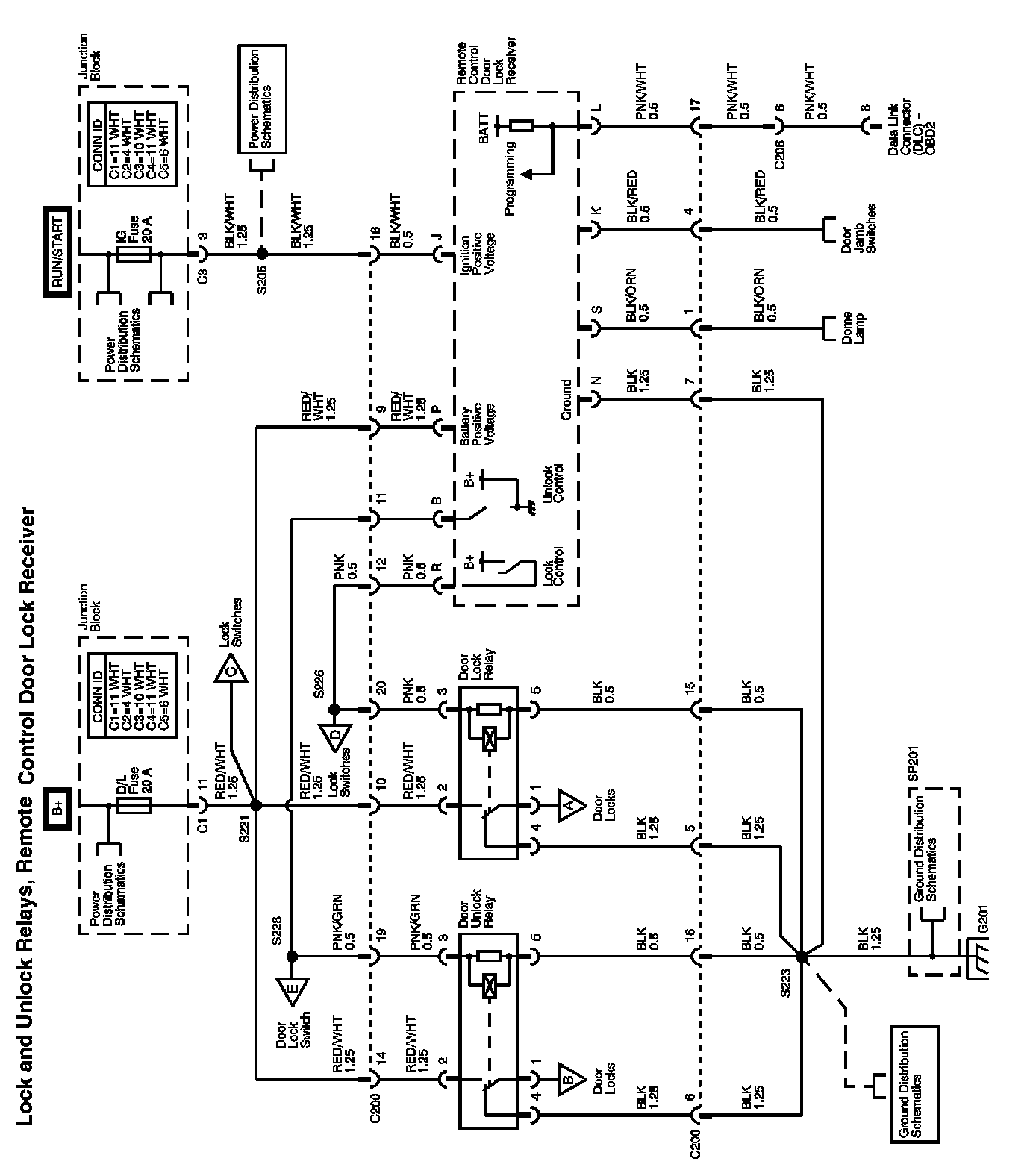

Keyless Entry Diagram 1:

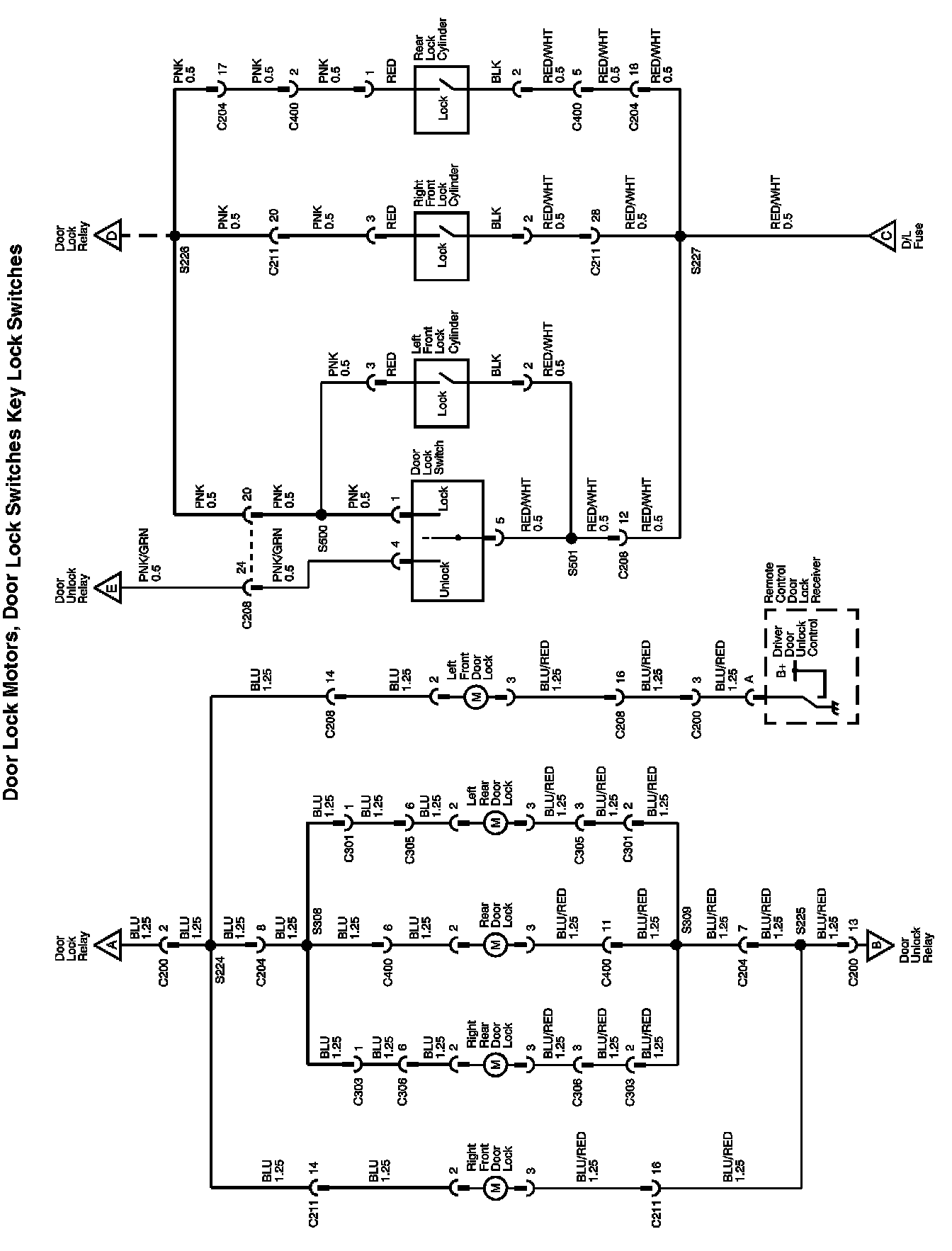

Keyless Entry Diagram 2:
