Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Wiper and Washer Systems >> Relays and Modules - Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

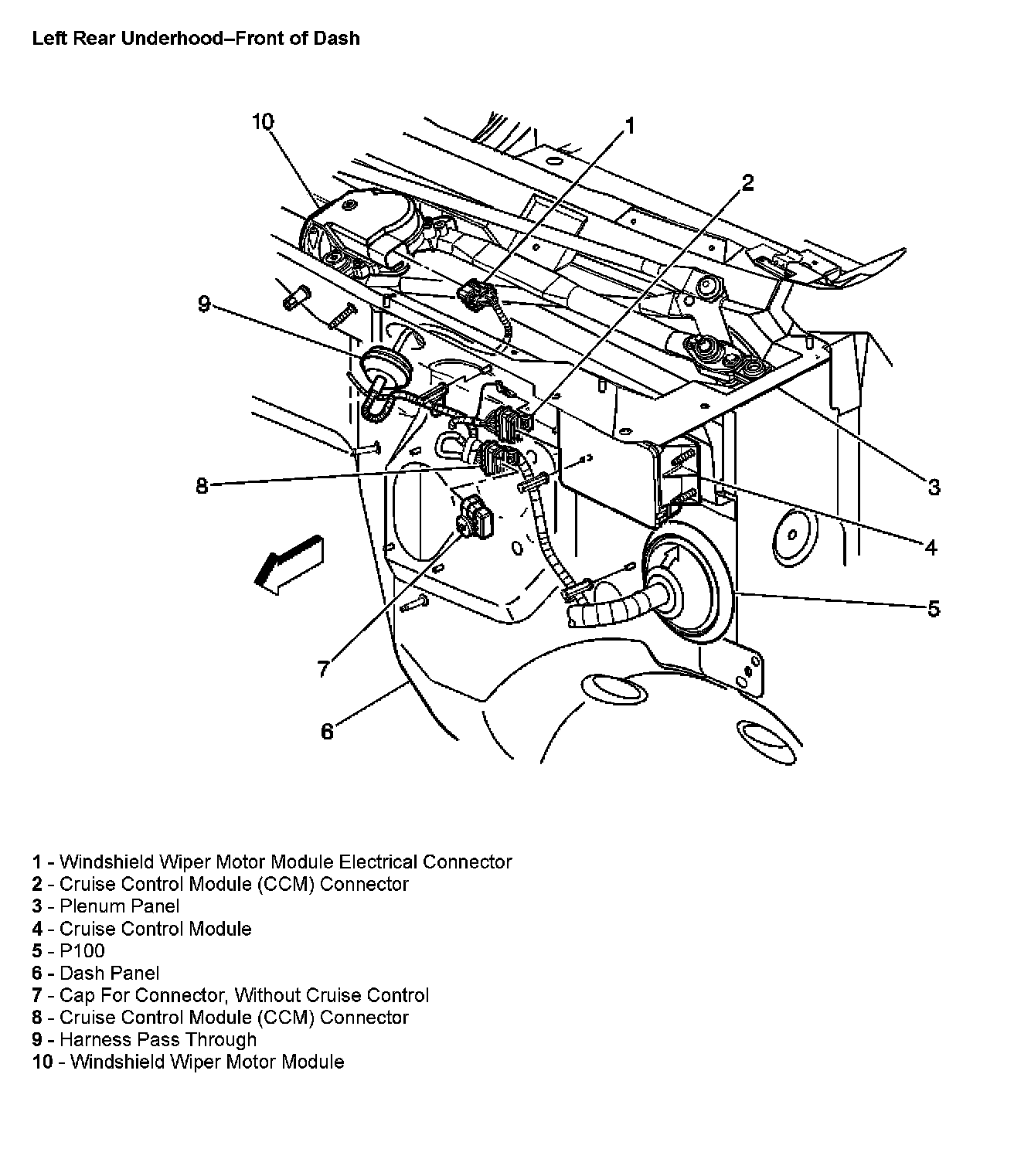

Left Rear Underhood - Front Of Dash:



Liftgate (With RPO Code E52):
