Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Diagrams >> Exploded Views >> Transfer Case - BW 4482-NR4 >> Internal Components

Internal Components

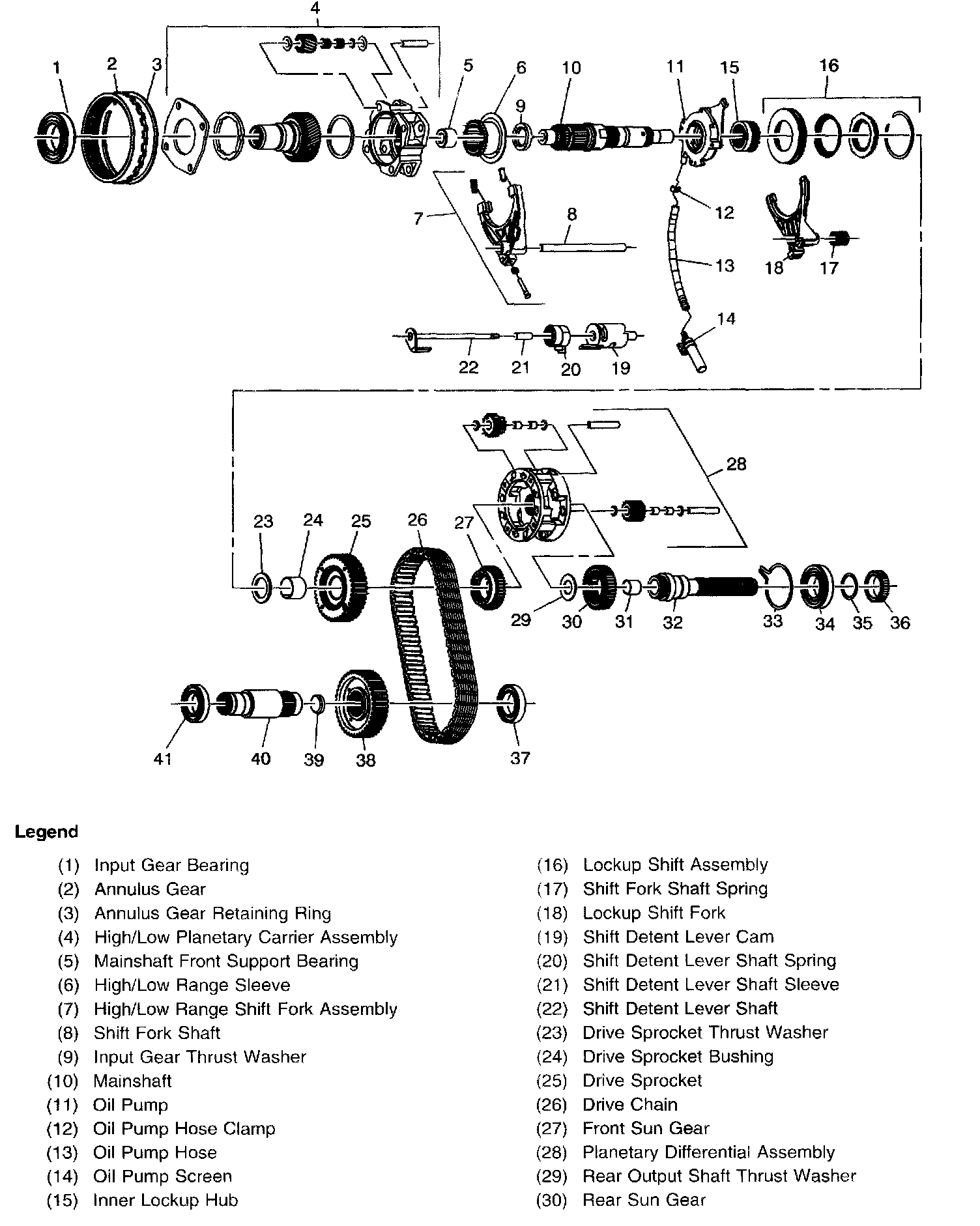

Transfer Case Disassembled View

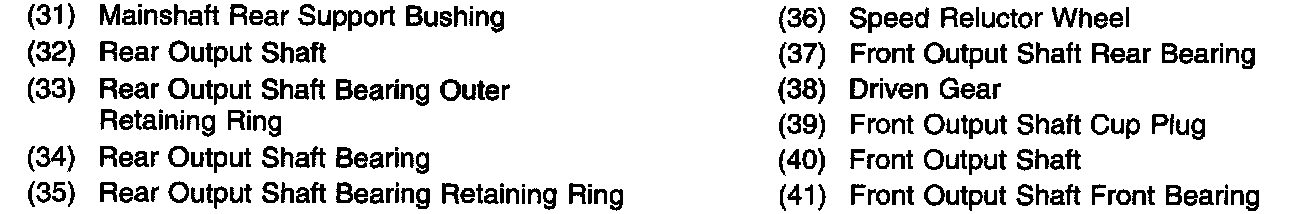

Internal Components
