Suburban 1/2 Ton 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>
Compartment View
>>
RR Side of the Passenger Compartment Components
RR Side of the Passenger Compartment Components

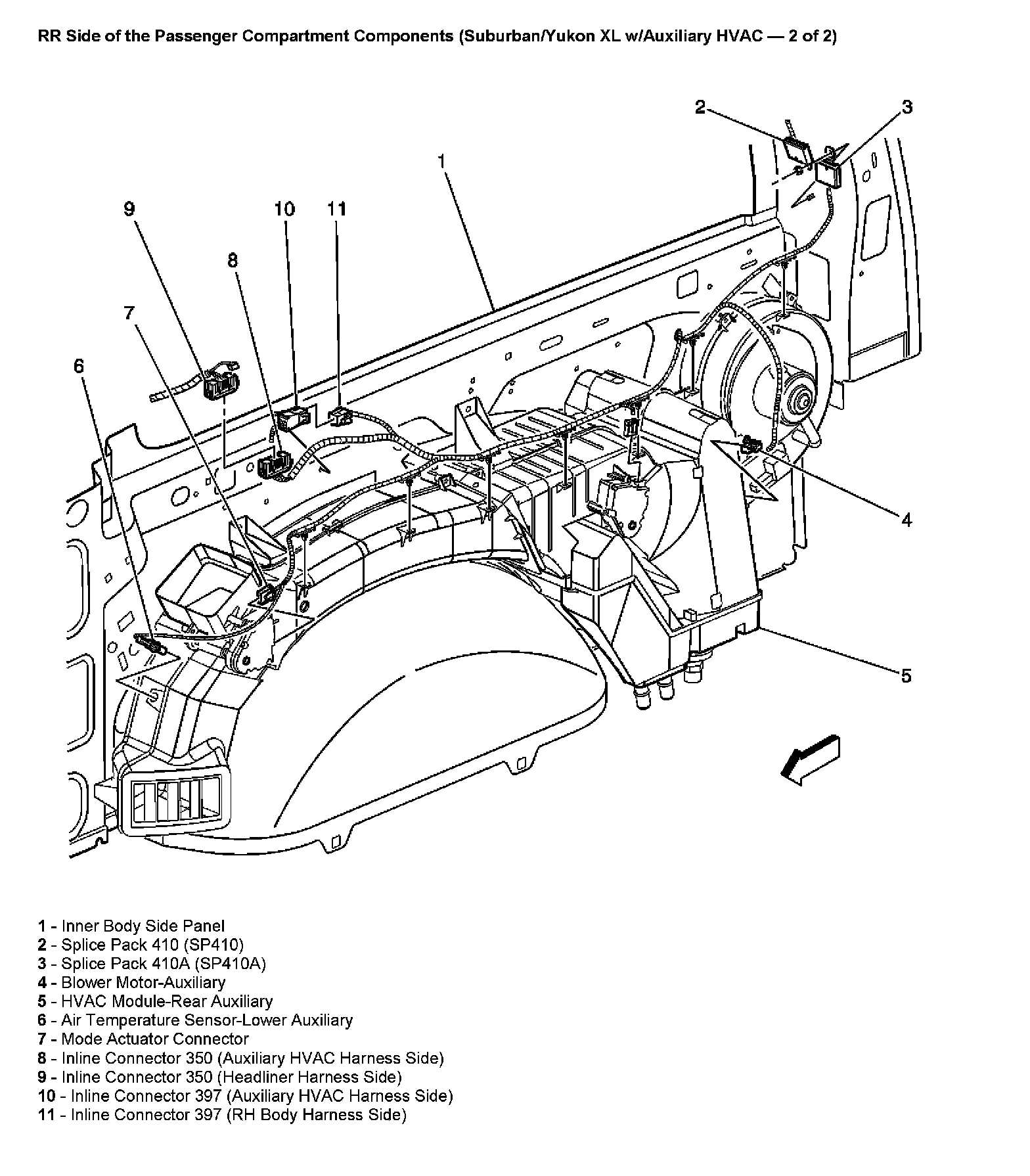

RR Side Of The Passenger Compartment Components (Auxillary HVAC - 2 Of 2):
