Transfer Case - BW 4482-NR4

Transfer Case Speed Sensor Replacement

Removal Procedure





1. Remove the transfer case shield, if equipped.

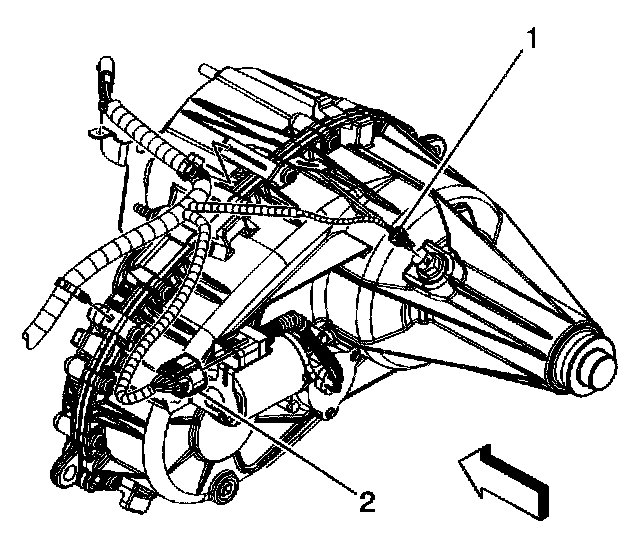

2. Disconnect the speed sensor electrical connector (1).

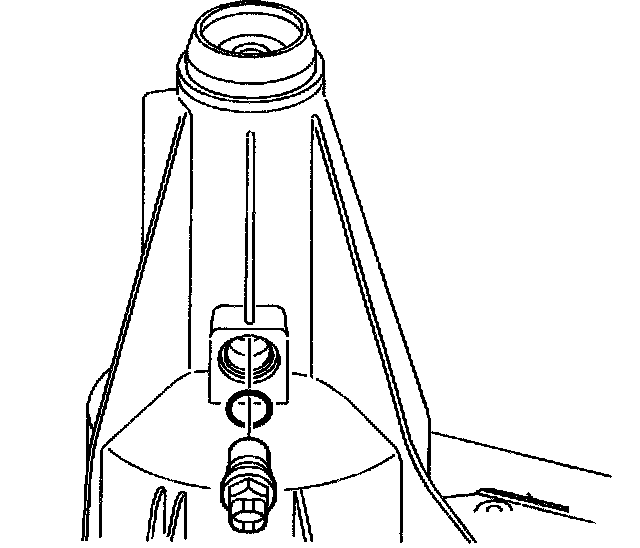

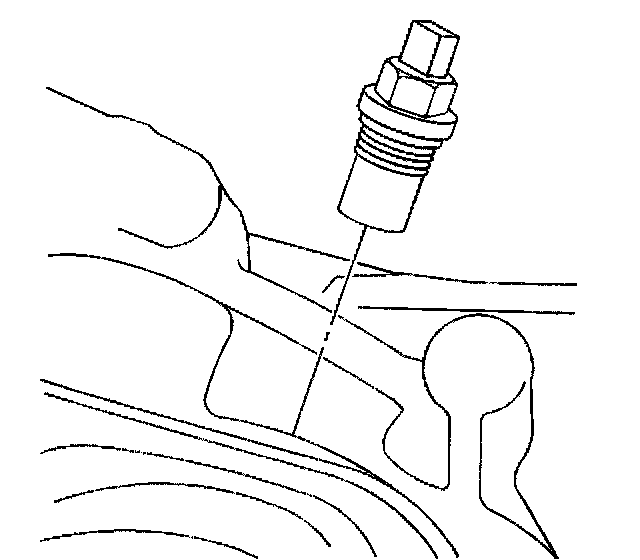

3. Remove the speed sensor and O-ring seal.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the speed sensor with a NEW O-ring seal.
^ Tighten the sensor to 17 Nm (13 ft. lbs.).

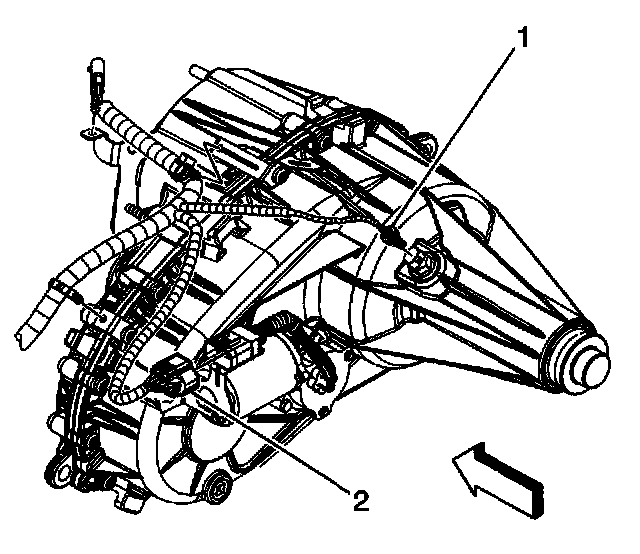

2. Connect the speed sensor electrical connector (1).
3. Install the transfer case shield, if equipped.
