Transfer Case - BW 4481-NR3

Transfer Case Speed Sensor Replacement

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting in Service Precautions.

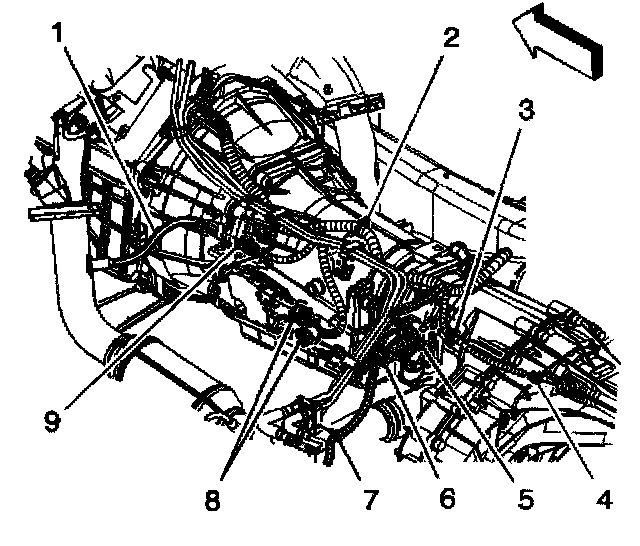

2. Disconnect the speed sensor electrical connector (4).

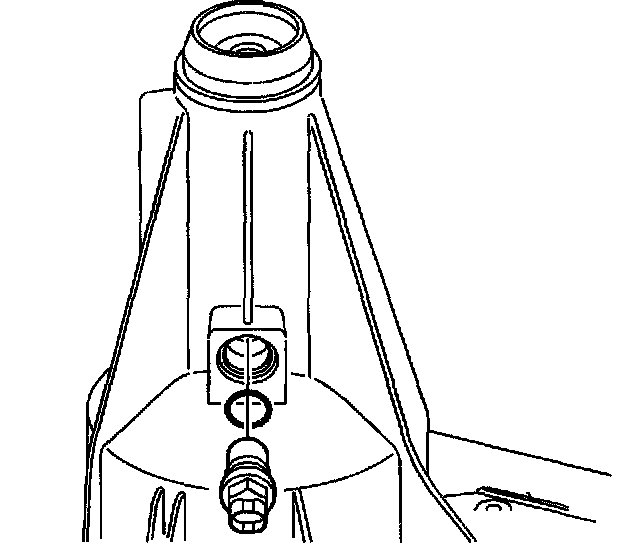

3. Remove the speed sensor and O-ring.
4. Discard the O-ring.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

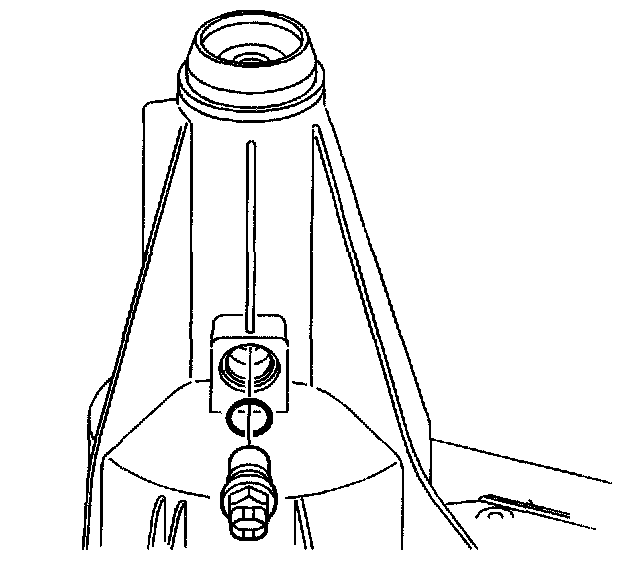

1. Install the speed sensor with a NEW O-ring.
^ Tighten the sensor to 17 Nm (13 ft. lbs.).





2. Connect the speed sensor electrical connector (4).
3. Lower the vehicle.
