Transmission Speed Sensor: Diagrams

Automatic Transmission Related Connector End Views

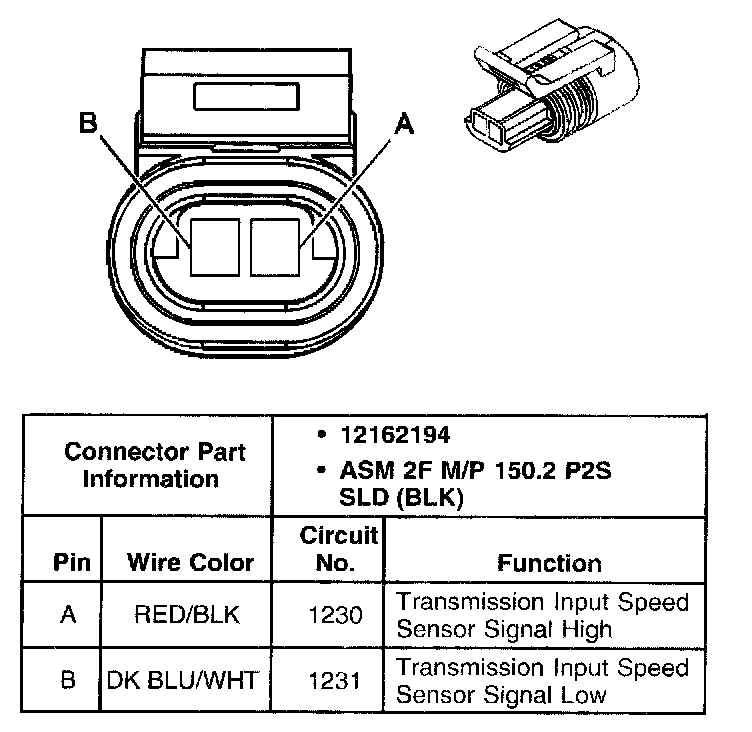

Automatic Transmission Input Shaft Speed (AT INS) Sensor Connector

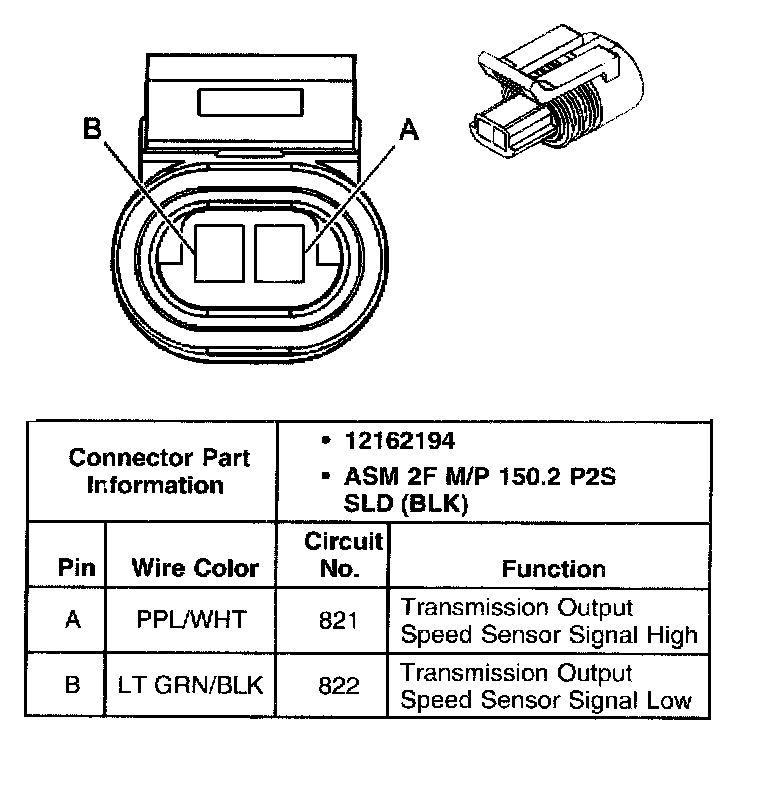

Automatic Transmission Output Shaft Speed (AT OSS) Sensor Connector
