Inflatable Restraint Side Impact Sensor (SIS)
Inflatable Restraint Side Impact Sensor (SIS)

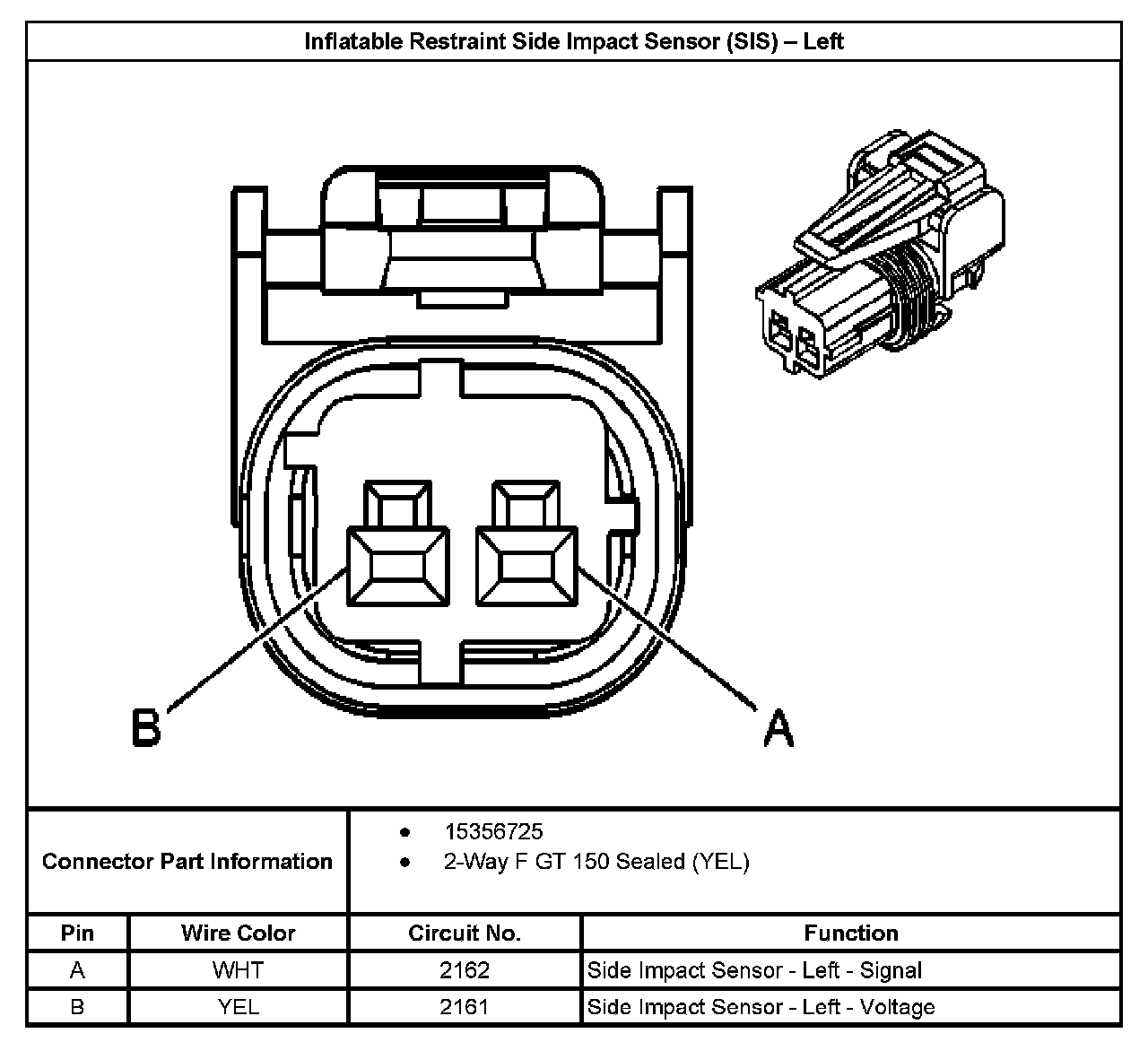

Inflatable Restraint Side Impact Sensor (SIS)-Left:

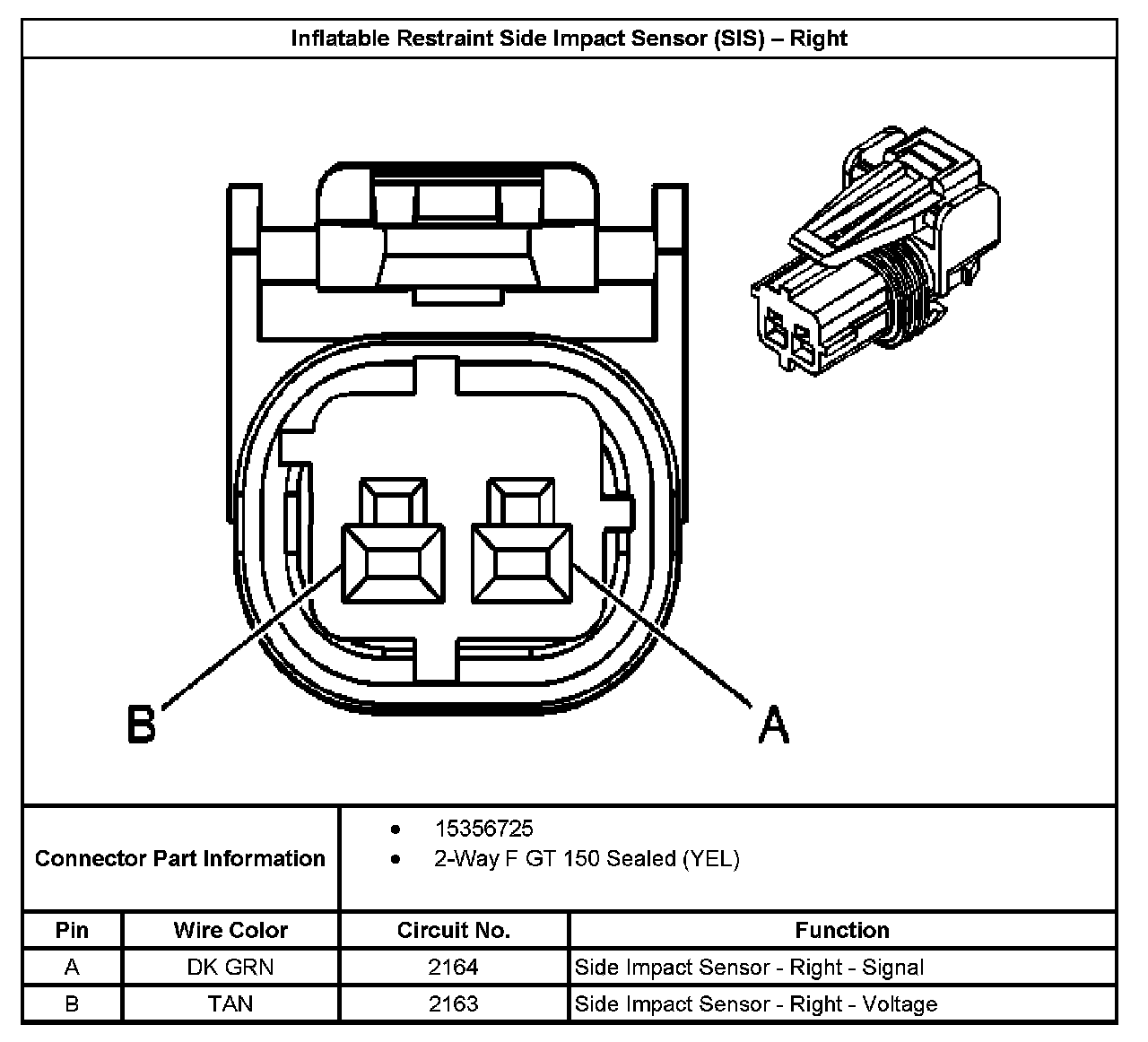

Inflatable Restraint Side Impact Sensor (SIS)-Right:
