Fog/Driving Lamp Switch: Locations

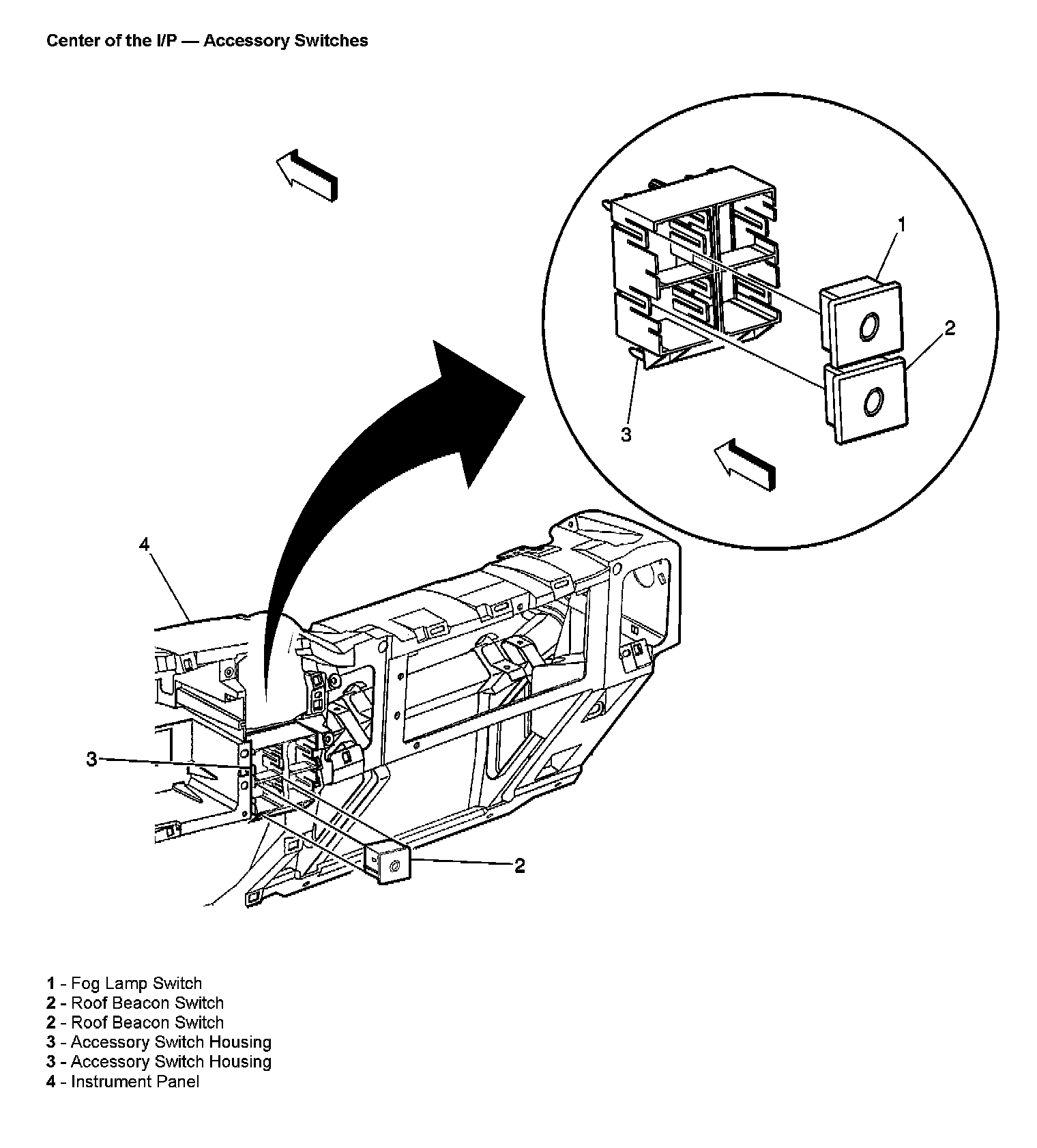

Center Of The I/P - Accessory Switches:

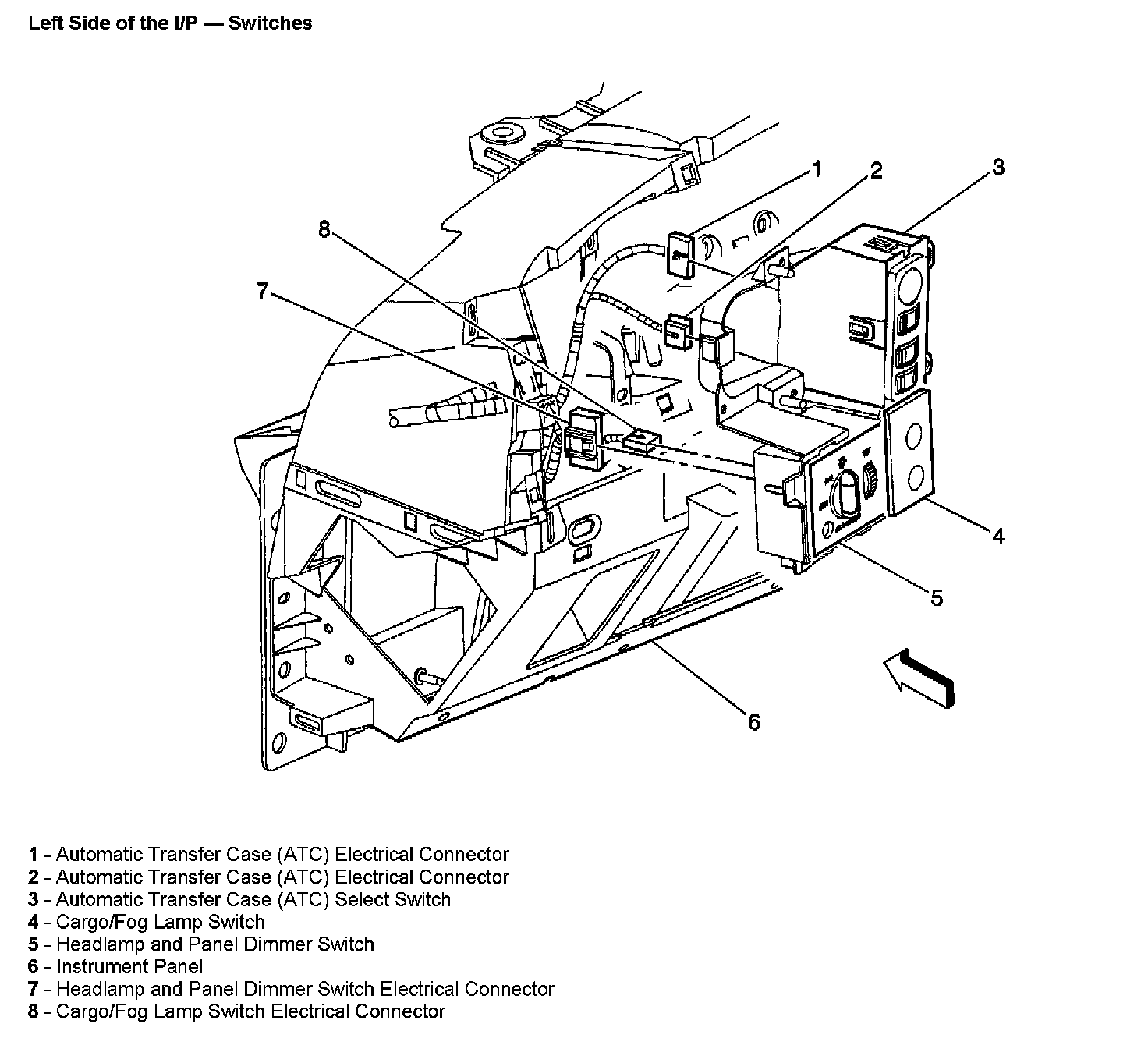

Left Side Of The I/P - Switches:
