Chevy Truck
>>
2004
>>
Suburban 1/2 Ton 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Door Switch
>>
Diagrams
>>
Mini Wedge (Door Jamb Switch) - RR
Mini Wedge (Door Jamb Switch) - RR

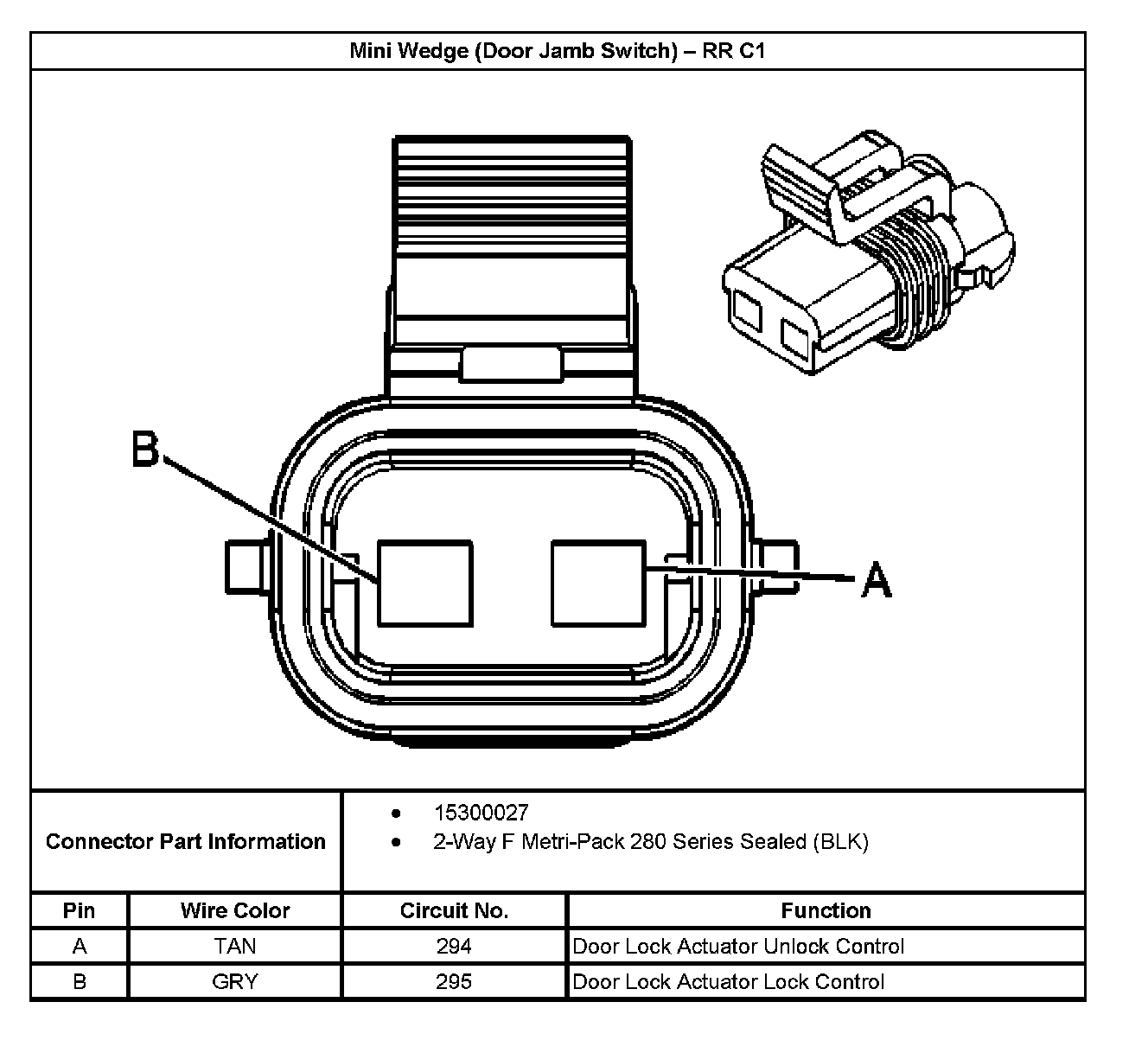

Mini Wedge (Door Jamb Switch) - RR C1:

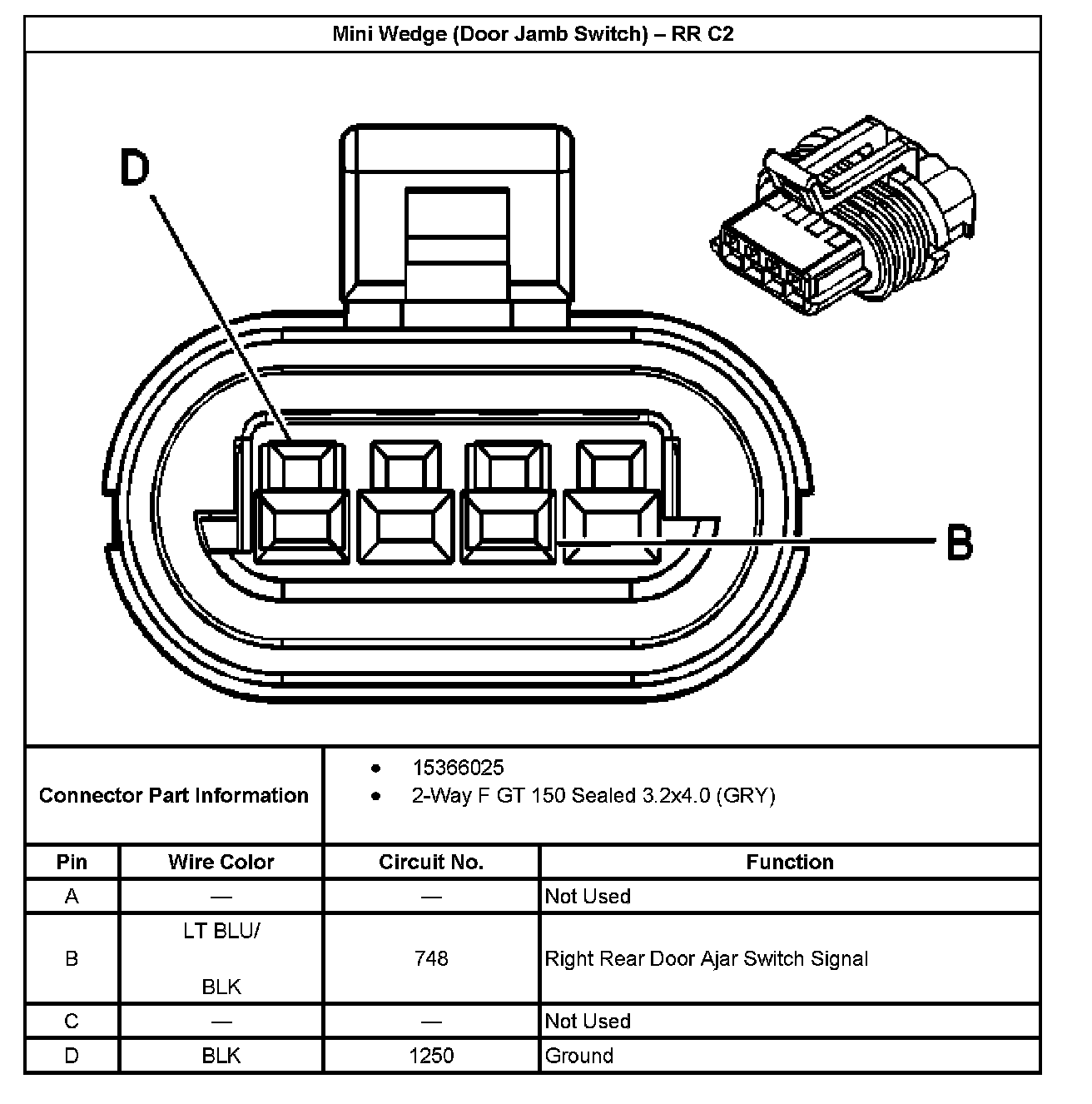

Mini Wedge (Door Jamb Switch) - RR C2:

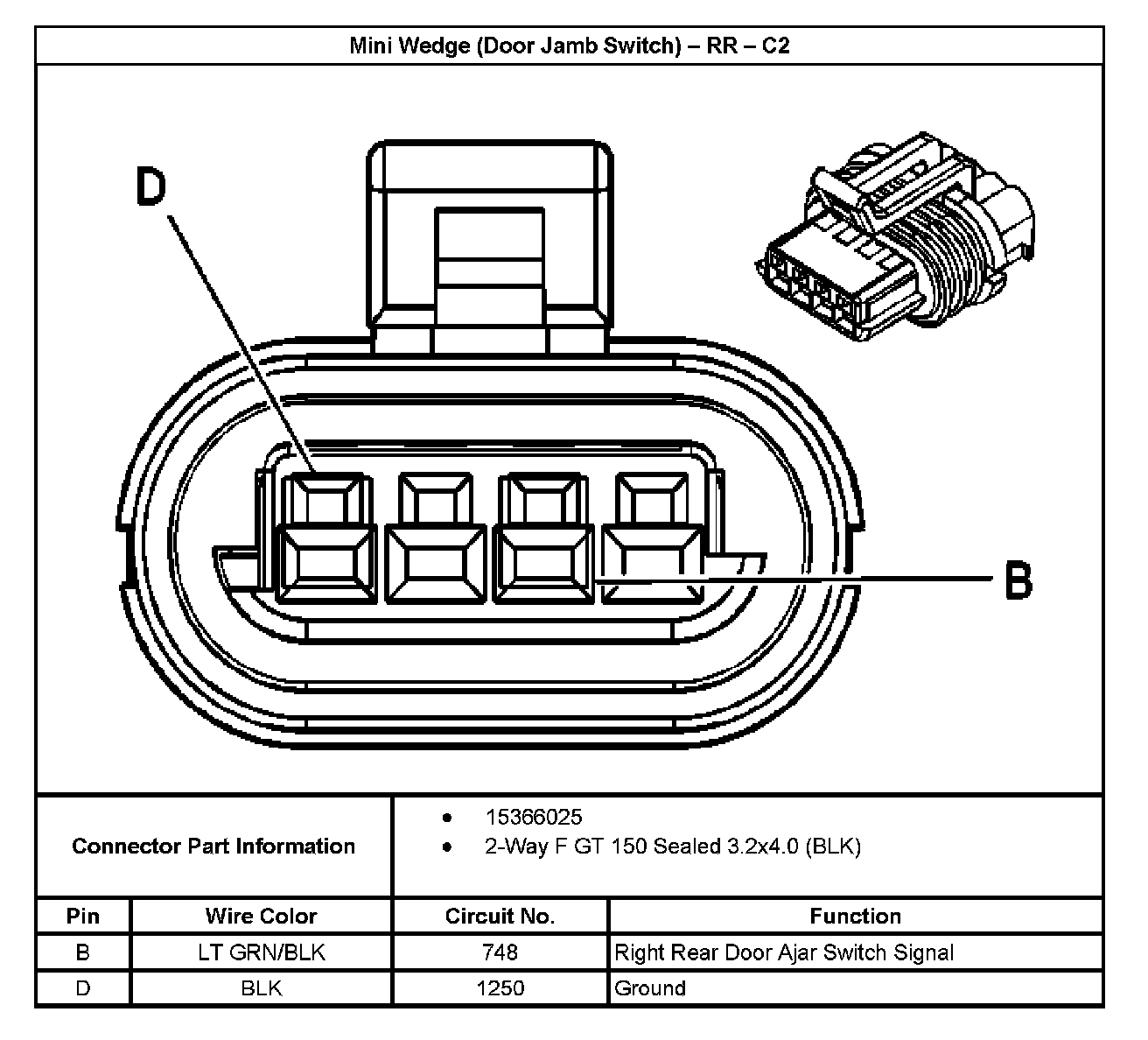

Mini Wedge (Door Jamb Switch) - RR - C2:
