Solar Sensor: Locations

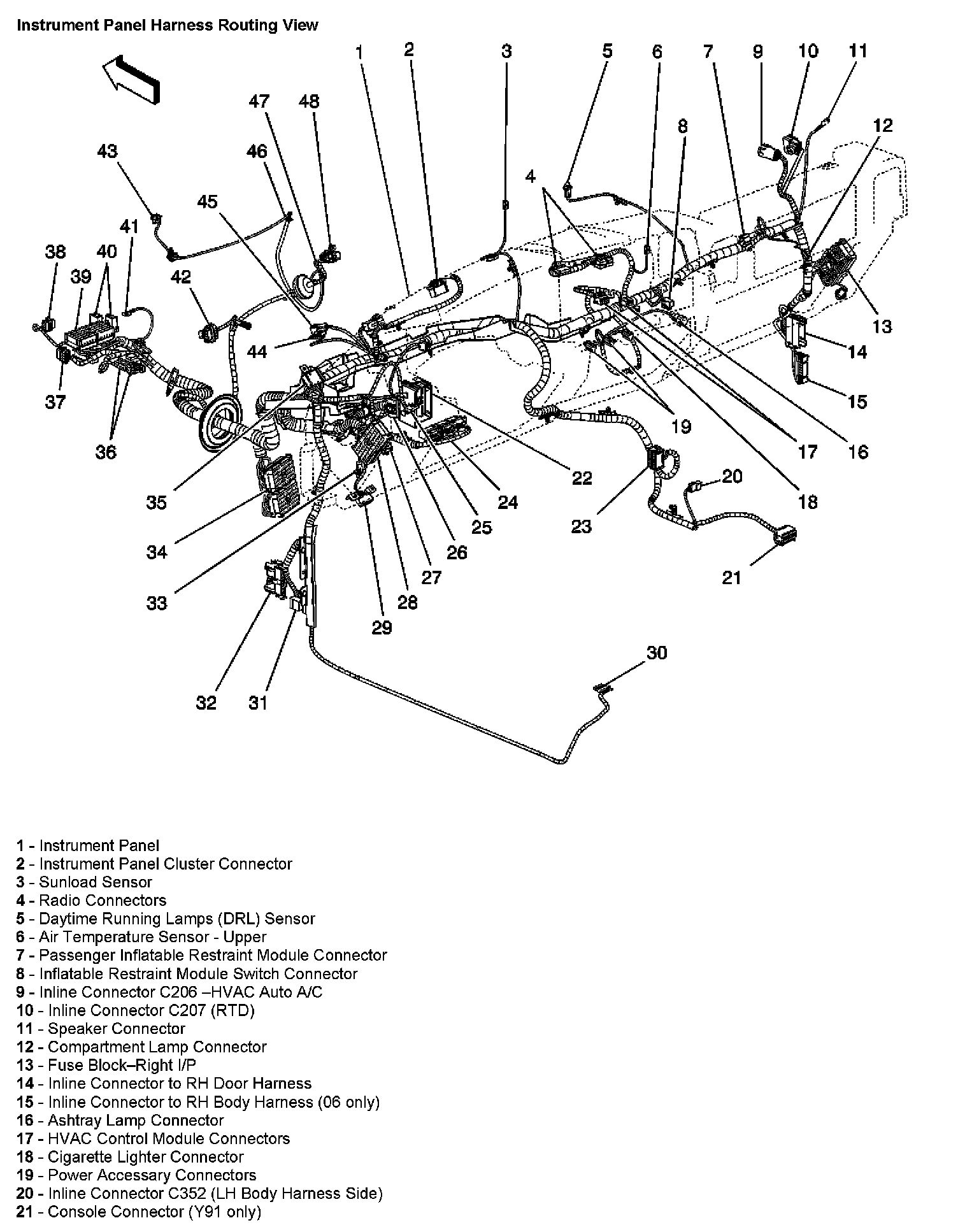

Instrument Panel Harness Routing View Part 1:

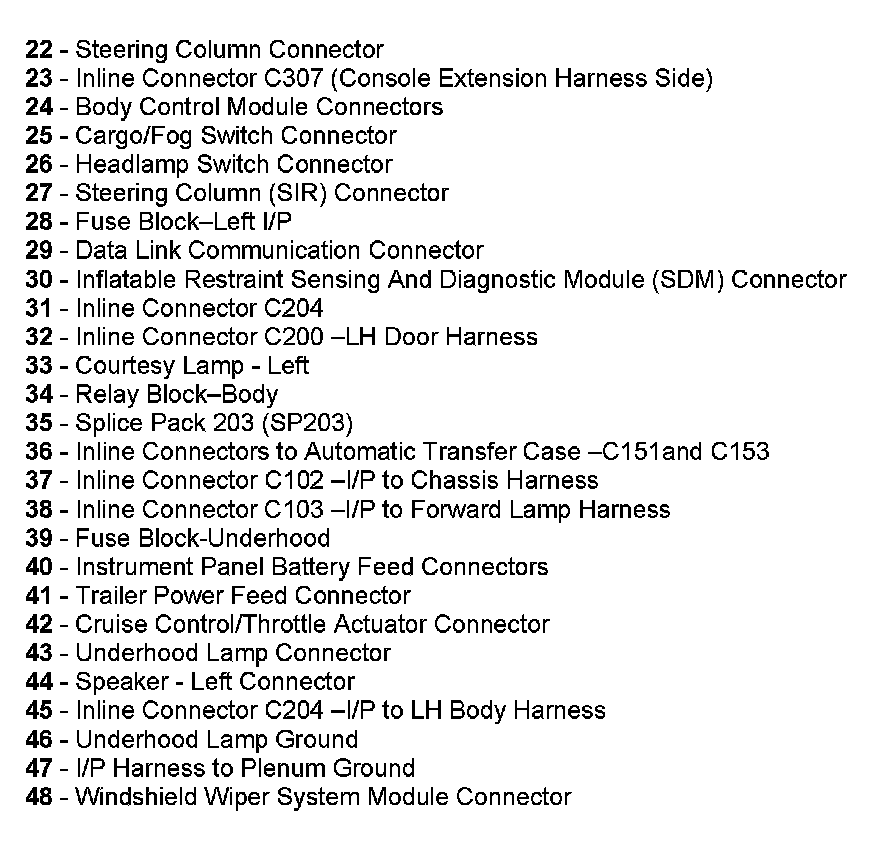

Instrument Panel Harness Routing View Part 2:
