Ambient Temperature Sensor / Switch HVAC: Locations



AMBIENT AIR TEMPERATURE SENSOR

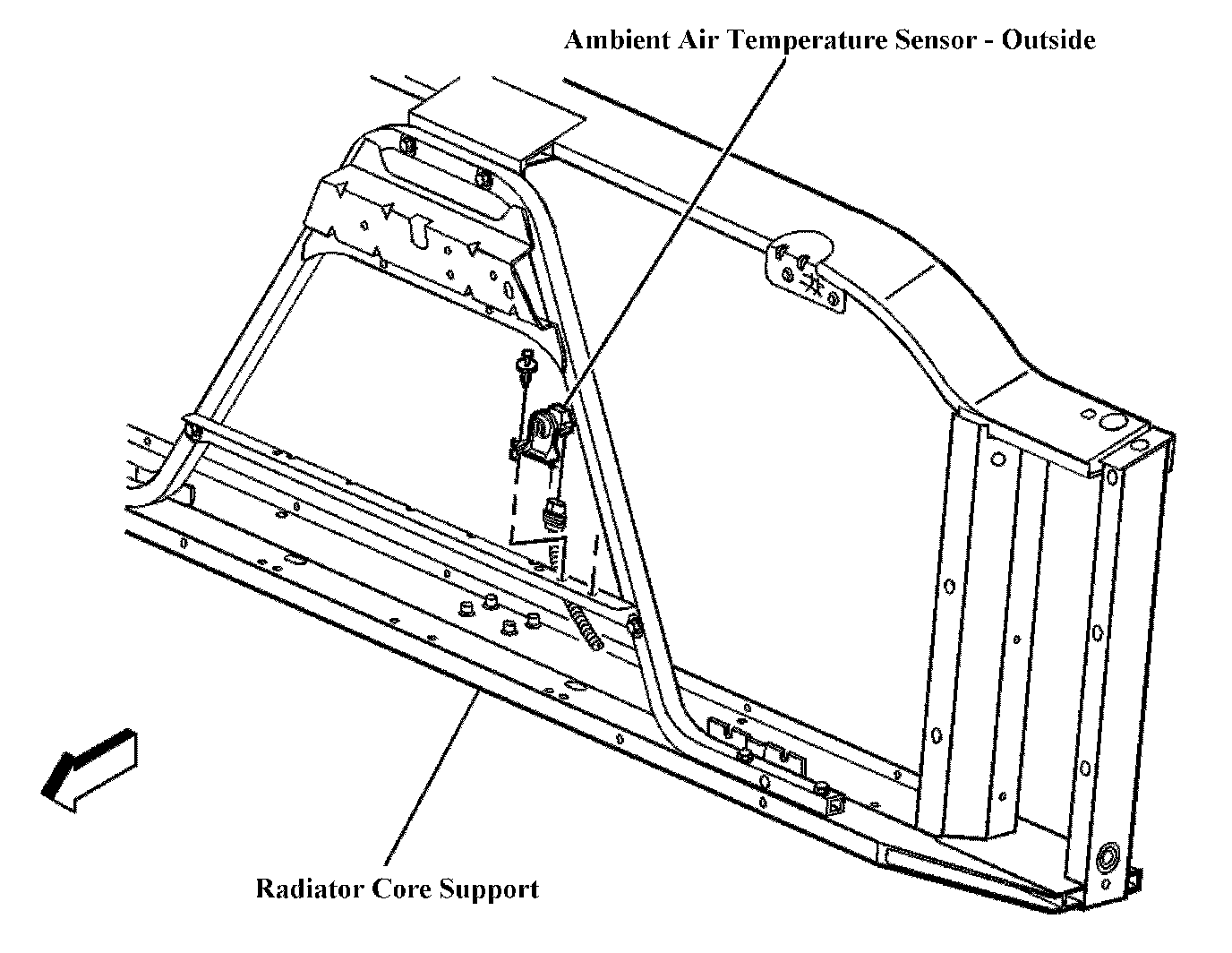

The left hand Ambient Air Temperature Sensor is located behind grille, left of center.


Ambient Air Temperature Sensor:

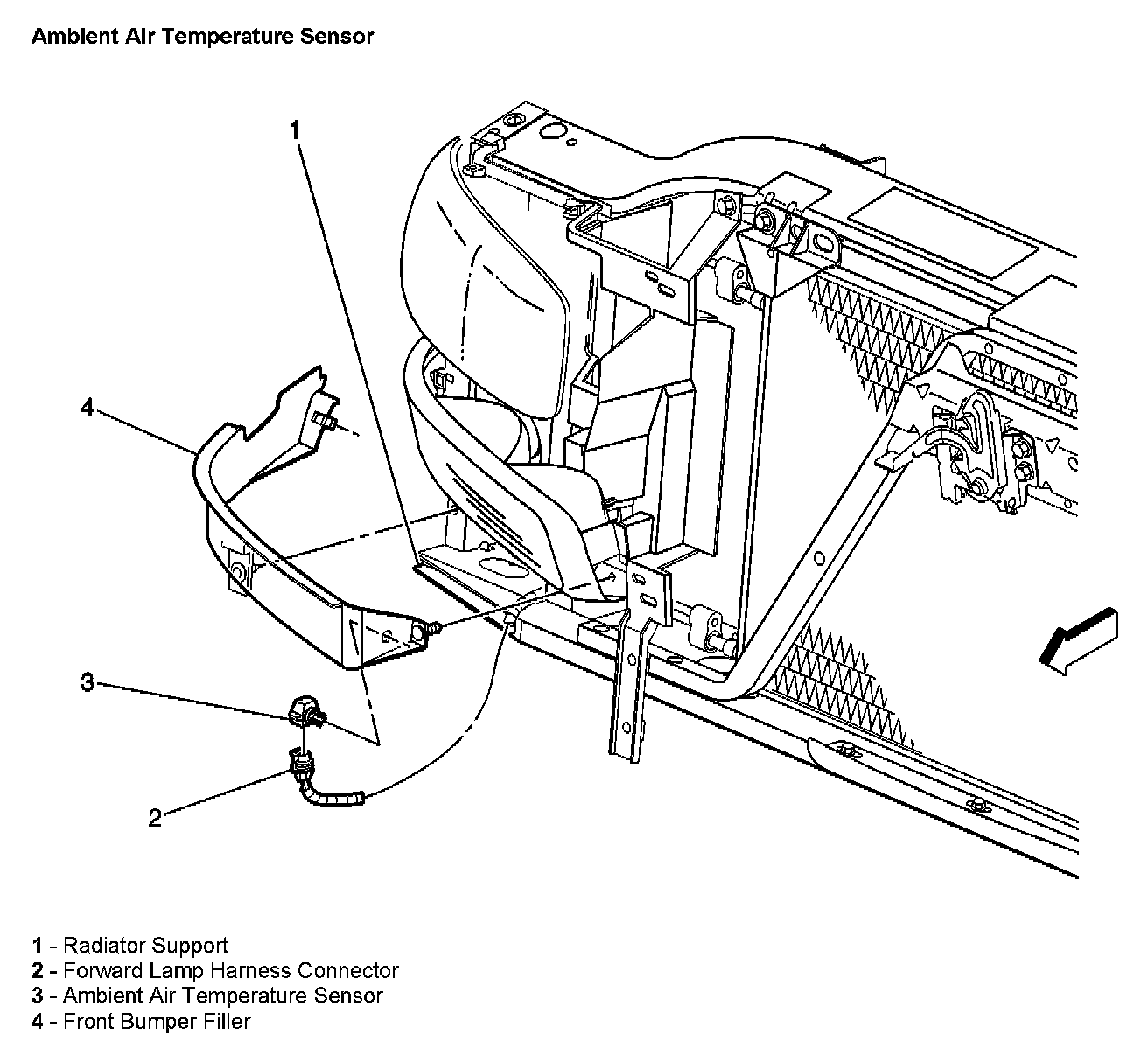

The right hand Ambient Air Temperature Sensor, vehicles with RPO CJ2 is located behind the right front bumper facia, below the right headlamp.
