With Traction Control

Traction Control Switch Replacement (Traction Control)

Removal Procedure
1. Remove the Instrument Panel (I/P) bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gauges and Warning Indicators.

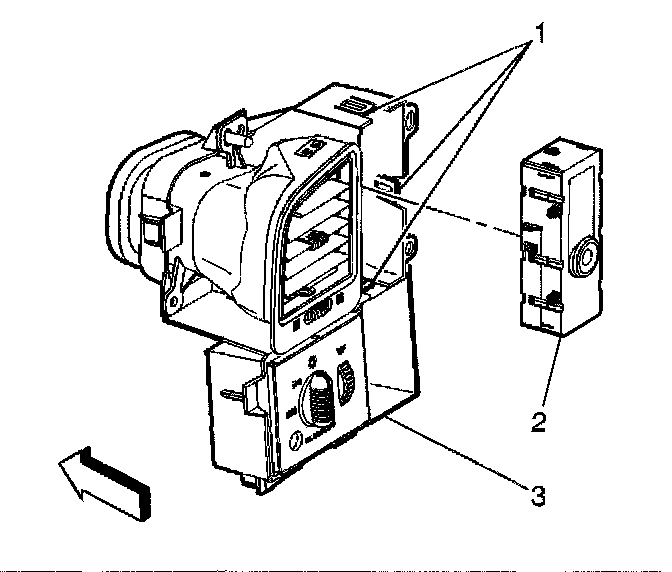

2. Gently lift the switch retaining tabs (1) and remove the traction control switch (2) from the I/P assembly (3).
3. Disconnect the harness connector from the traction control switch.

Installation Procedure
1. Connect the harness connector to the traction control switch.

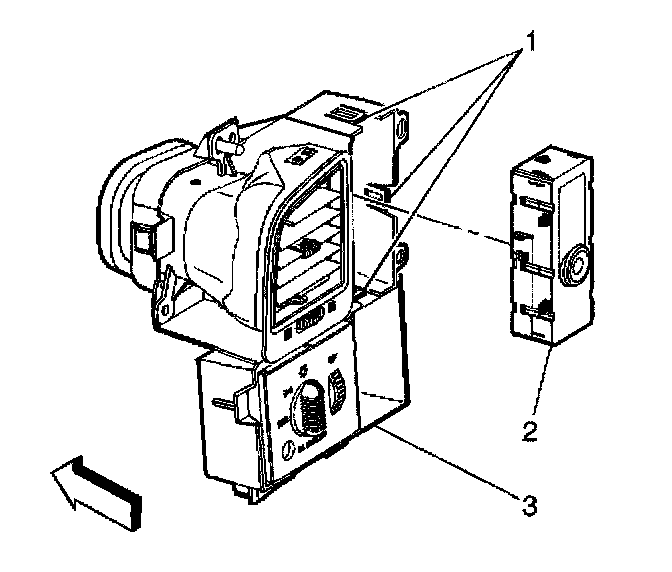

2. Install the traction control switch (2) into the Instrument Panel (IP) assembly (3), making sure that all of the switch retaining tabs (1) are engaged.
3. Install the I/P bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gauges and Warning Indicators.
