With Stabilitrak

Traction Control Switch Replacement (Stabilitrak)

Removal Procedure
1. Remove the Instrument Panel (I/P) bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gauges and Warning Indicators.

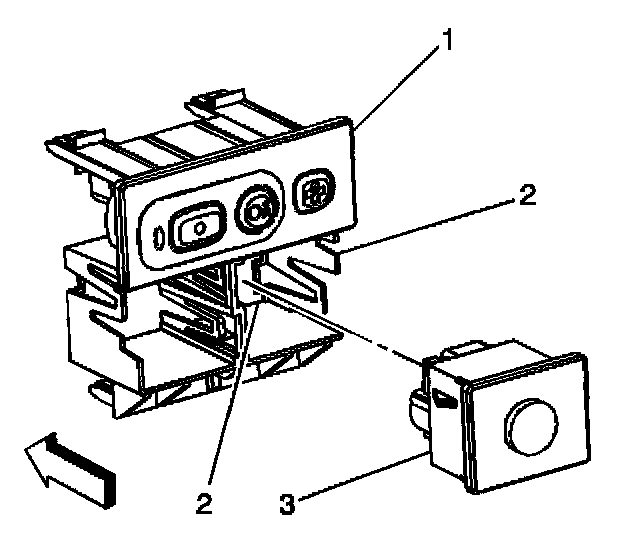

2. Gently lift the retaining tabs (2) and remove the stabilitrak switch (3) from the I/P assembly (1).

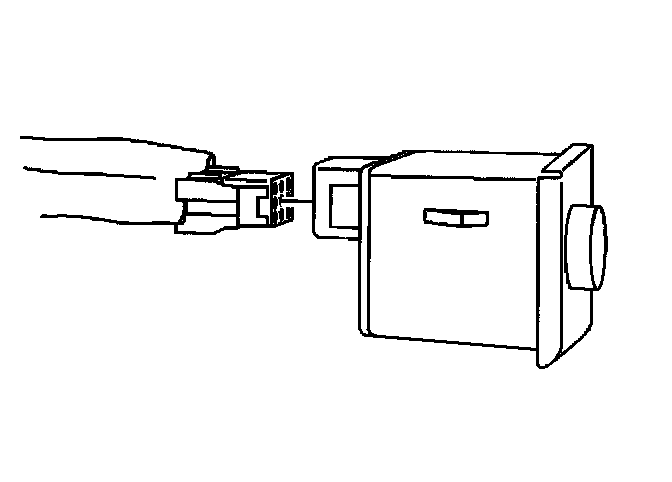

3. Disconnect the harness connector from the stabilitrak switch.

Installation Procedure





1. Connect the harness connector to the stabilitrak switch.

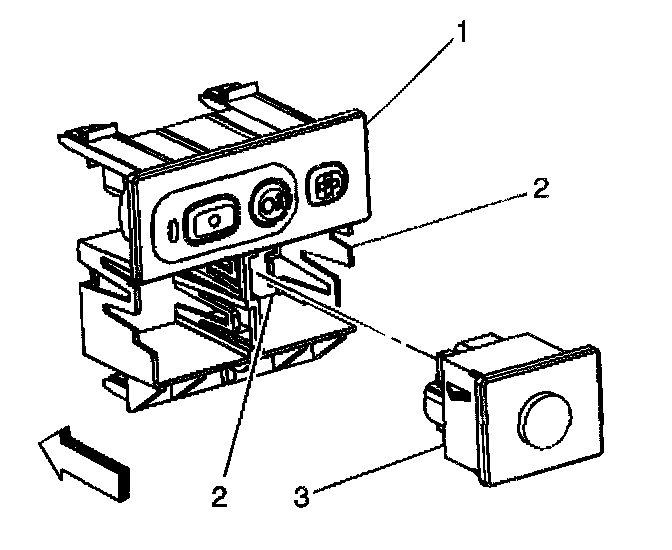

2. Install the stabilitrak switch (3) into the I/P assembly (1)
3. Ensure that the switch is secure into both retaining tabs (2).
4. Install the I/P bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gauges and Warning Indicators.
