Power Trunk / Liftgate Lock Switch: Diagrams

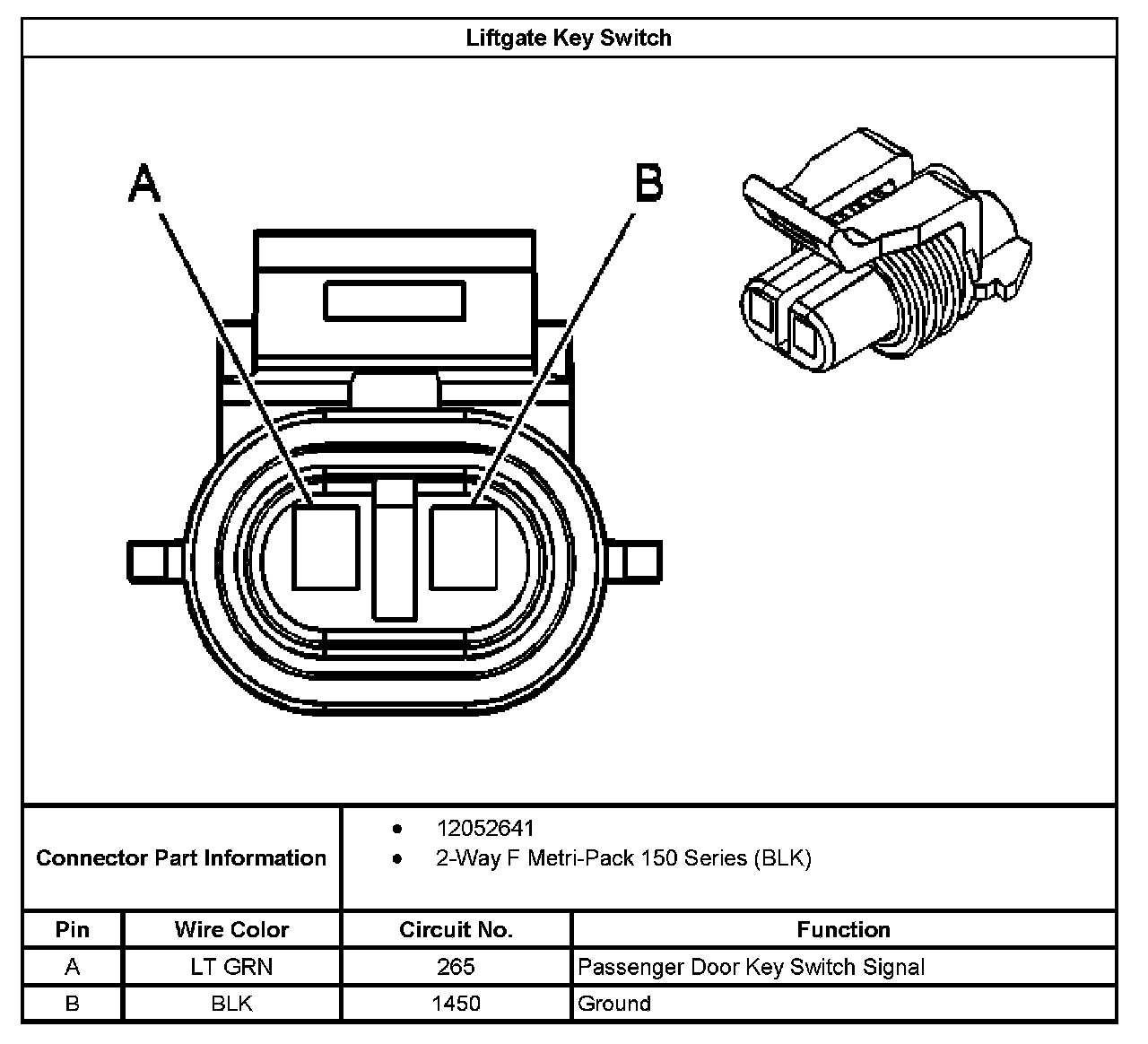

Liftgate Key Switch:

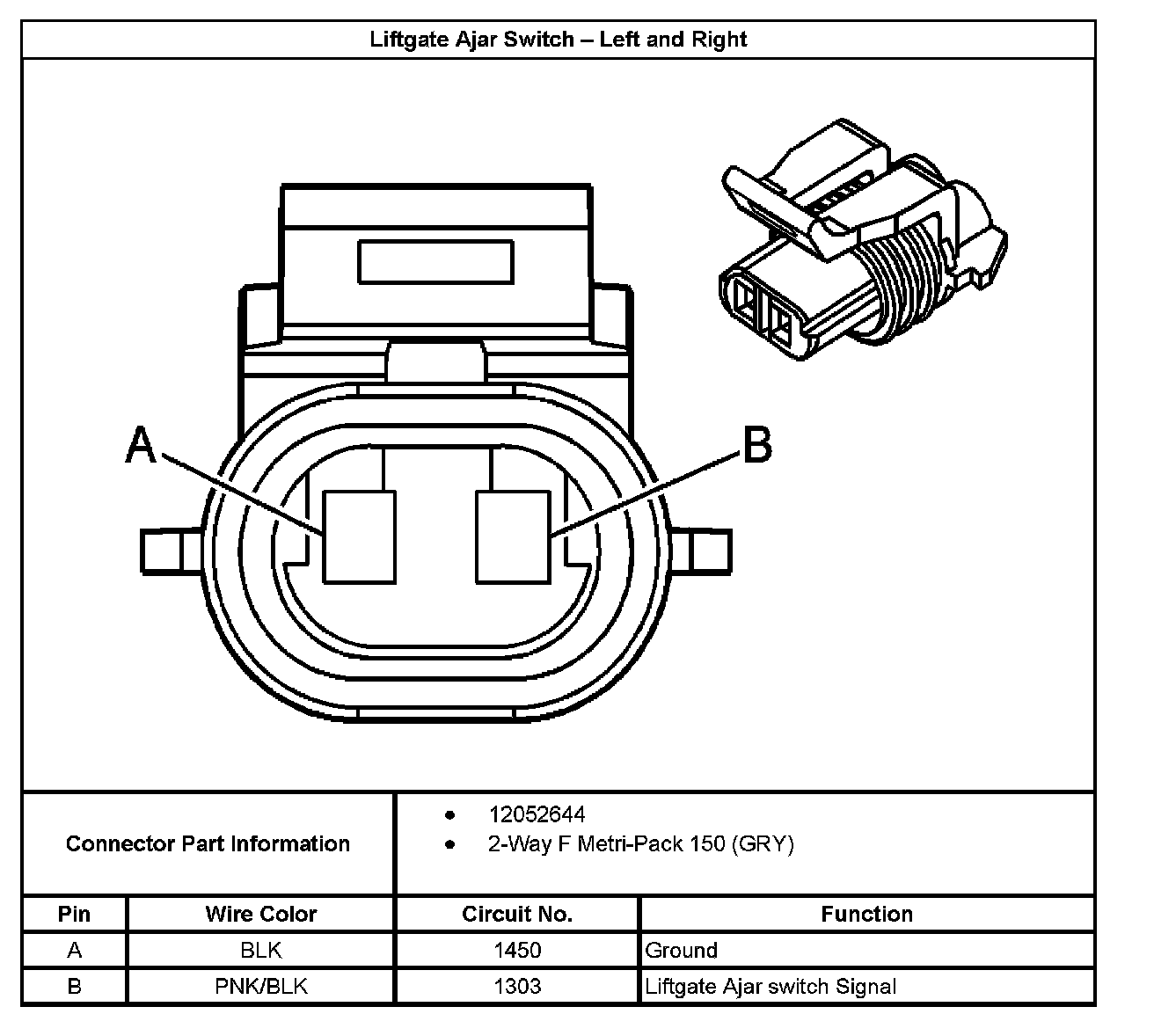

Liftgate Ajar Switch - Left And Right:

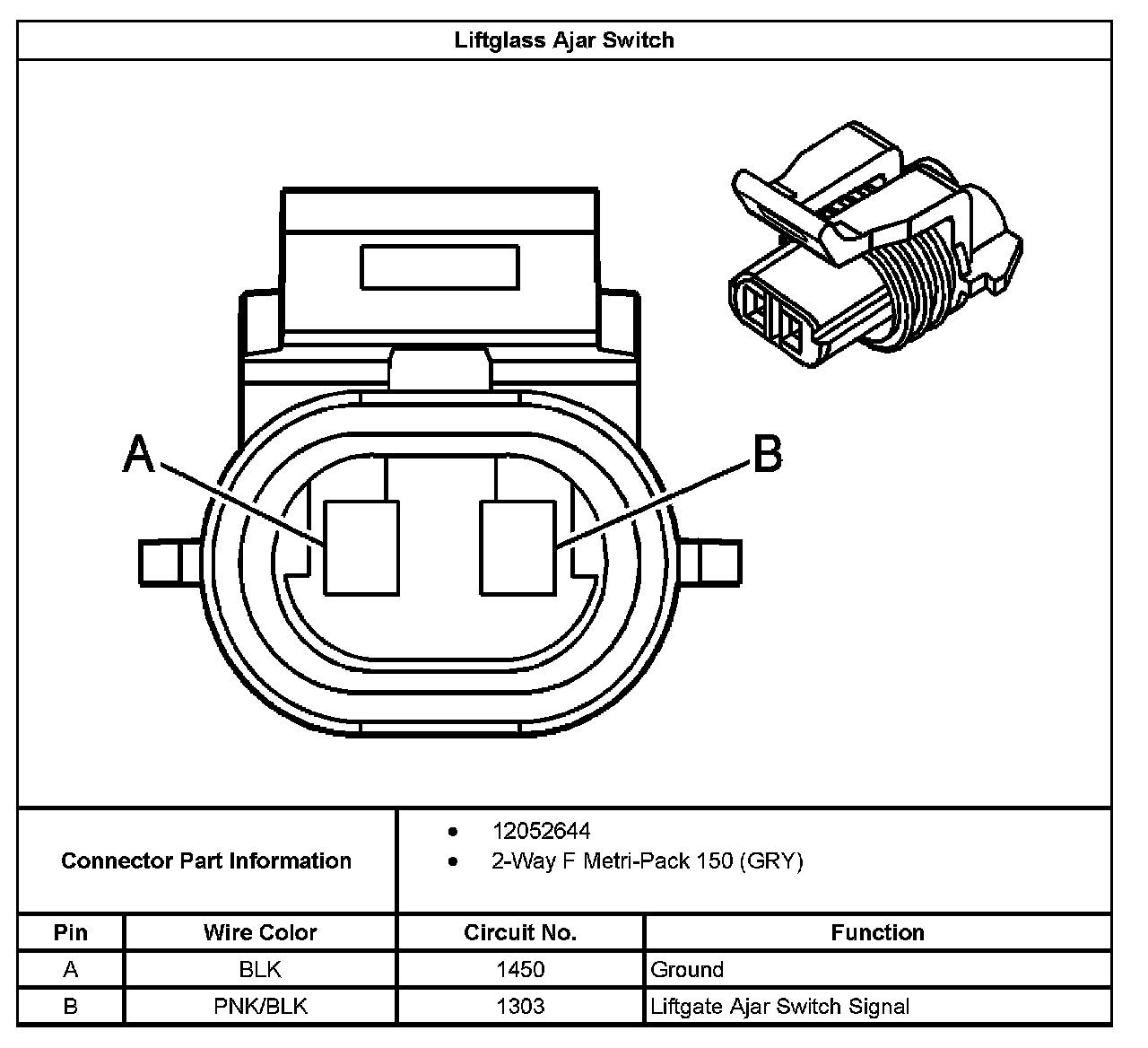

Liftglass Ajar Switch:
