Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Locations >> Seat Adjuster Switch

Seat Adjuster Switch

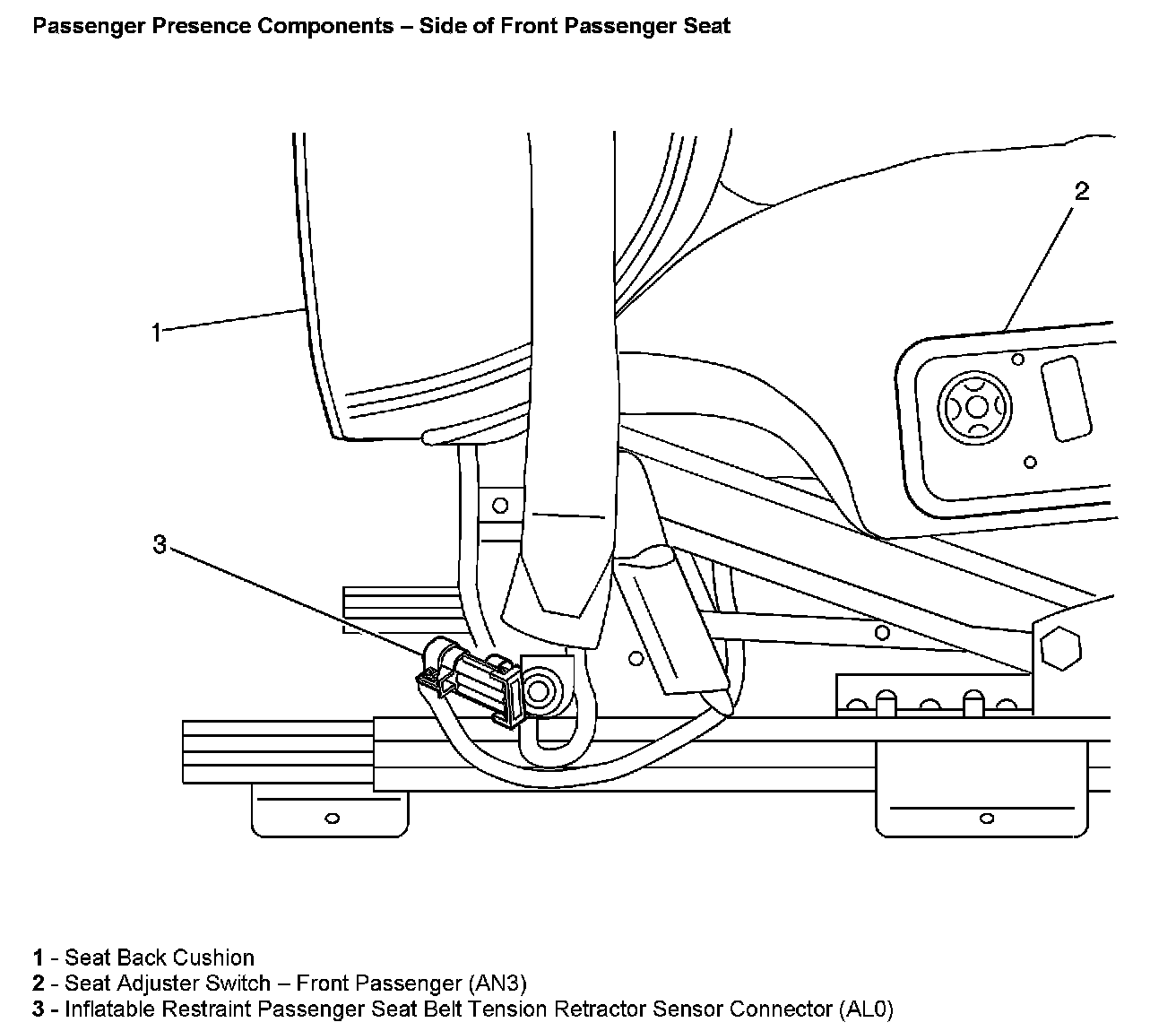

Passenger Presence Components-Side Of Front Passenger Seat:

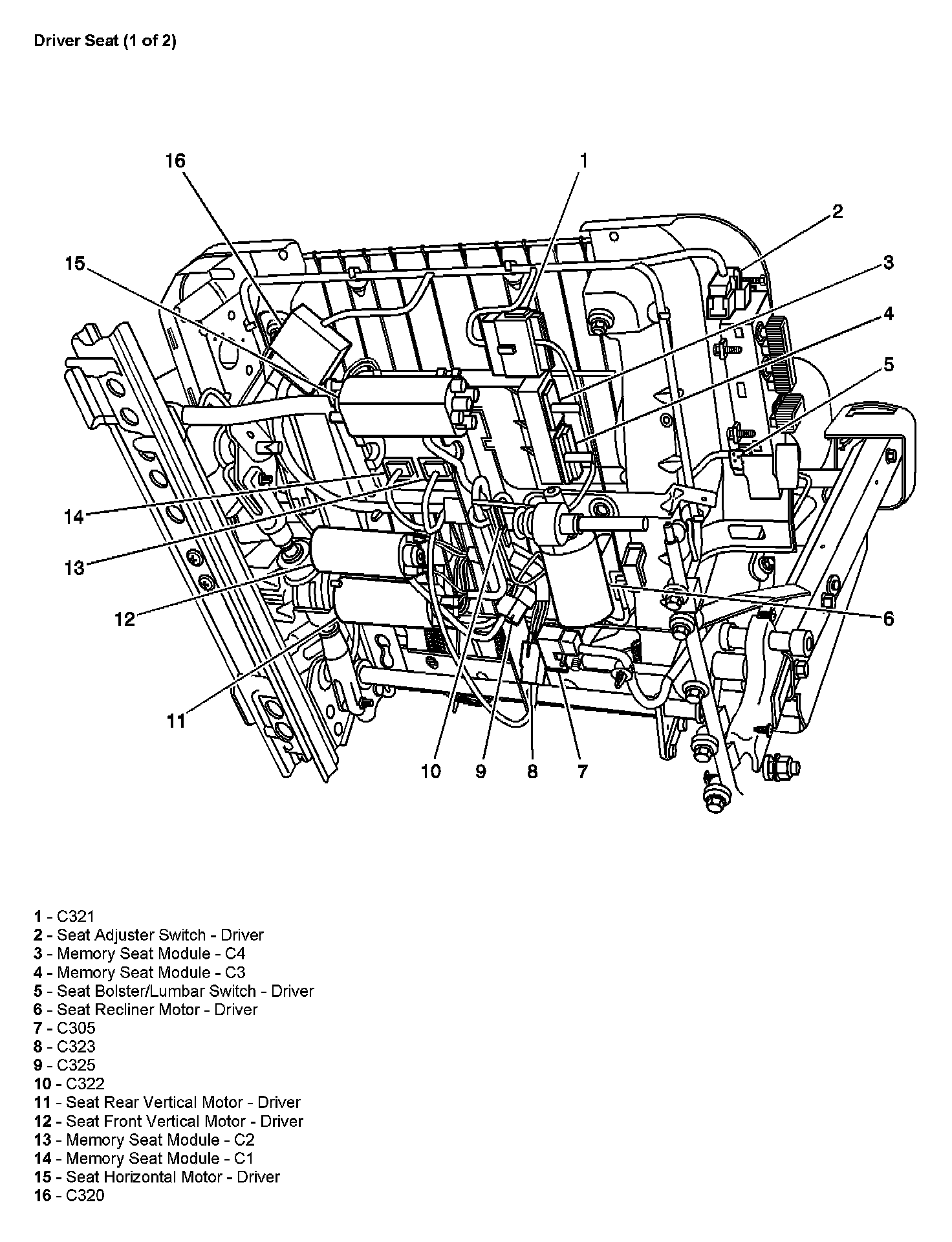

Driver Seat (1 Of 2):

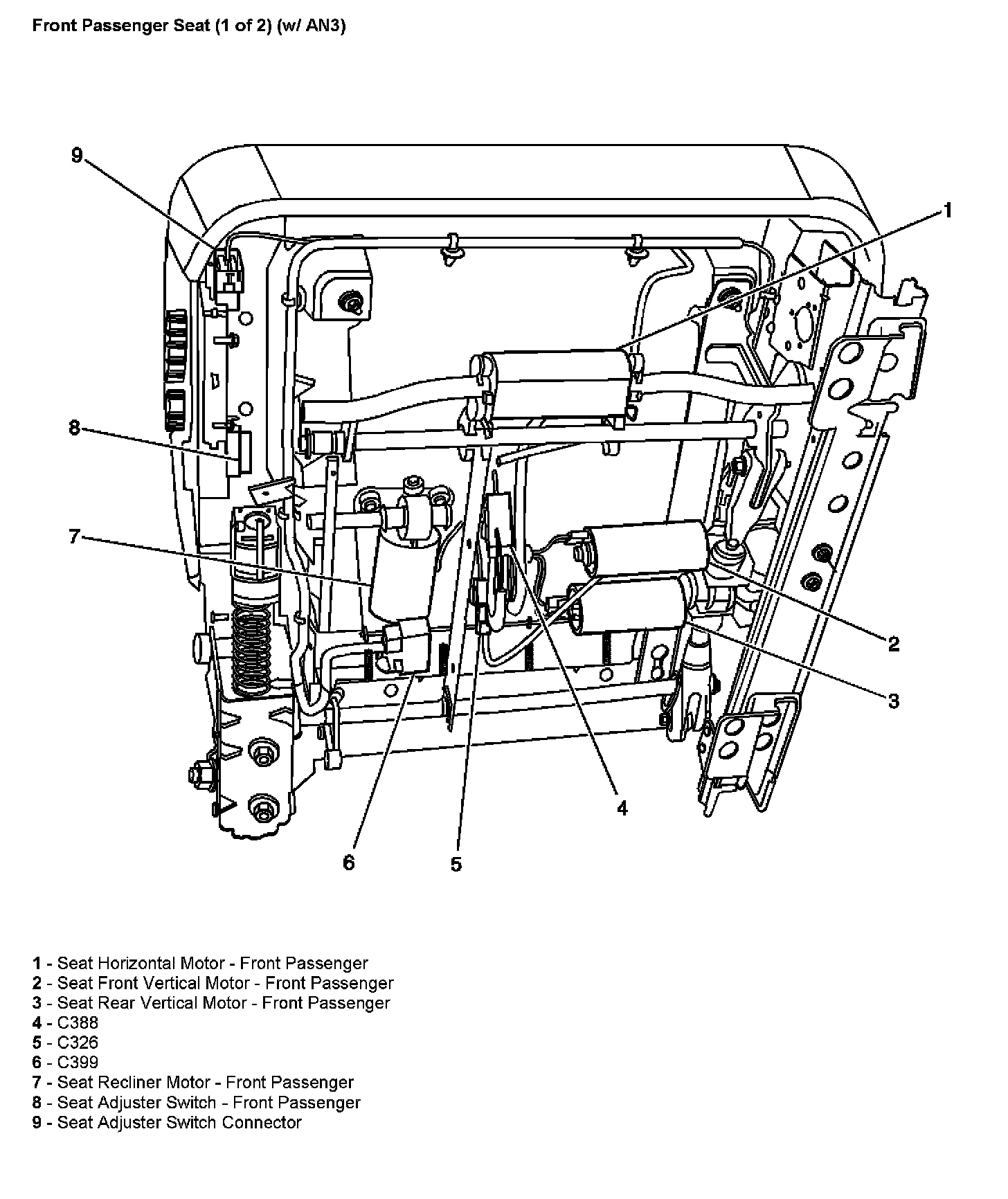

Front Passenger Seat (1 Of 2) (With RPO Code AN3):
