Electronic Brake Control Module: Diagrams




ABS Connector End Views

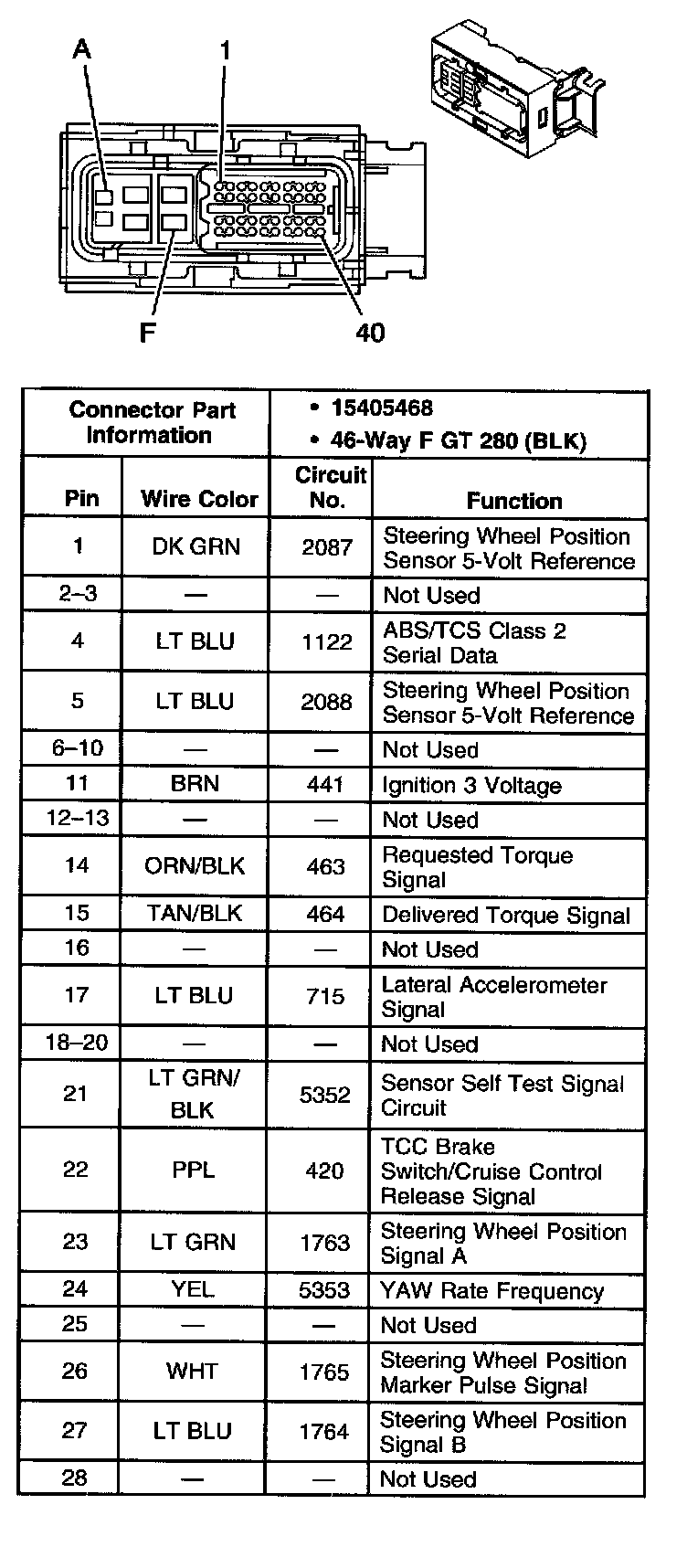

Electronic Brake Control Module (EBCM) - C1 (w/o JL4)

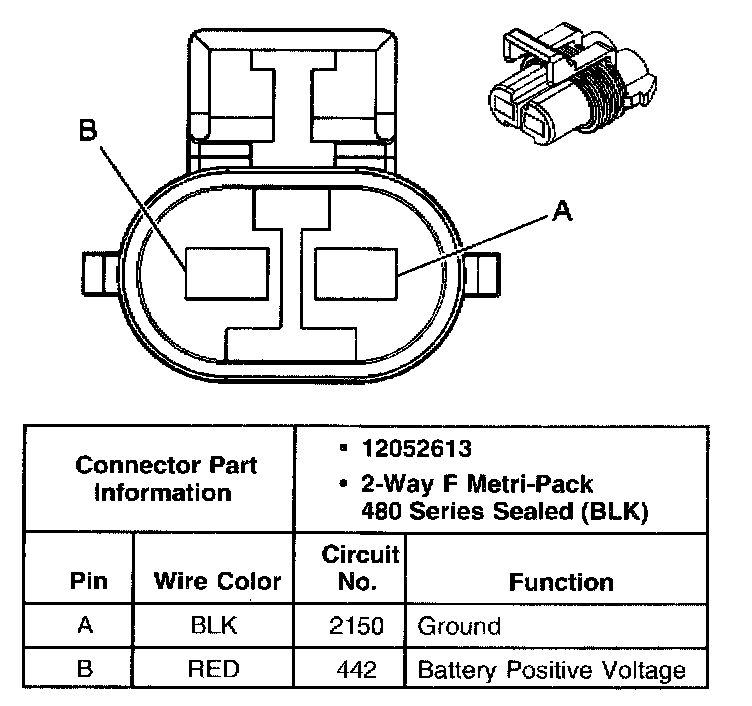

Electronic Brake Control Module (EBCM) - C2 (w/o JL4)





Electronic Brake Control Module (EBCM) (w/JL4)
