4L60-E/4L65-E Automatic Transmission
>>
Valve Controls and Brake Switch
Valve Controls and Brake Switch
Schematic and Routing Diagrams

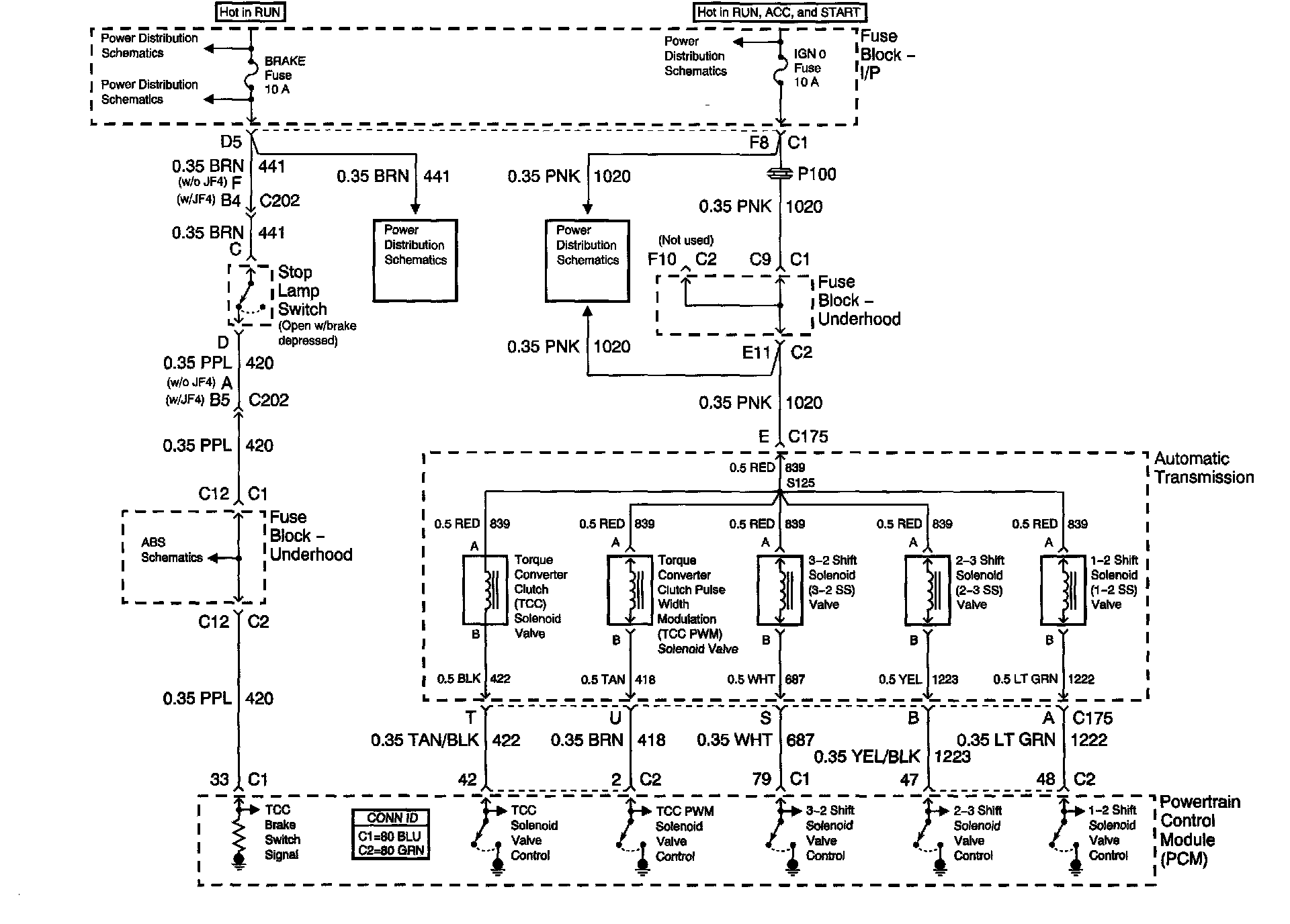

Automatic Transmission Controls Schematics (Valve Controls and Brake Switch)
