A/T Inline 20-Way Connector End View

Automatic Transmission Inline 20-Way Connector End View

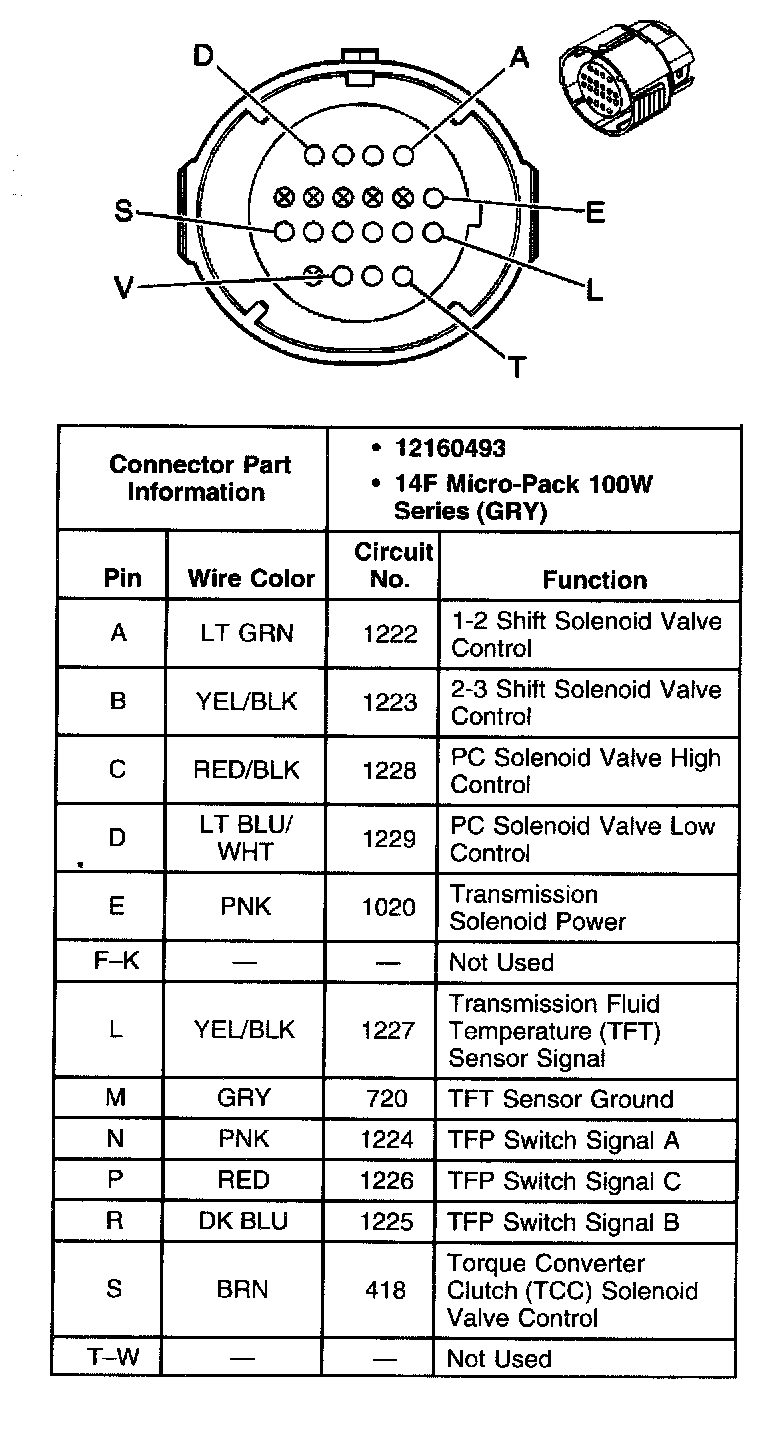

Inline Harness Connector C103, Engine Side

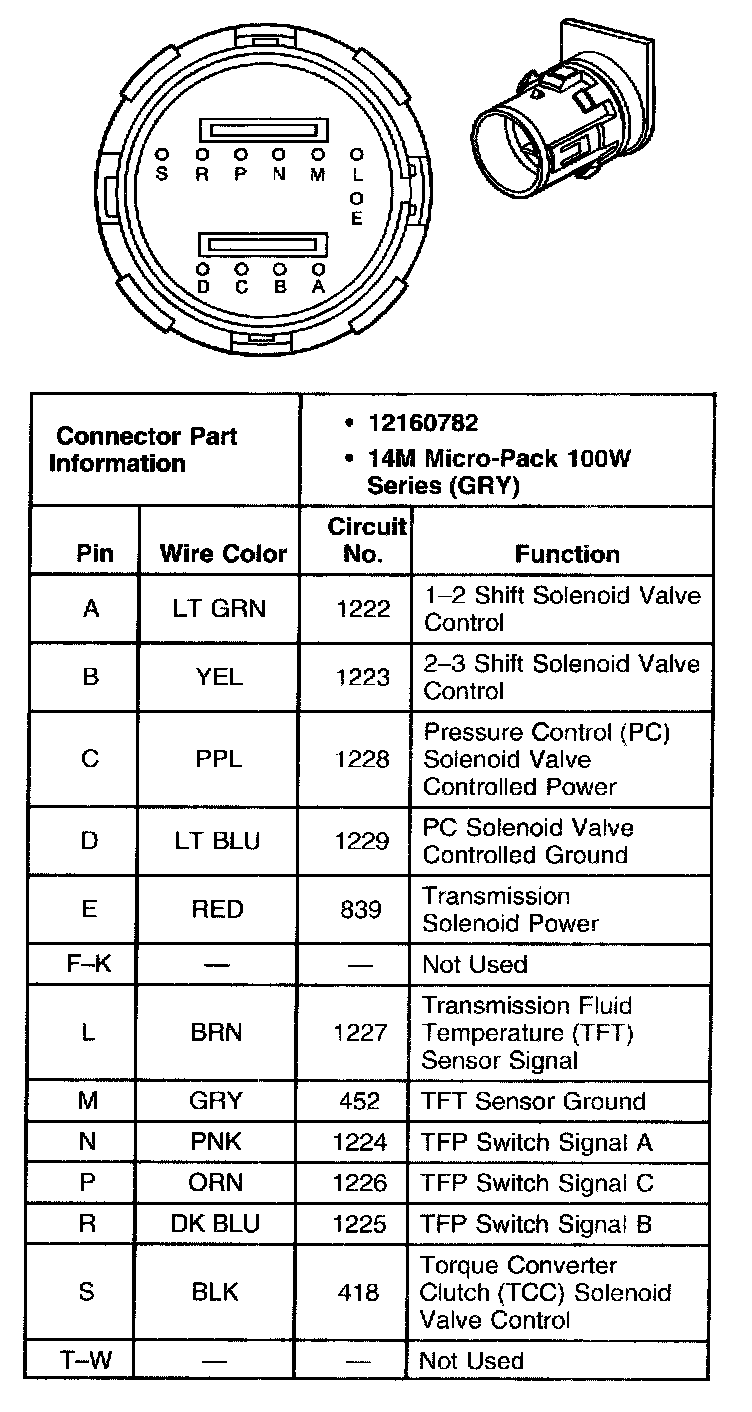

Inline Harness Connector - Transmission Side
