Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Harness >> Junction Block View >> Junction Block - Rear Lamps- C3 and C4

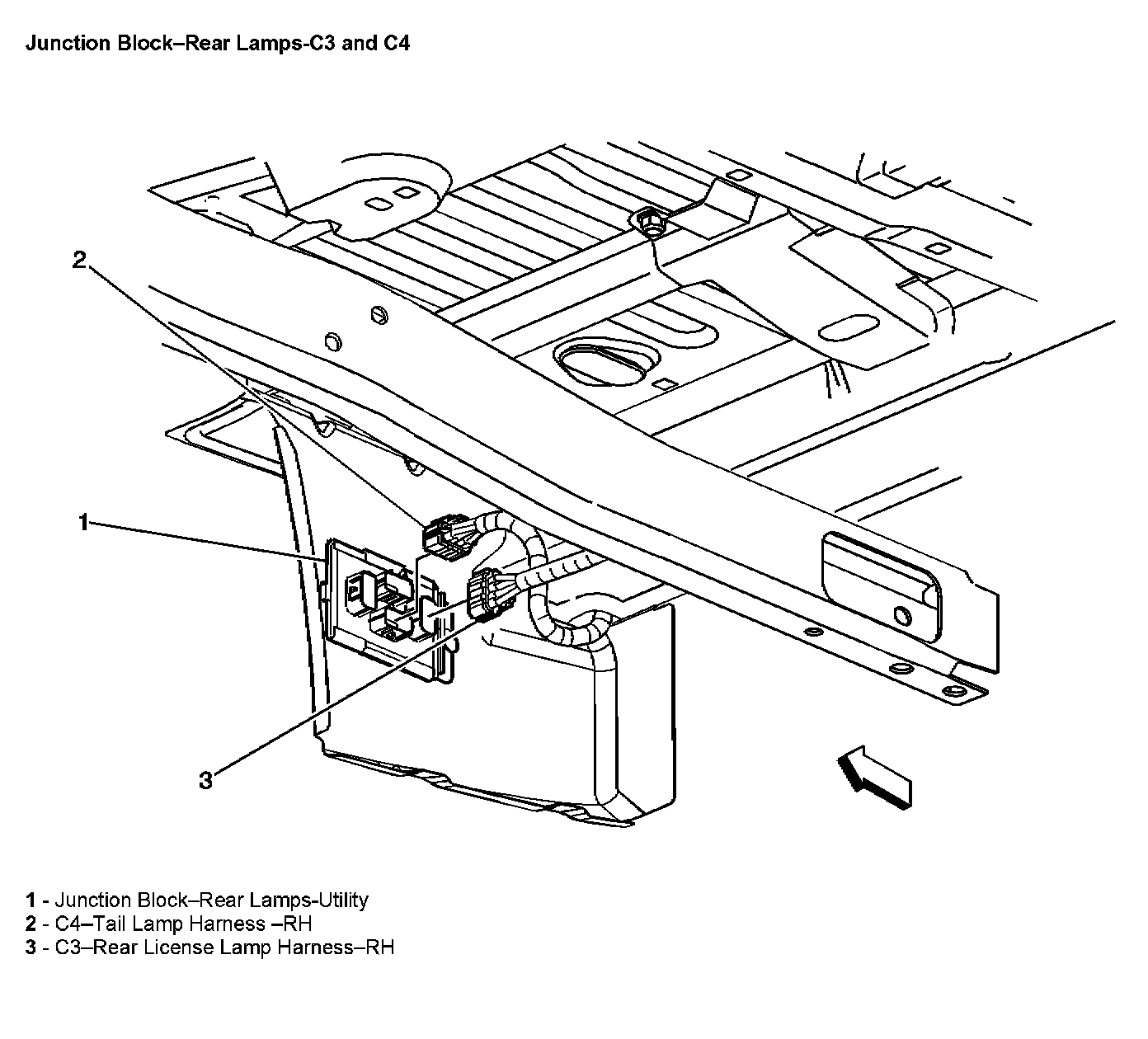

Junction Block - Rear Lamps- C3 and C4

Junction Block - Rear Lamps - C3 And C4:
