Suburban 1/2 Ton 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>

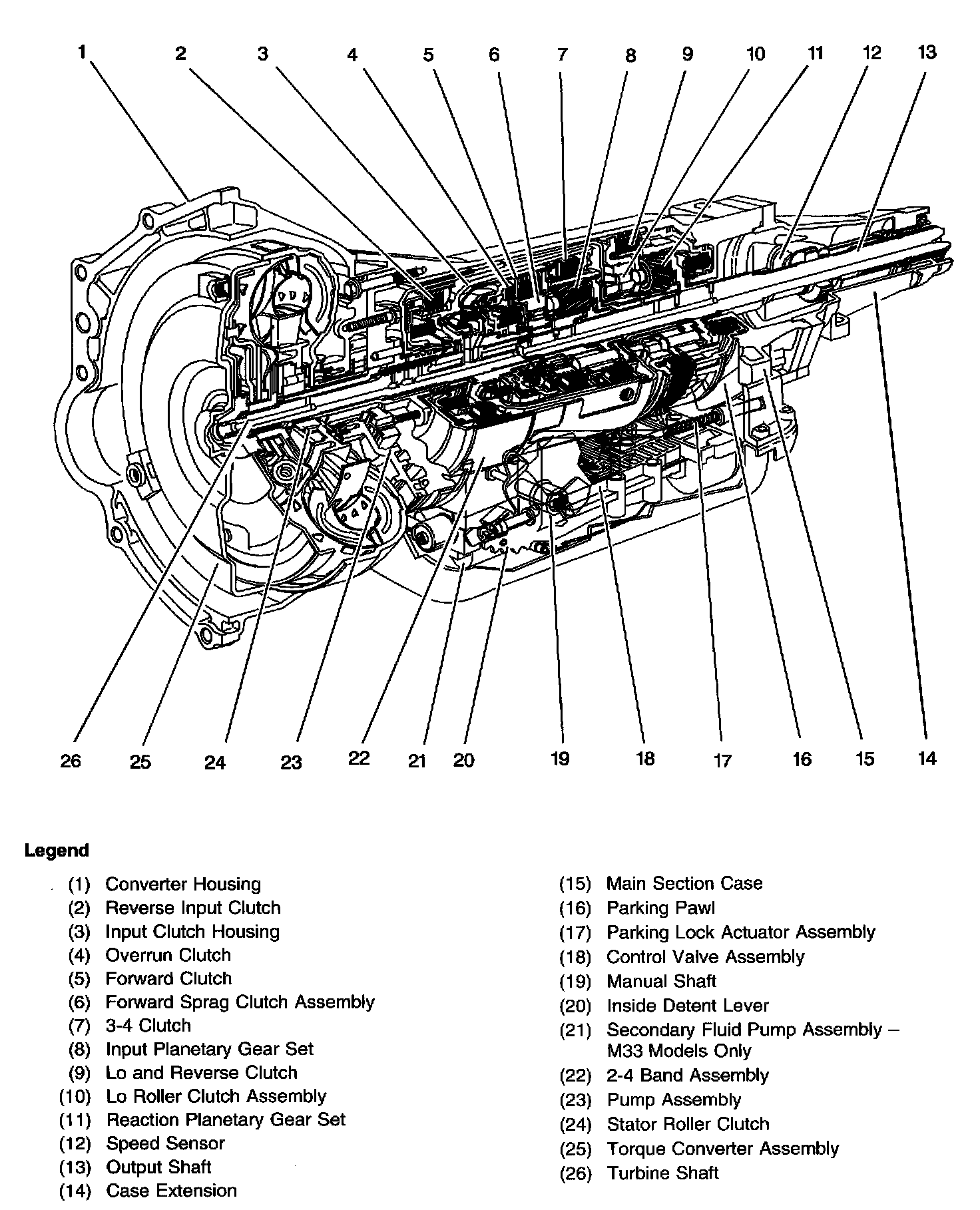

Exploded Views
>>
Automatic Transmission/Transaxle
>>
4L60-E/4L65-E Automatic Transmission
>>
Components
Components
Component Location
Components
