Power Distribution Diagram 28

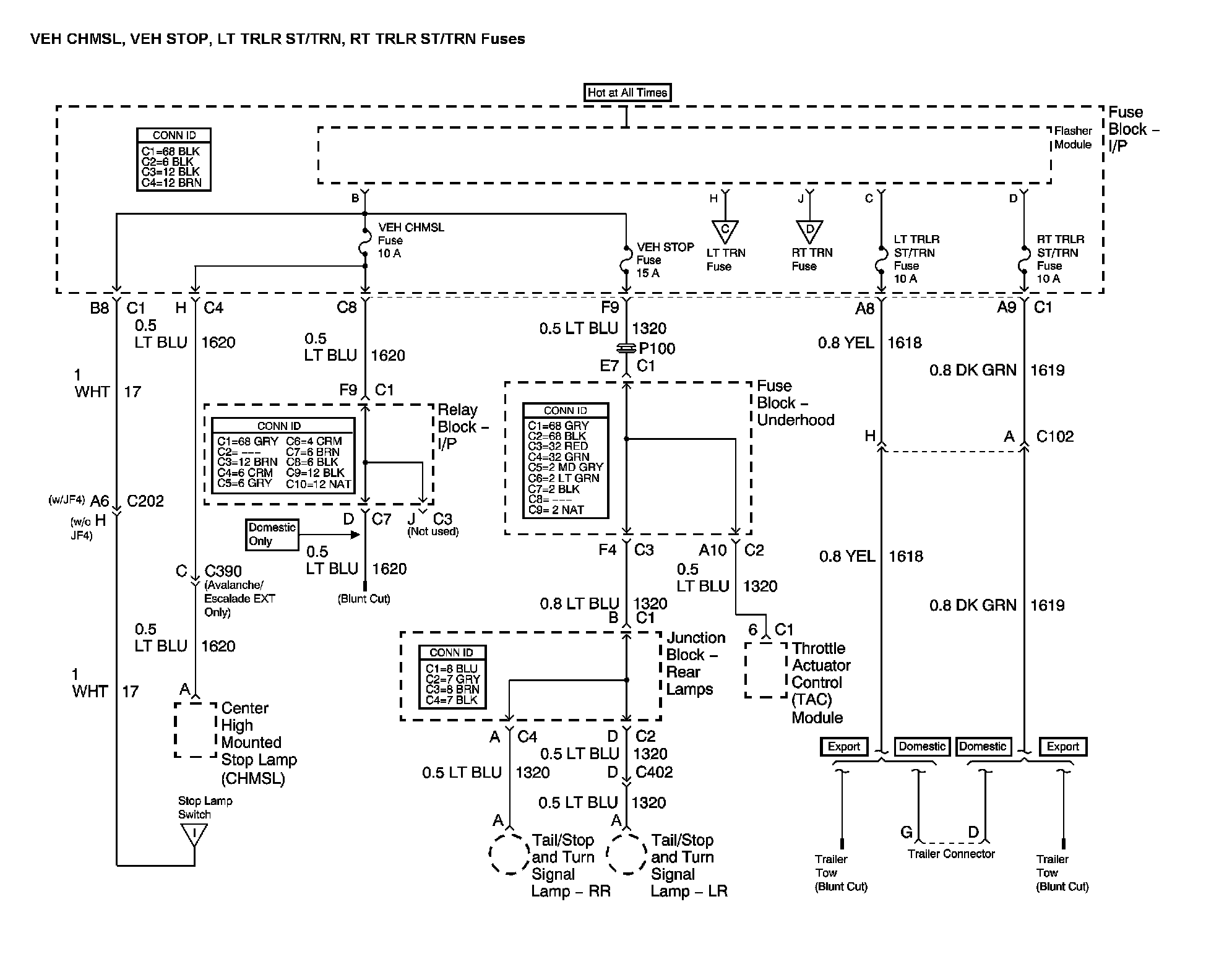

Power Distribution Diagram 28:






Next Diagram Power Distribution Diagram 29

Previous Diagram Power Distribution Diagram 27
