Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Power Distribution Diagram 26

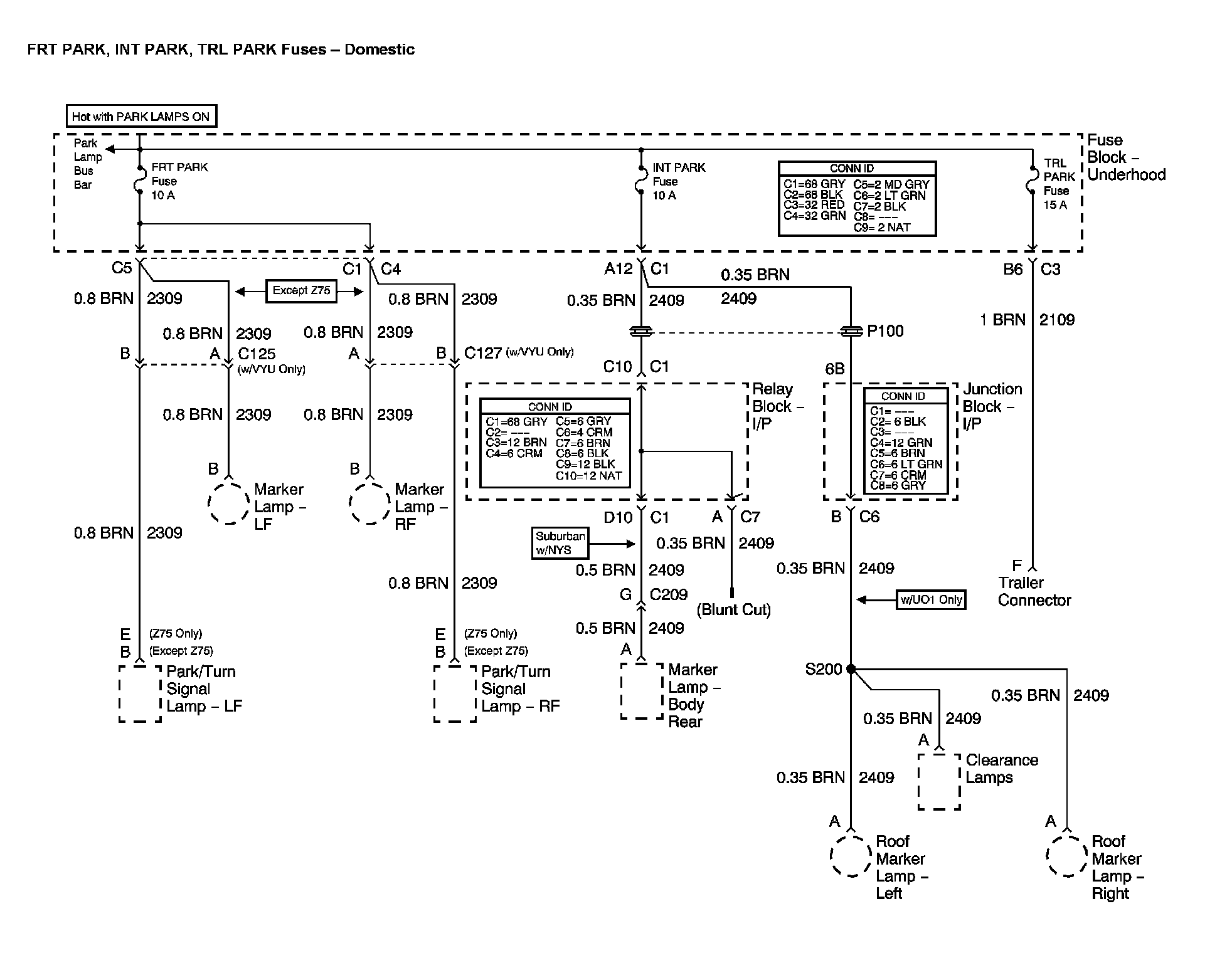

Power Distribution Diagram 26

Power Distribution Diagram 26:






Next Diagram Power Distribution Diagram 27

Previous Diagram Power Distribution Diagram 25
