Power Distribution Diagram 1
Power Distribution Diagram 1
Power Distribution Diagram 1 (1 Of 2):

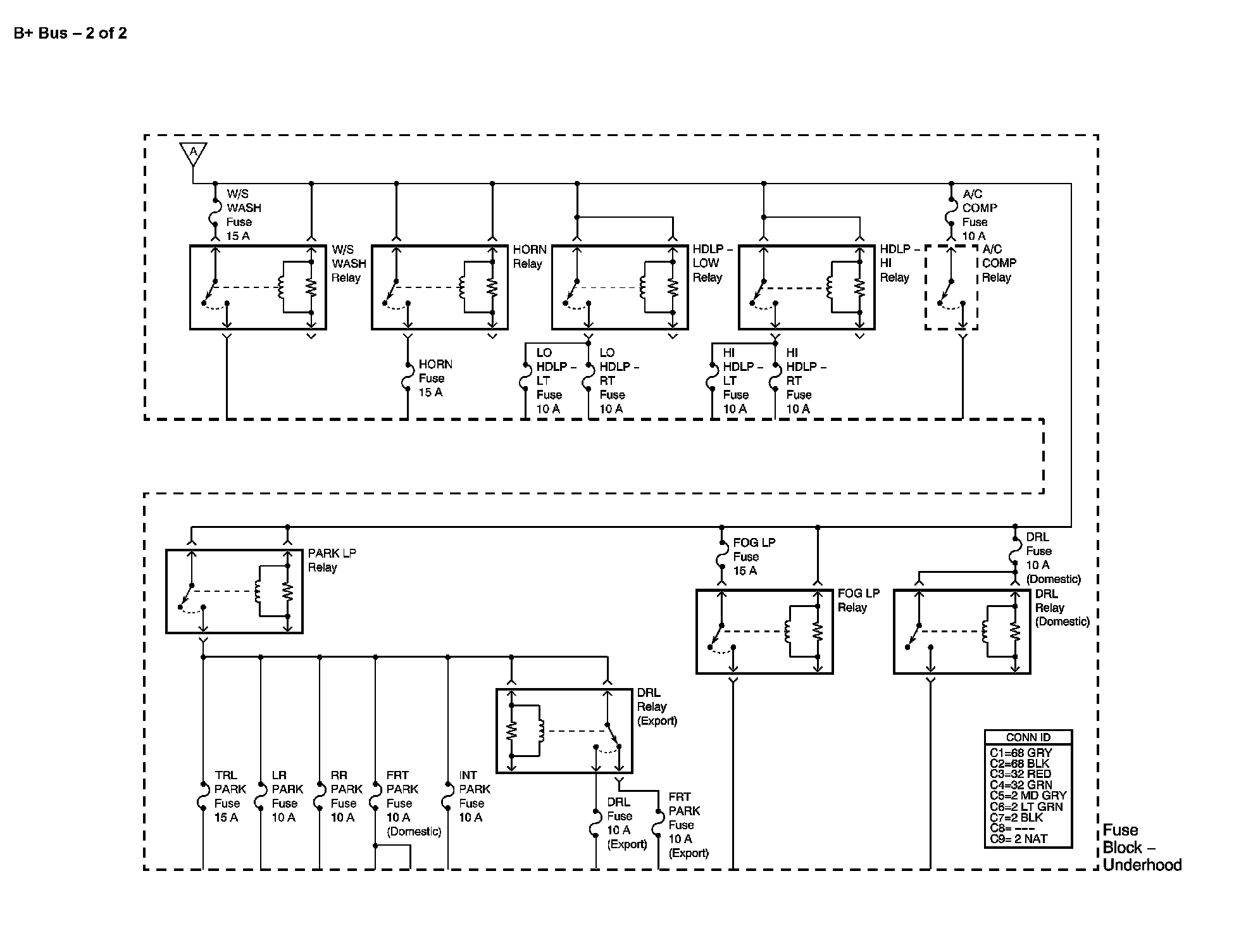

Power Distribution Diagram 1 (2 Of 2):
Next Diagram
Power Distribution Diagram 2
