Theft Deterrent

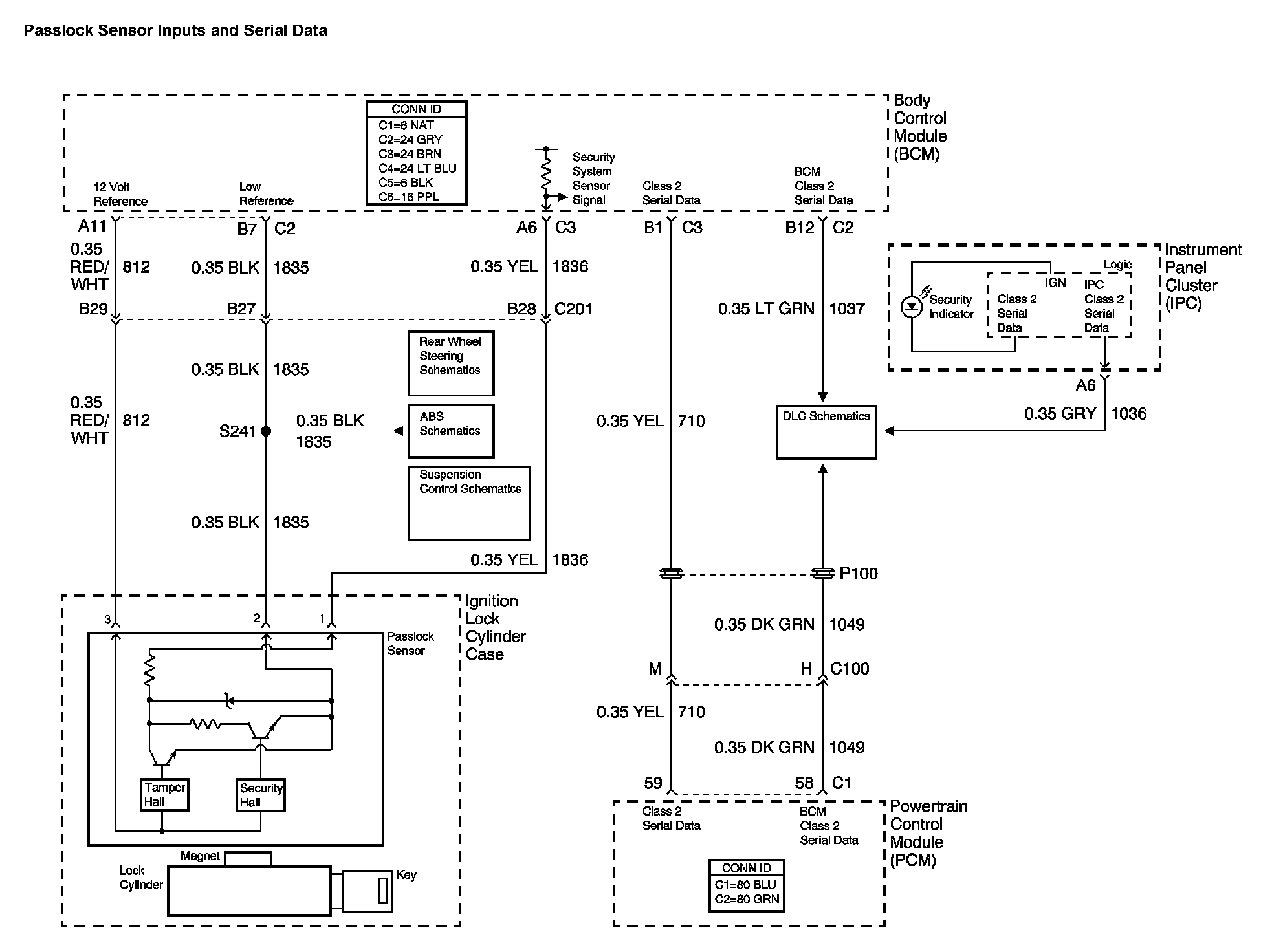

Theft Deterrent System Diagram 1:

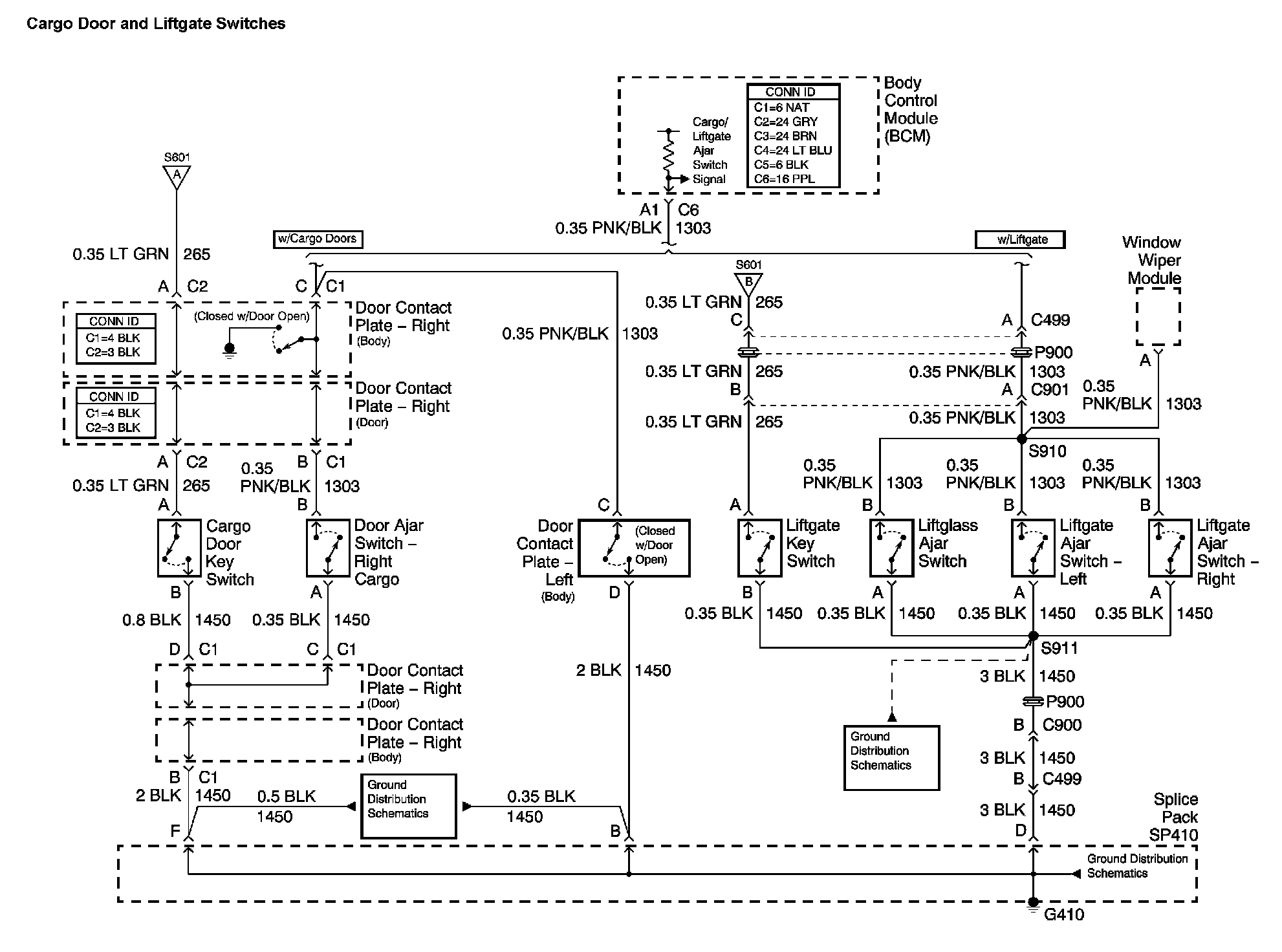

Theft Deterrent System Diagram 2:

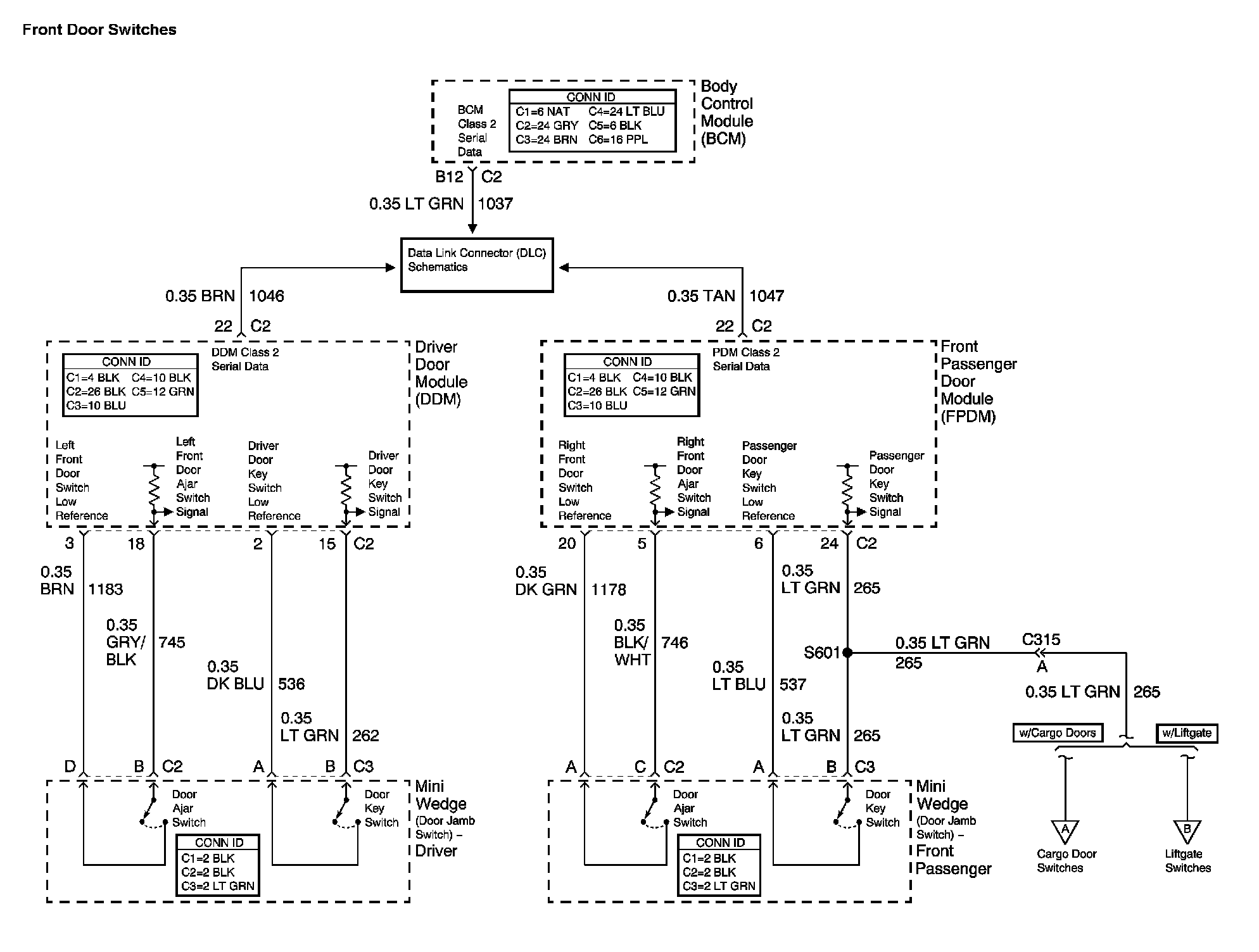

Theft Deterrent System Diagram 3:

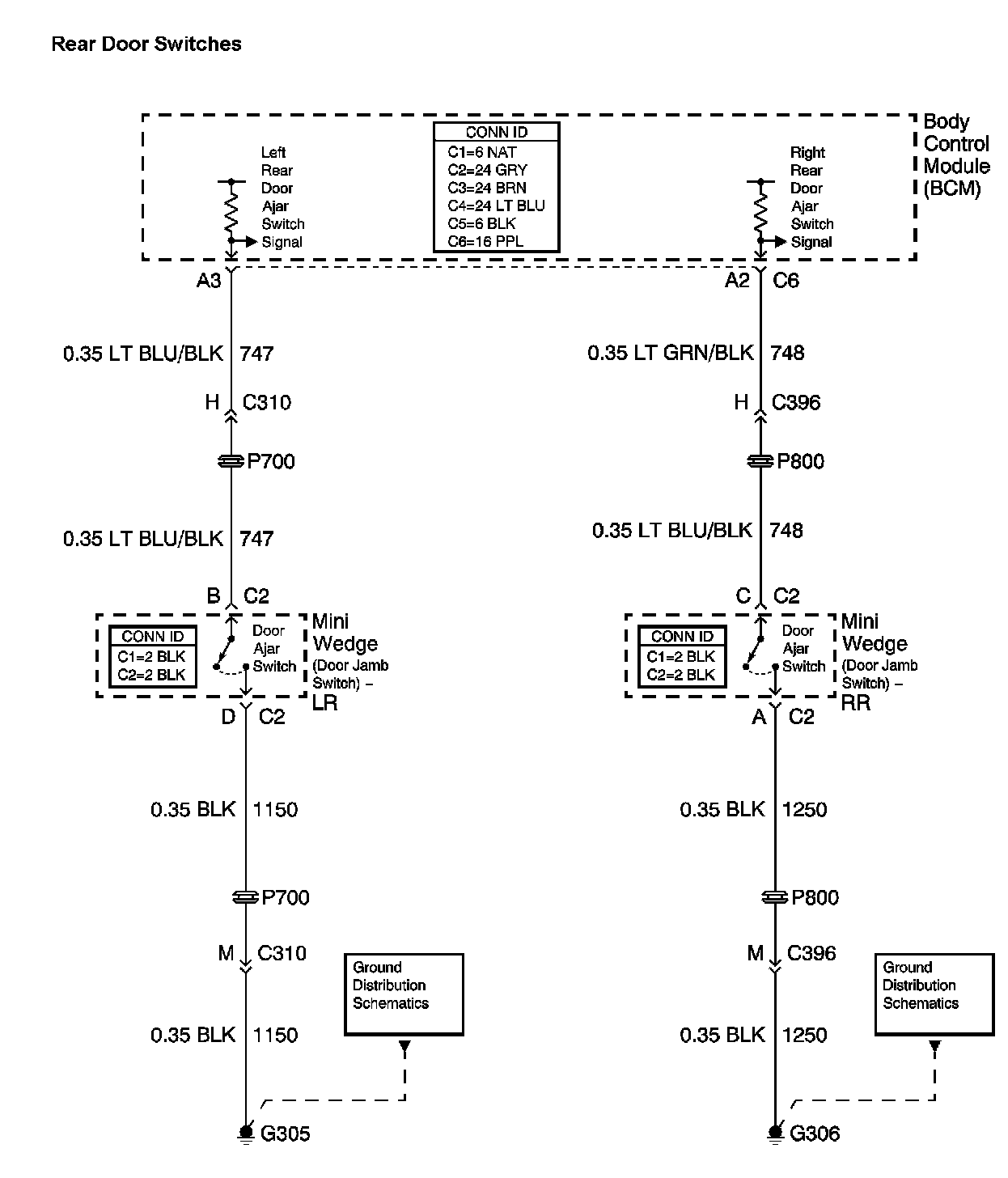

Theft Deterrent System Diagram 4:
