C306
C306

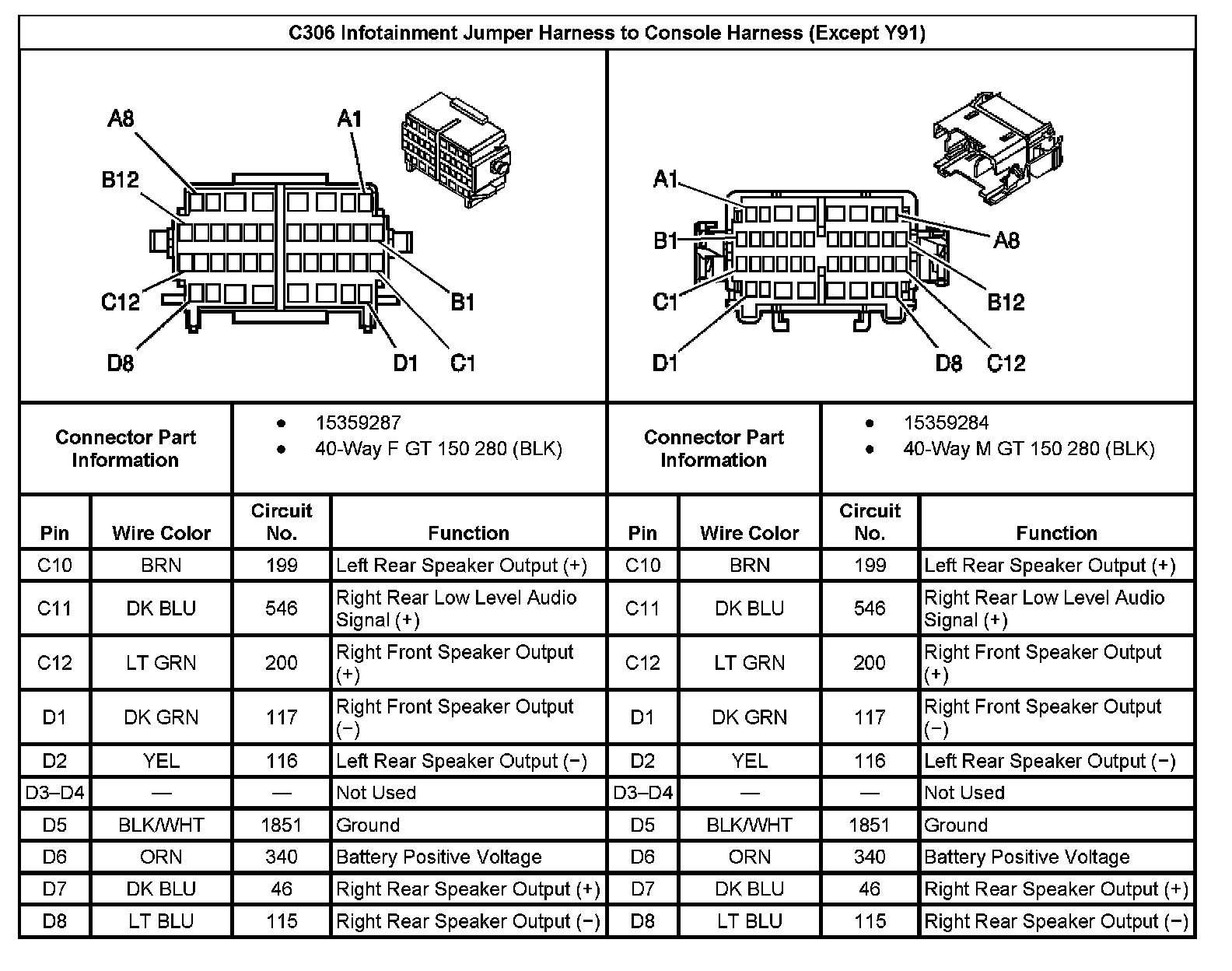

C306 Infotainment Jumper Harness To Console Harness (Except Y91) Part 1:
C306 Infotainment Jumper Harness To Console Harness (Except Y91) Part 2:
