C214
C214

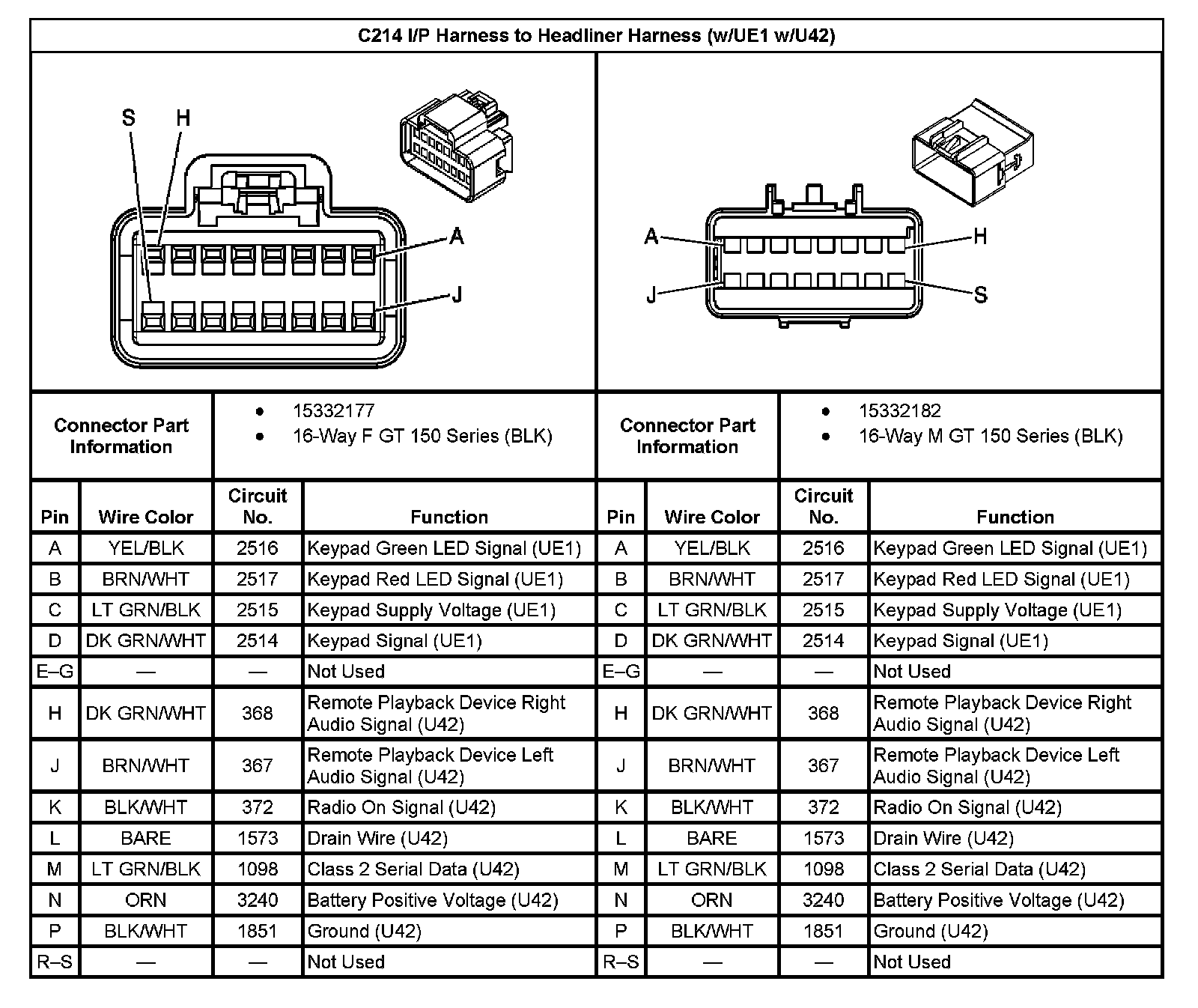

C214 I/P Harness To Headliner Harness (With RPO Code UE1, U42):
C214 I/P Harness To Headliner Harness (With RPO Code UE1 Without RPO Code U42):
