HVAC Control Assembly - Front Auxiliary - With A/C
HVAC Control Assembly - Front Auxiliary - With A/C

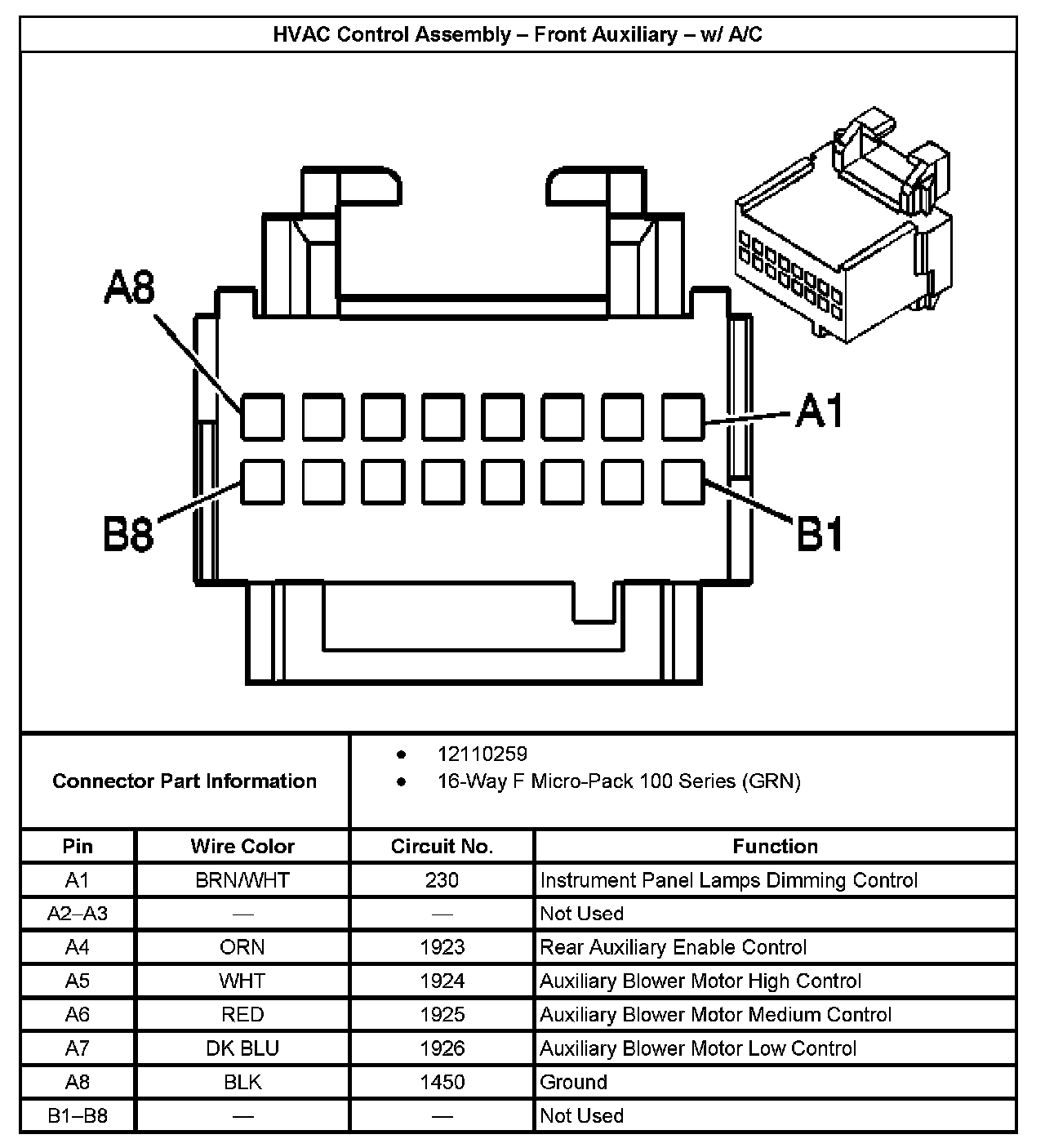

HVAC Control Assembly-Front Auxiliary-With A/C:
