FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
Suburban 1/2 Ton 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Audio Amplifier C2
>>
With RPO Code UQ7 Without RPO Code Y91
With RPO Code UQ7 Without RPO Code Y91

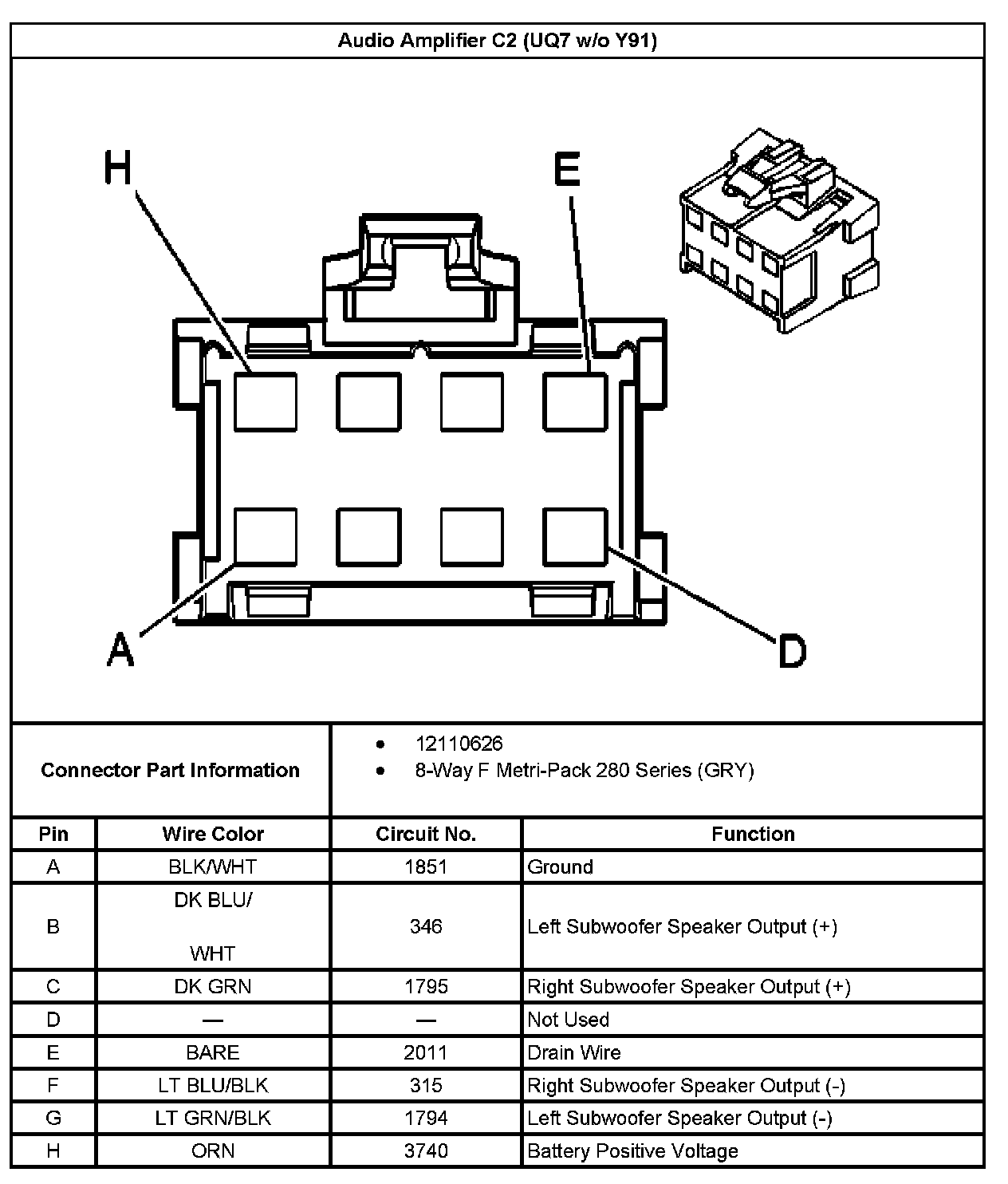

Audio Amplifier C2 (With RPO Code UQ7 Without RPO Code Y91):
