Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Testing and Inspection >> Component Tests and General Diagnostics >> Brake Assist System Diagnosis >> Vacuum Assist

Vacuum Assist

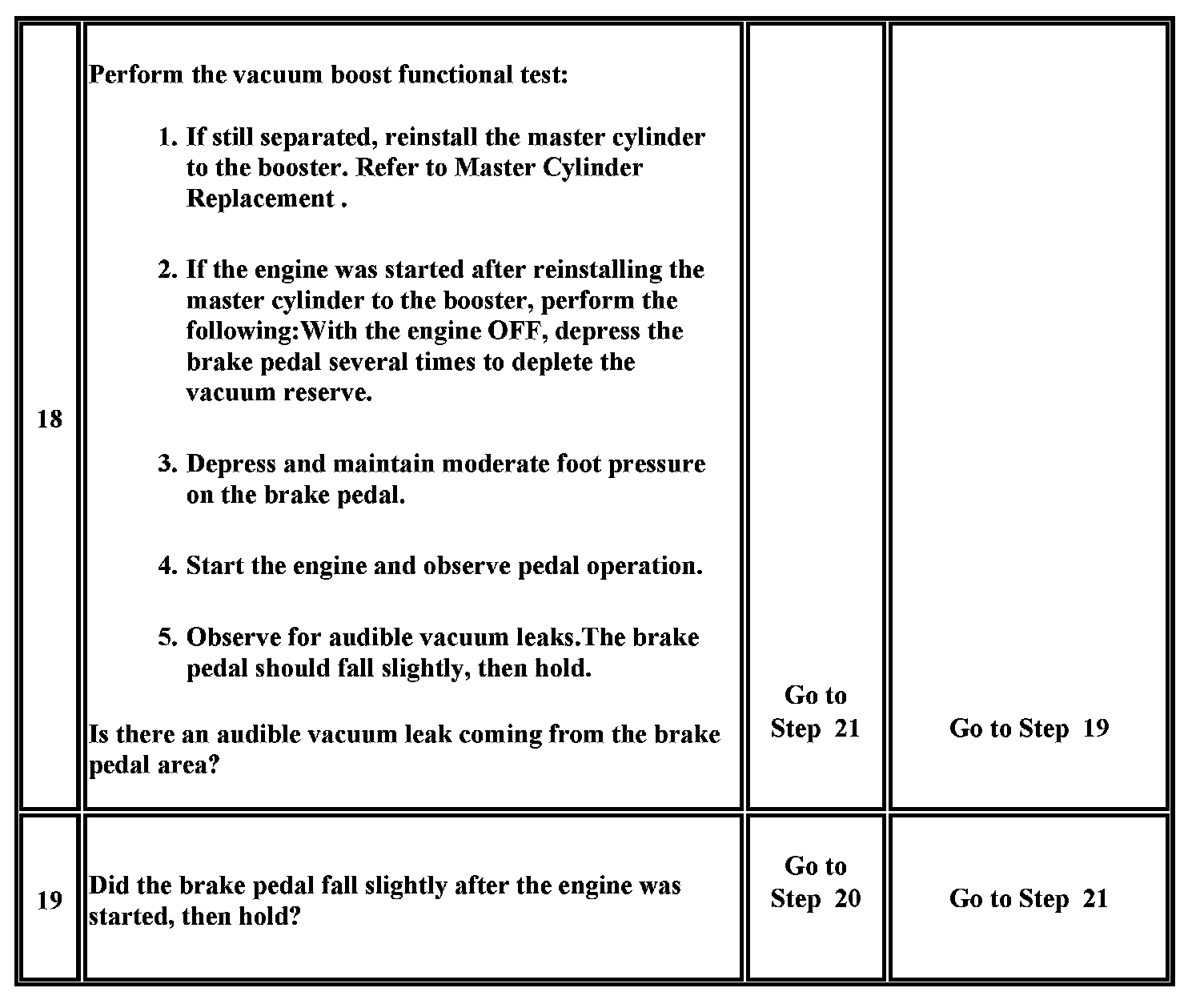

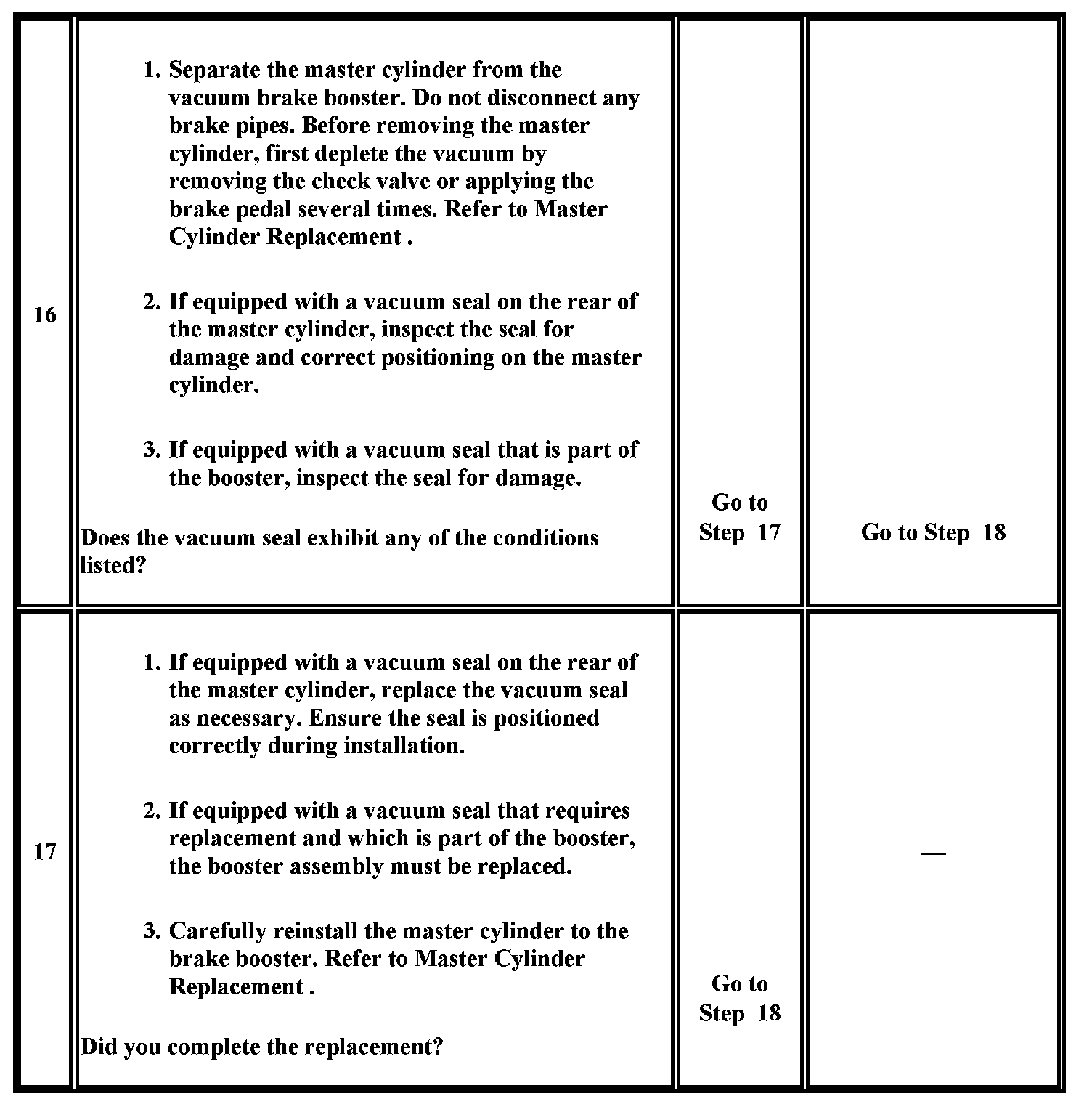

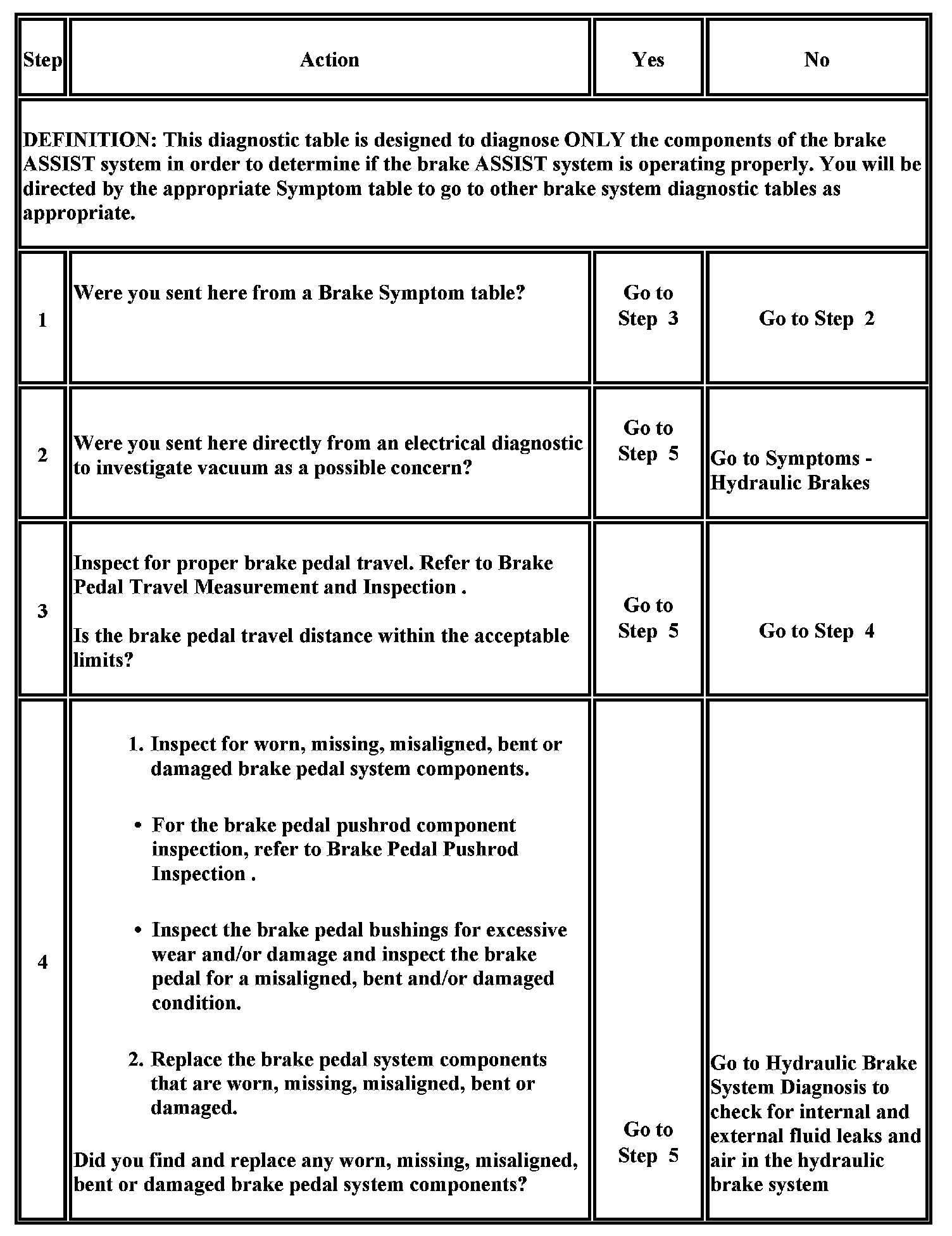

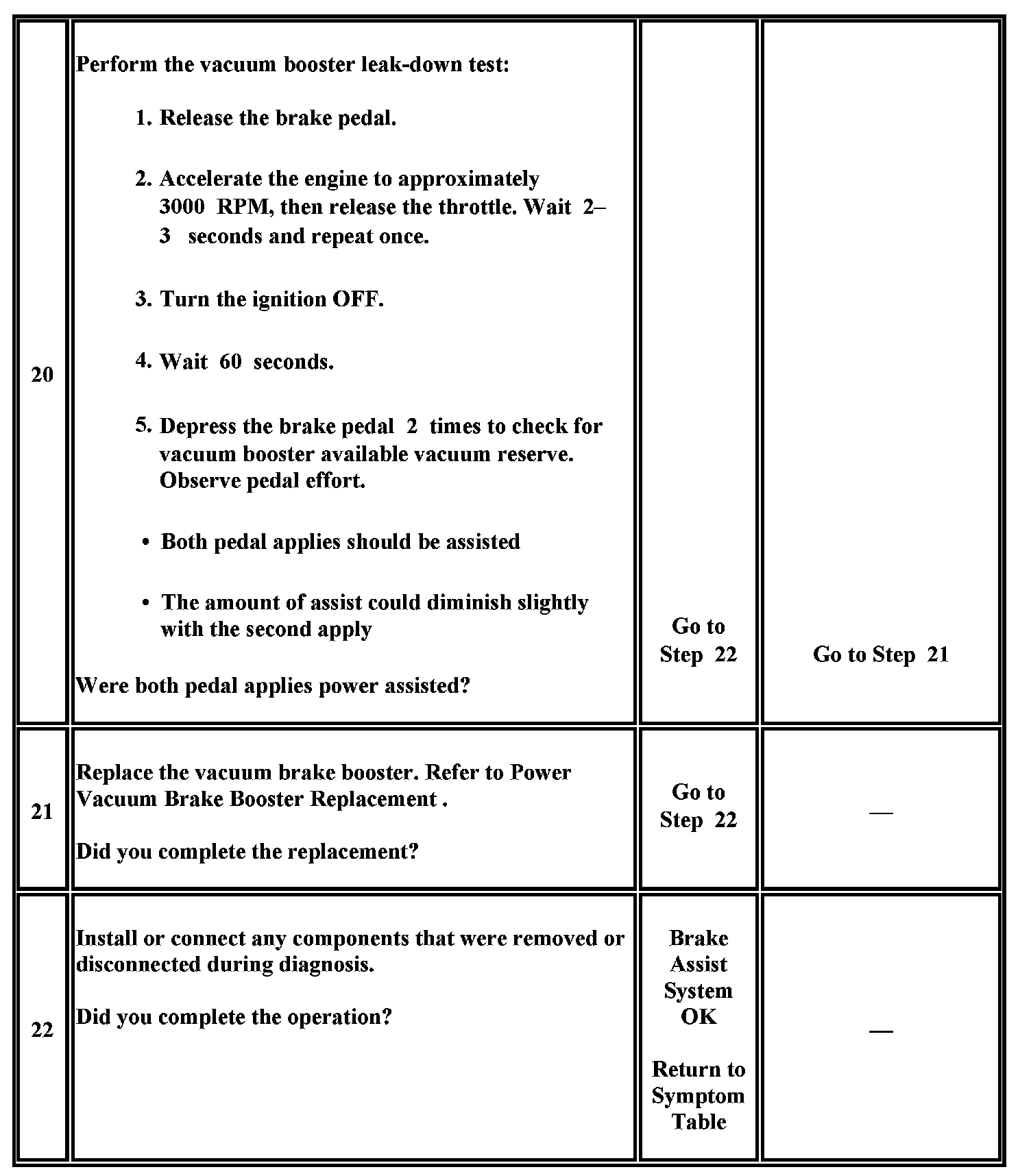

Brake Assist System Diagnosis (Vacuum Assist)
