Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls >> Without RPO JL4 or NW7

Without RPO JL4 or NW7

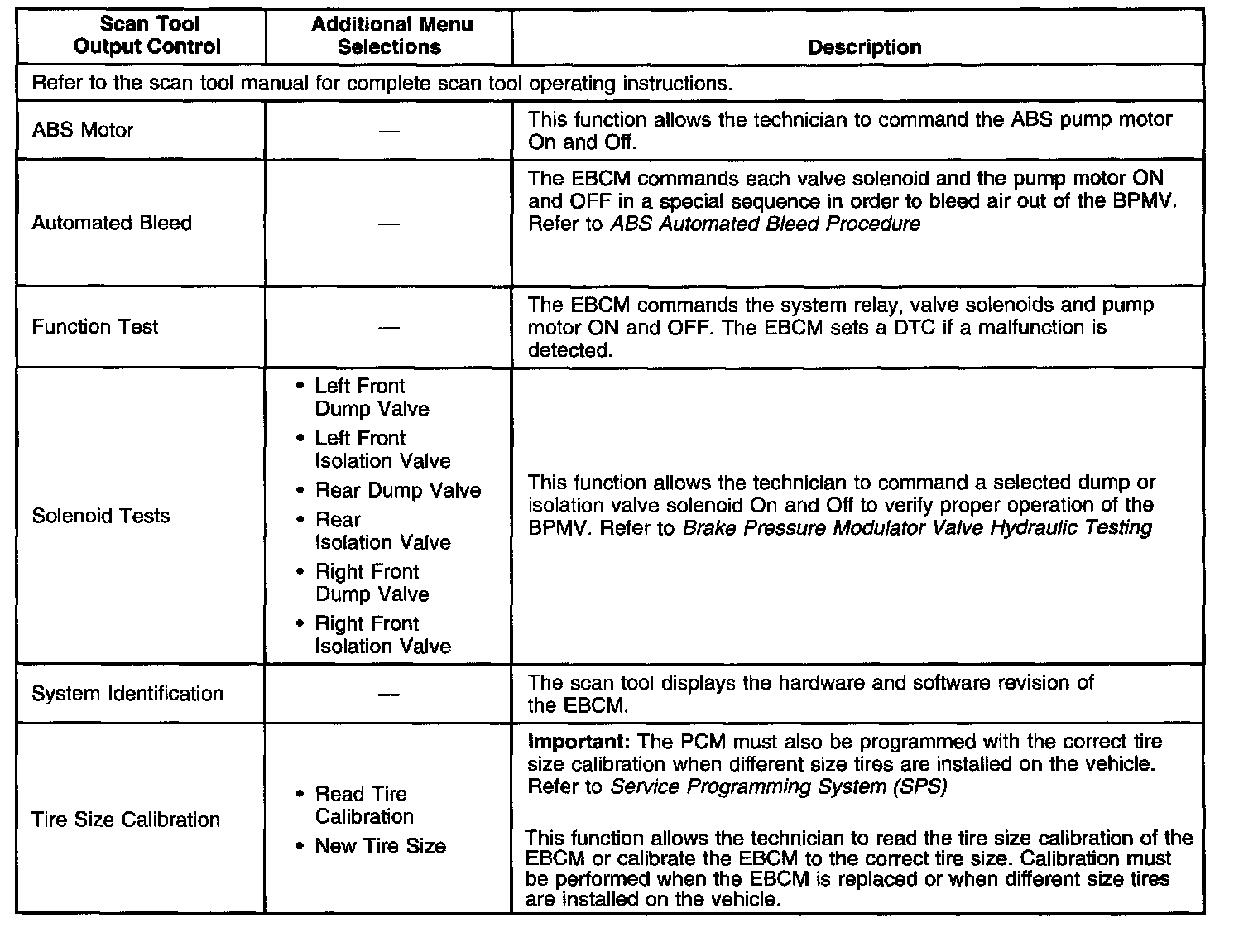

Scan Tool Output Controls (W/O JL4 or NW71)
