Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Heated/Cooled Seats Inoperative

Heated/Cooled Seats Inoperative

Steps 1-11:

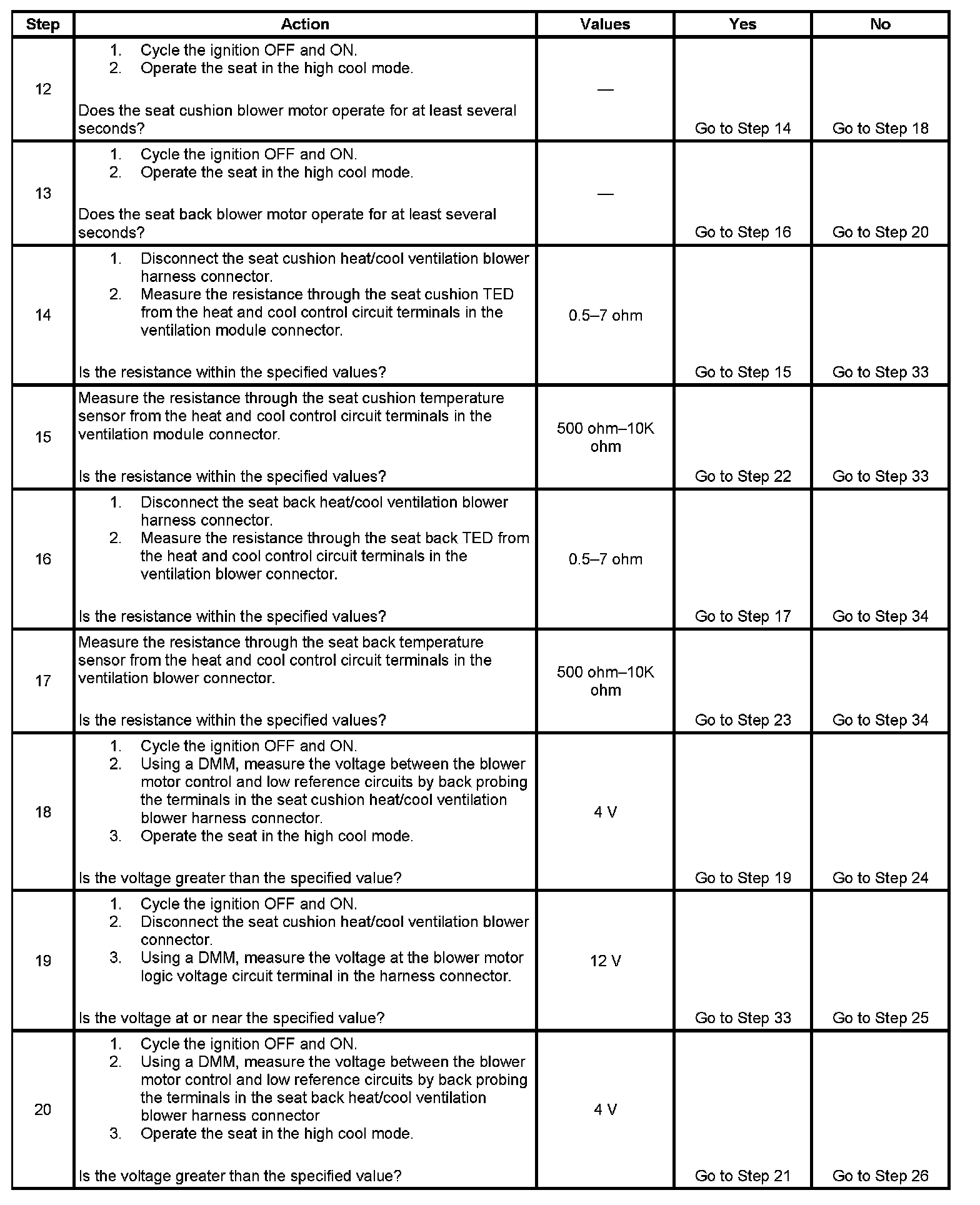

Steps 12-20:



Steps 21-32:



Steps 33-39:
