Electrical Diagrams

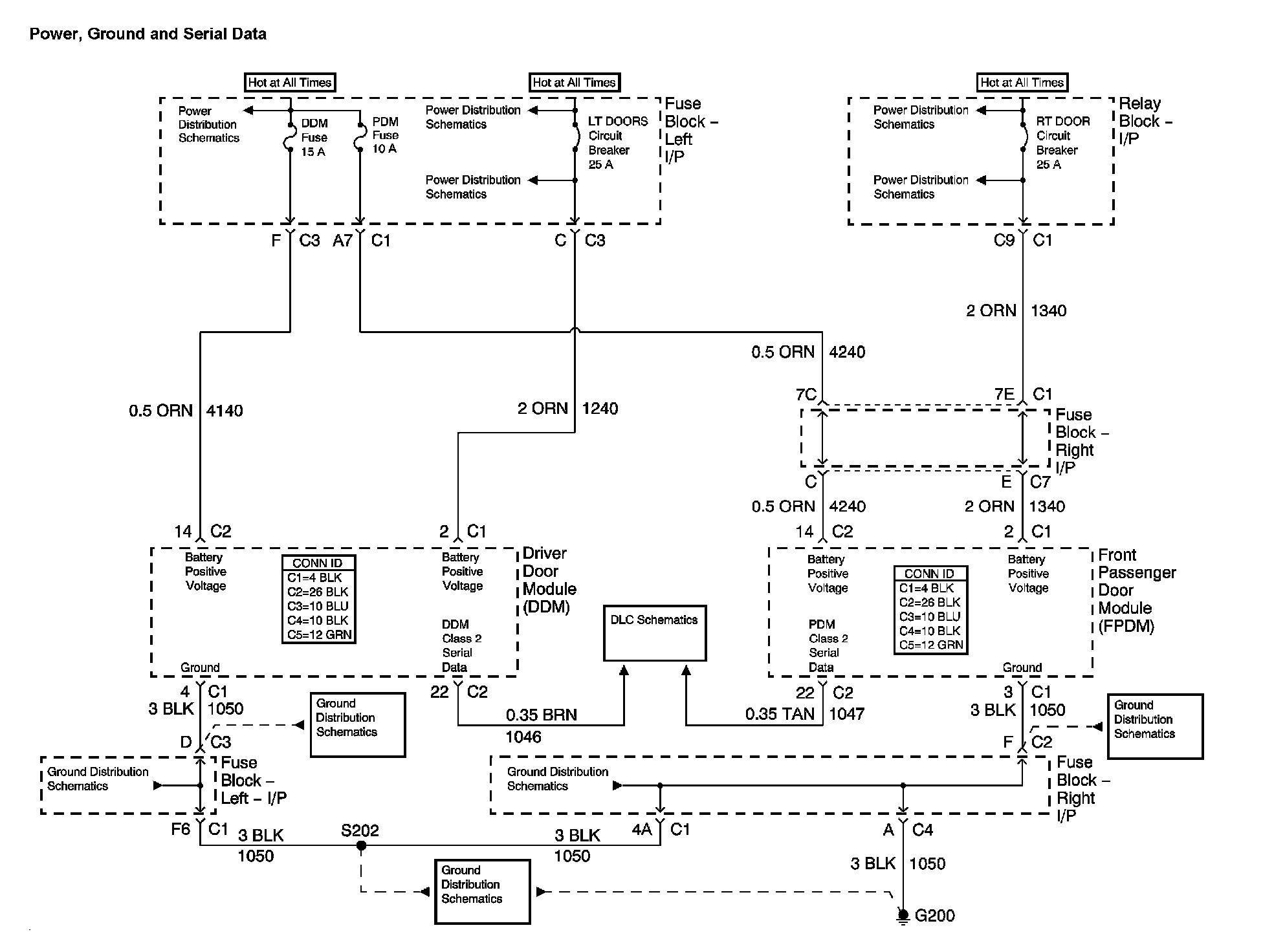

Door Control Module Diagram 1:

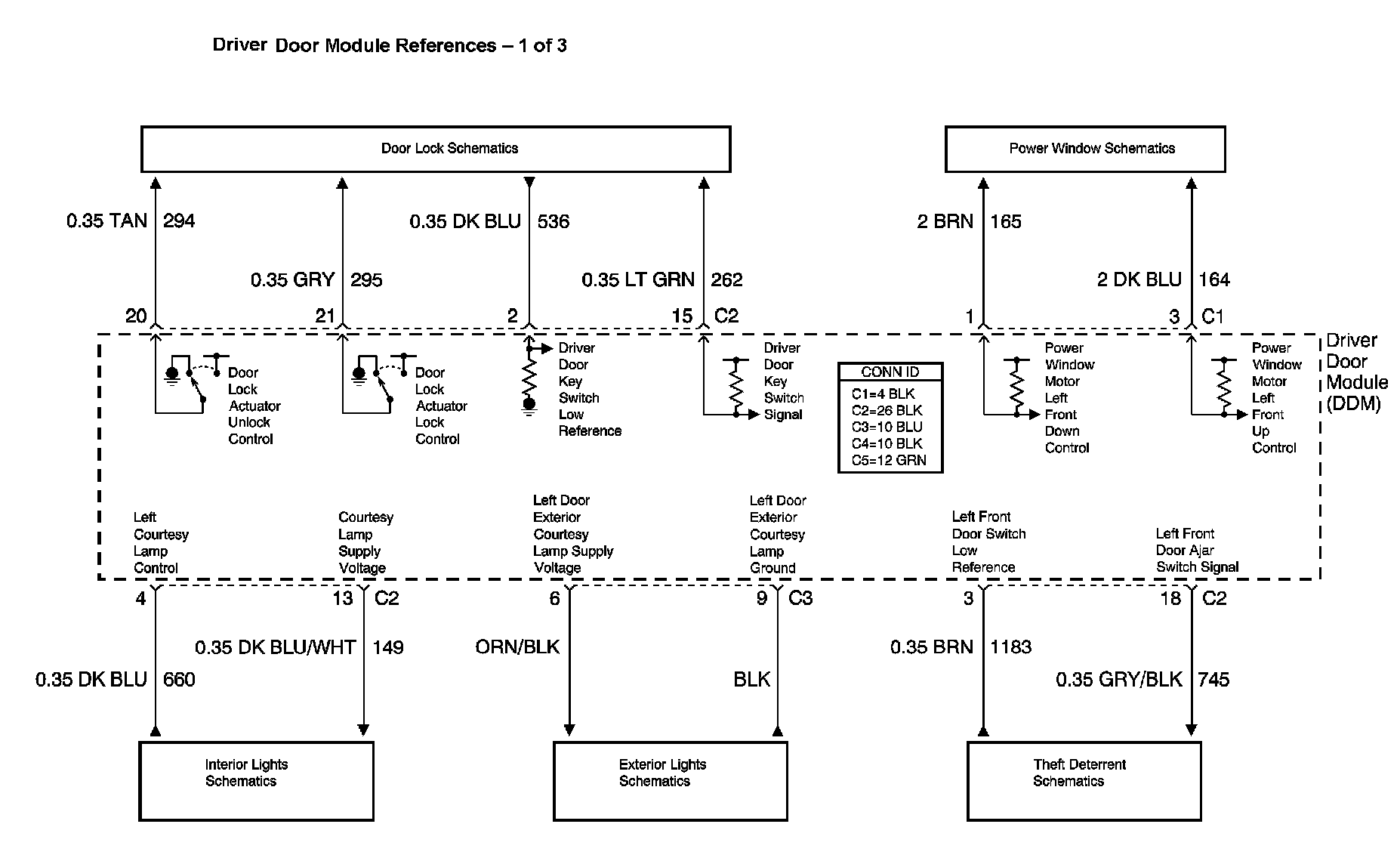

Door Control Module Diagram 2 (1of 3):

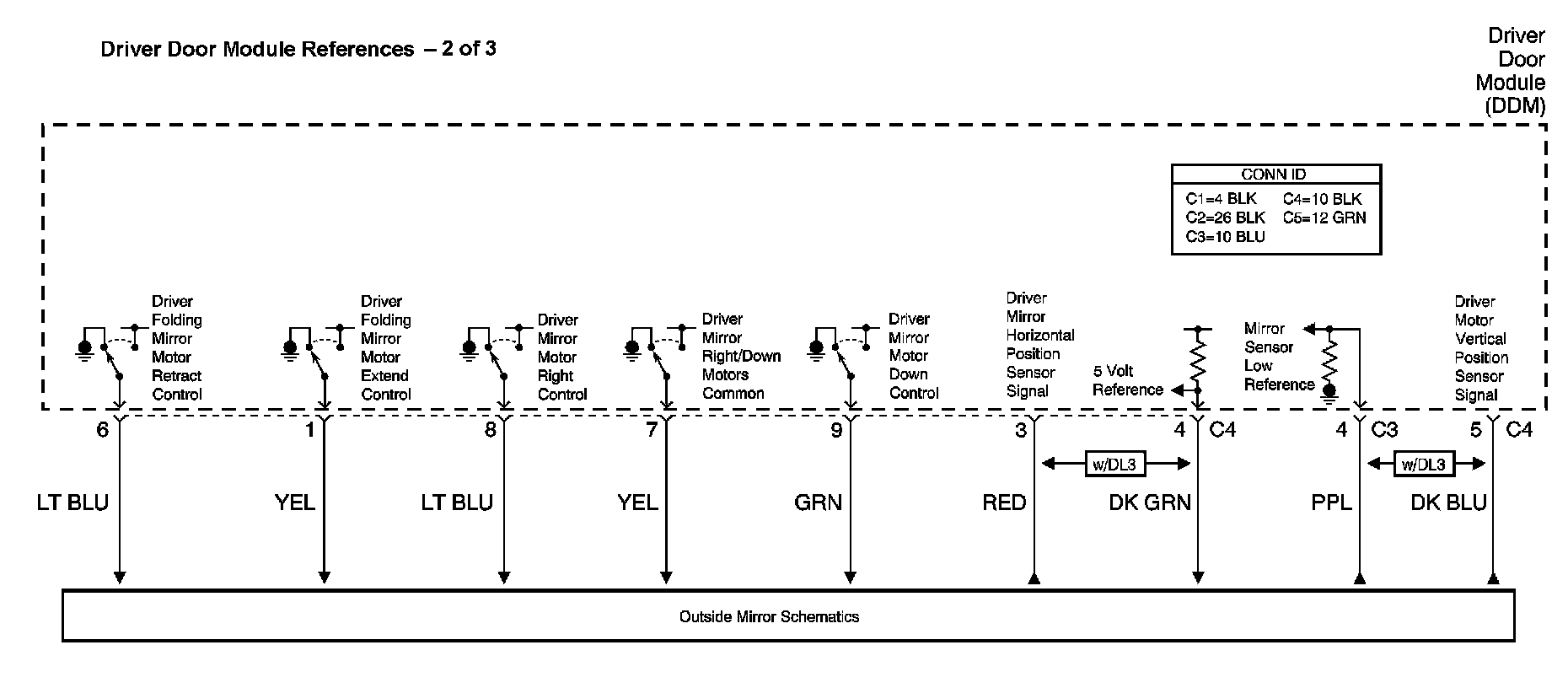

Door Control Module Diagram 2(2 Of 3):

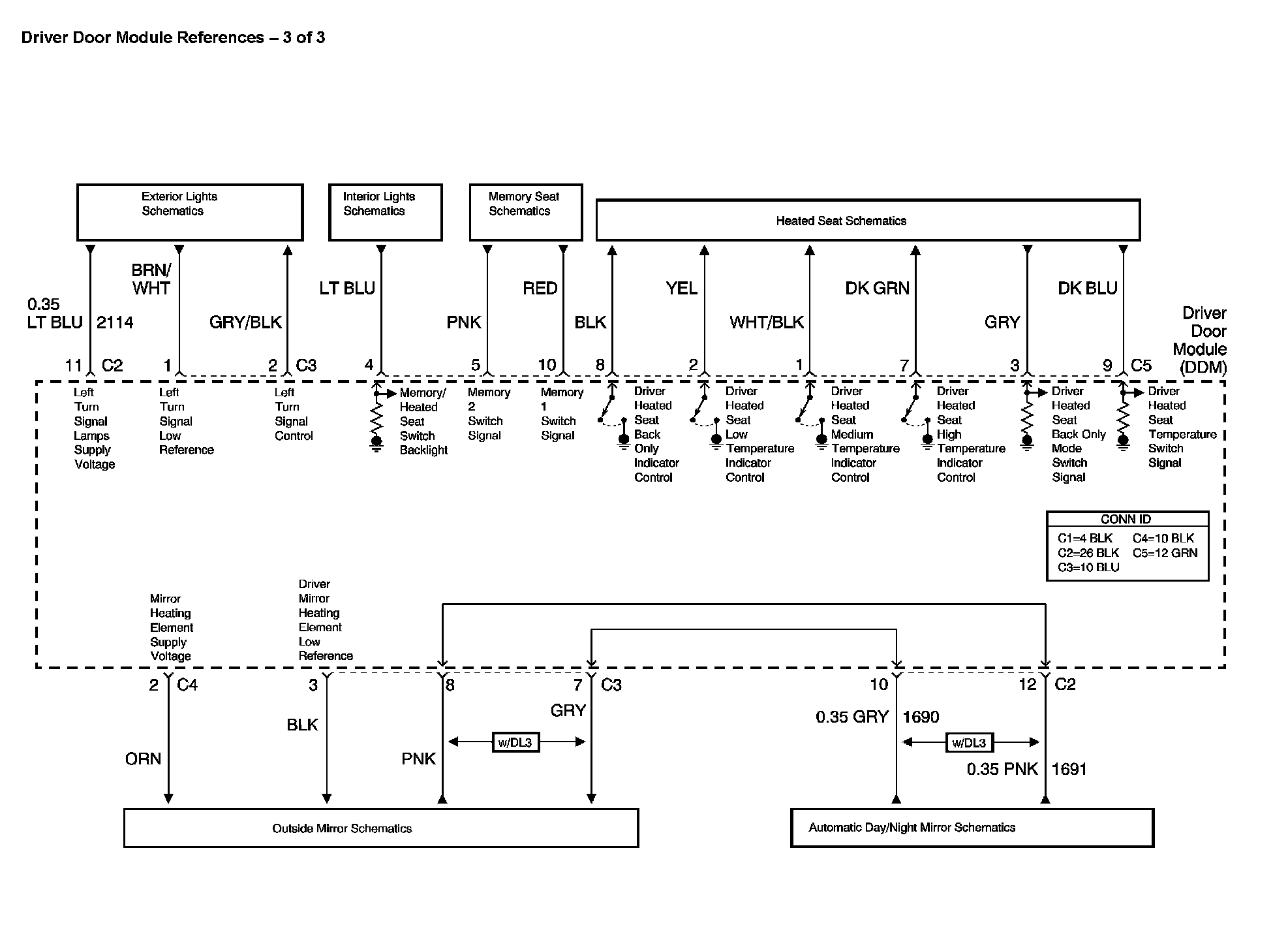

Door Control Module Diagram 2 (3 Of 3):

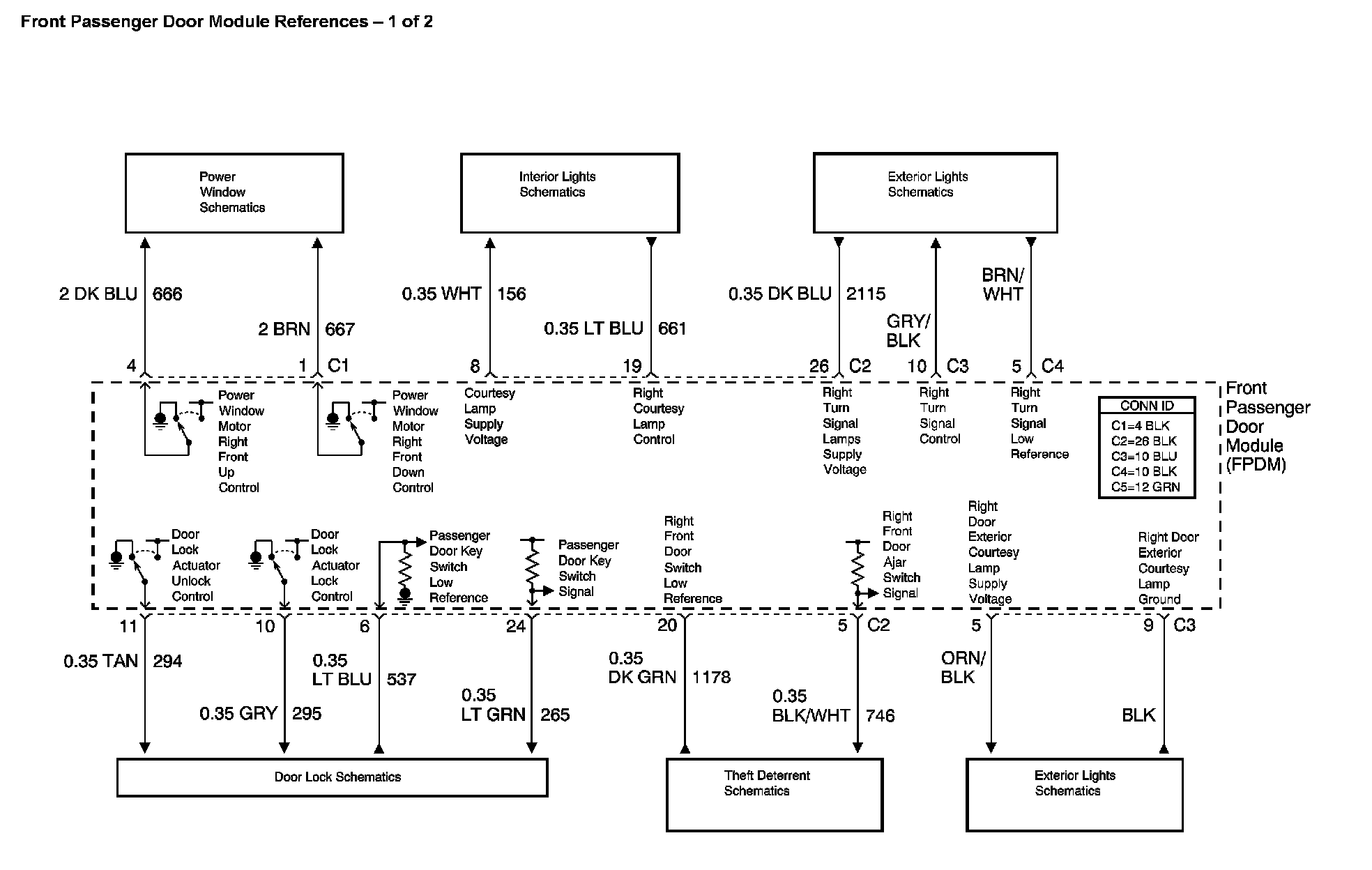

Door Control Module Diagram 3 (1 Of 2):

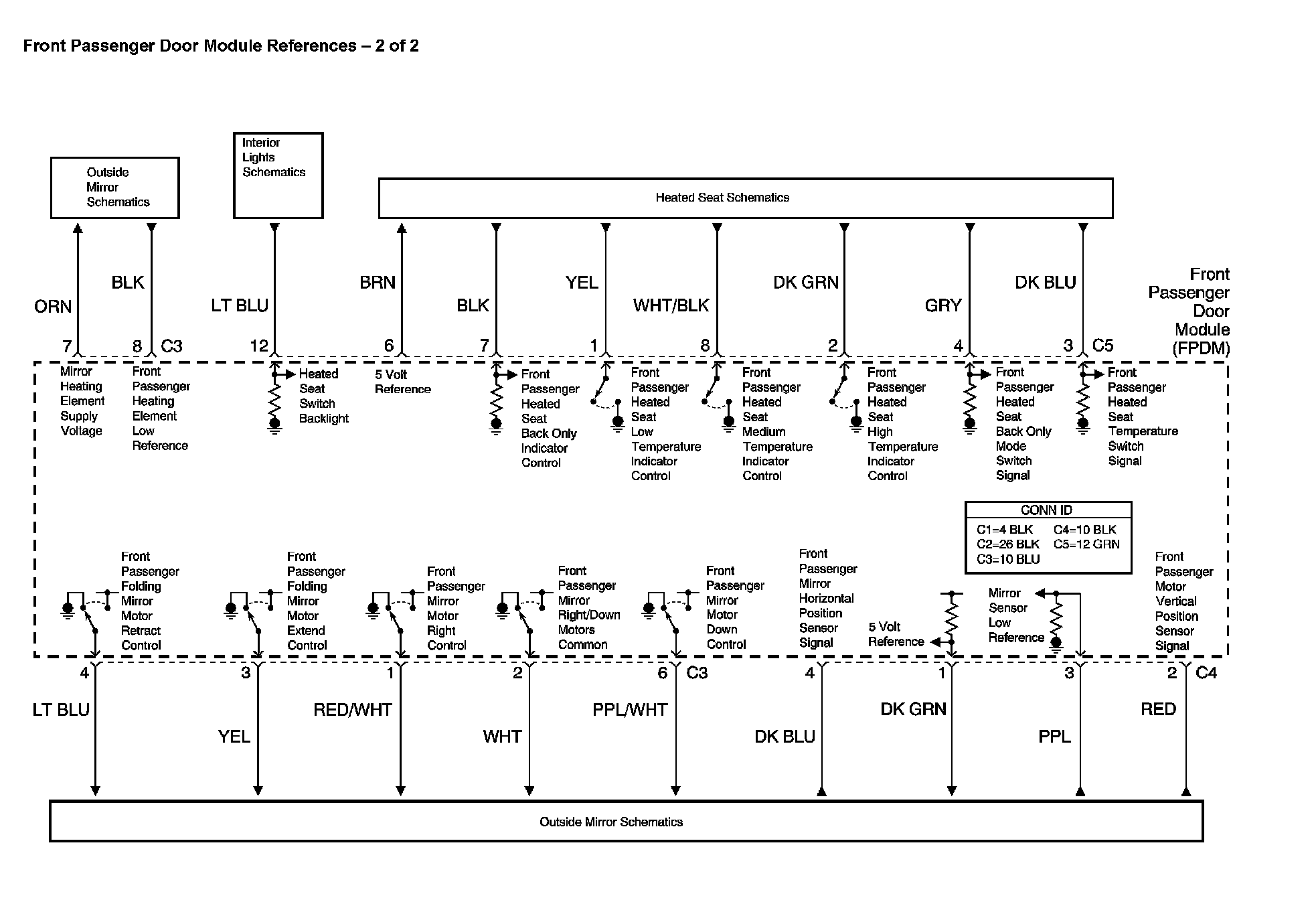

Door Control Module Diagram 3 (2 Of 2):
